Today, I am going to show you how to step by step transfer FSMO roles to new domain controller server, and transfer time server role from the old domain controller to new domain controller.

Today, I am going to show you how to step by step transfer FSMO roles to new domain controller server, and transfer time server role from the old domain controller to new domain controller.

In my case, the old DC server is DC02 and new server is DC01.

Transfer FSMO Role

1.Login to domain controller server.

2.Open an elevated command prompt.

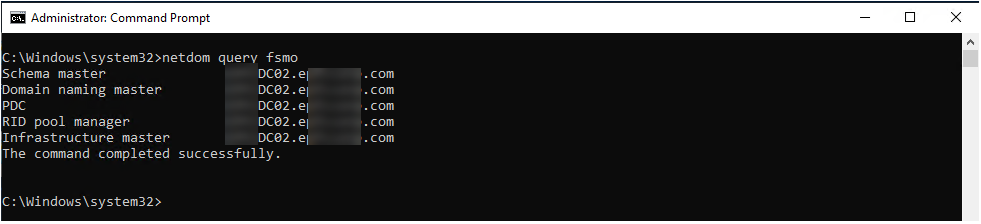

3.Type Following command to verify FSMO roles

netdom query fsmo

101020 0243 HowtoTransf1 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

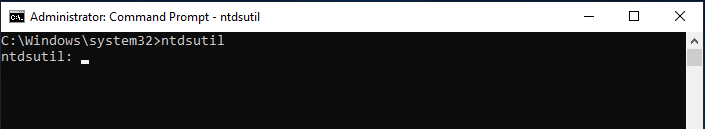

4.Type ntdsutil and press Enter.

101020 0243 HowtoTransf2 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

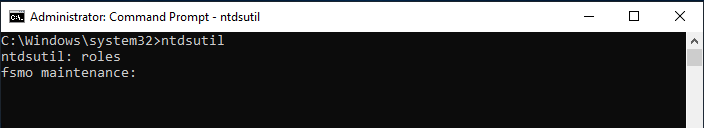

5.At the ntdsutil: prompt, type roles and press Enter.

101020 0243 HowtoTransf3 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

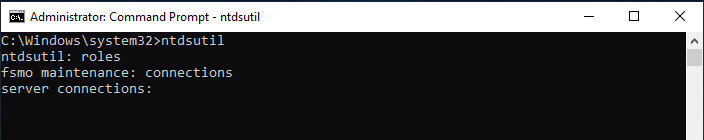

6.At the fsmo maintenance: prompt, type connections and press Enter.

101020 0243 HowtoTransf4 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

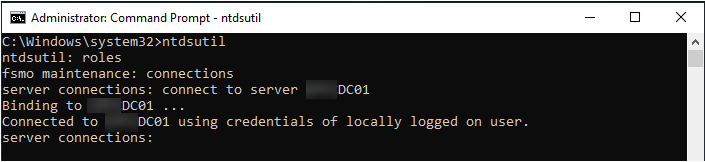

7.At the server connections: prompt, type connect to server DC01 and press Enter.

(DC01 is the new AD DC Roles server)

101020 0243 HowtoTransf5 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

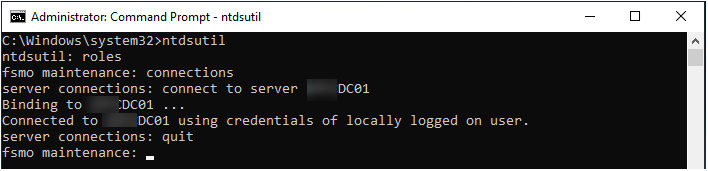

8. At the server connections: prompt, type quit, press Enter.

101020 0243 HowtoTransf6 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

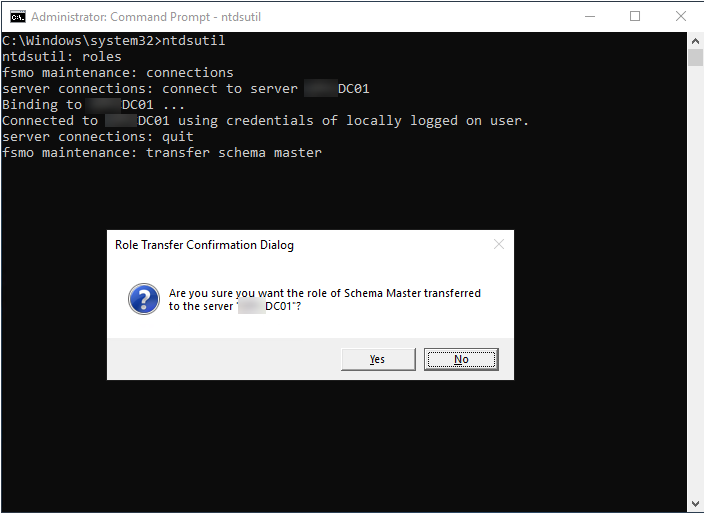

9.At fsmo maintenance: prompt, type transfer schema master and press Enter.

10.On the Role Transfer Confirm Dialog, click Yes.

101020 0243 HowtoTransf7 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

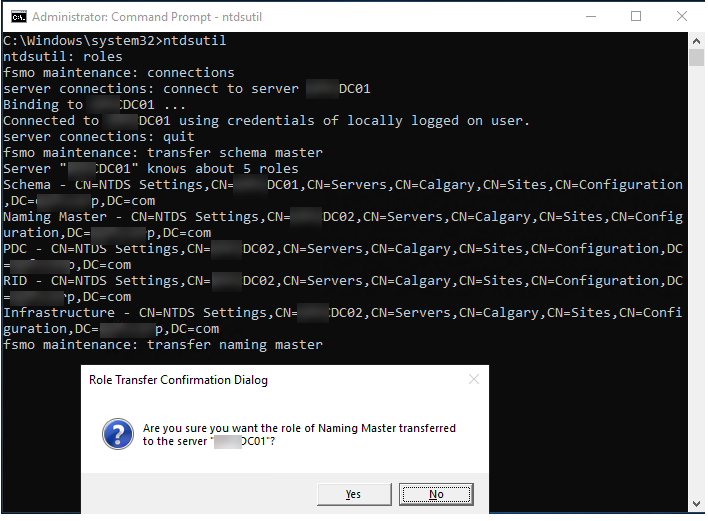

11.At fsmo maintenance: prompt, type transfer naming master and press Enter.

12.On the Role Transfer Confirm Dialog, click Yes.

101020 0243 HowtoTransf8 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

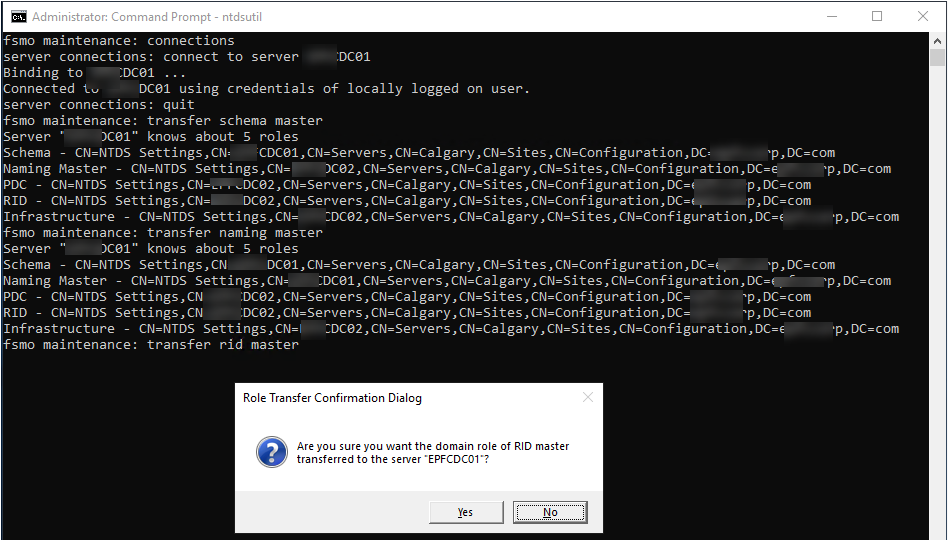

13.At fsmo maintenance: prompt, type transfer rid master and press Enter.

14.On the Role Transfer Confirm Dialog, click Yes.

101020 0243 HowtoTransf9 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

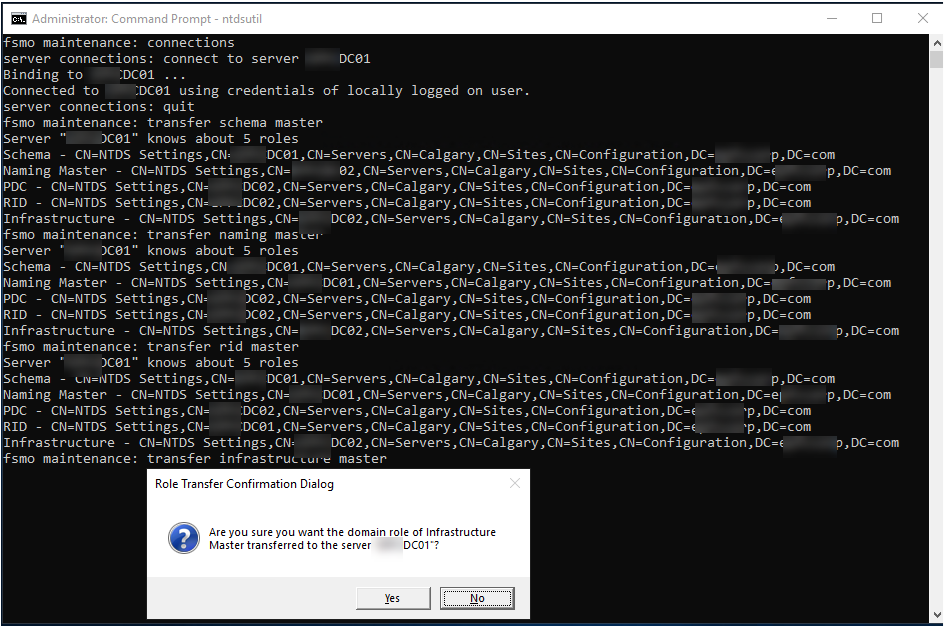

15.At fsmo maintenance: prompt, type transfer infrastructure master and press Enter.

16.On the Role Transfer Confirm Dialog, click Yes.

101020 0243 HowtoTransf10 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

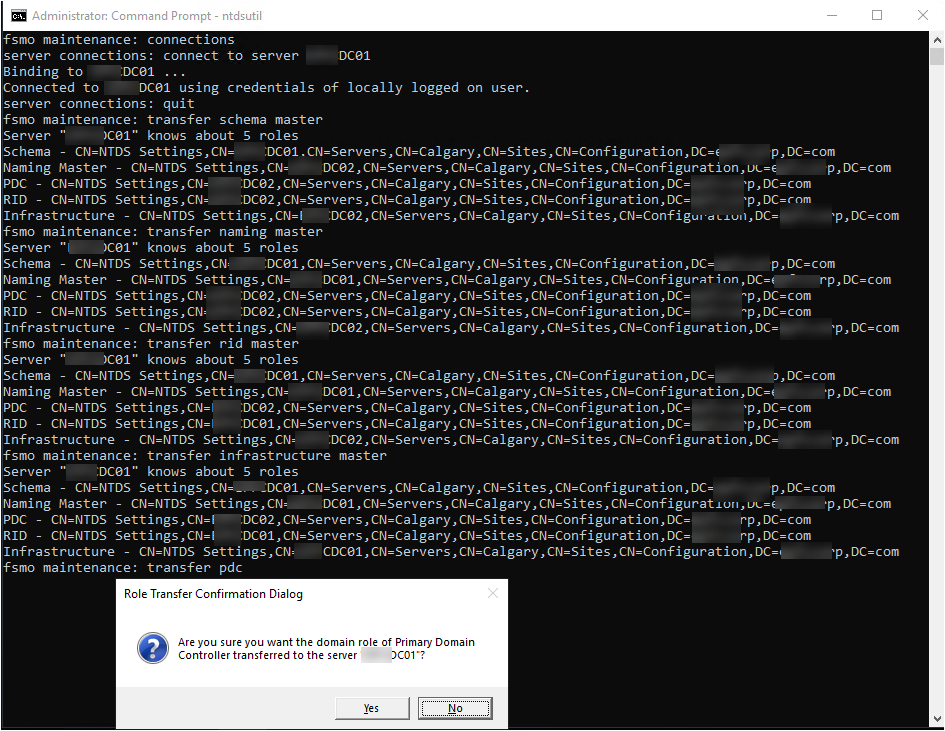

17.t fsmo maintenance: prompt, type transfer PDC and press Enter.

18.On the Role Transfer Confirm Dialog, click Yes.

101020 0243 HowtoTransf11 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

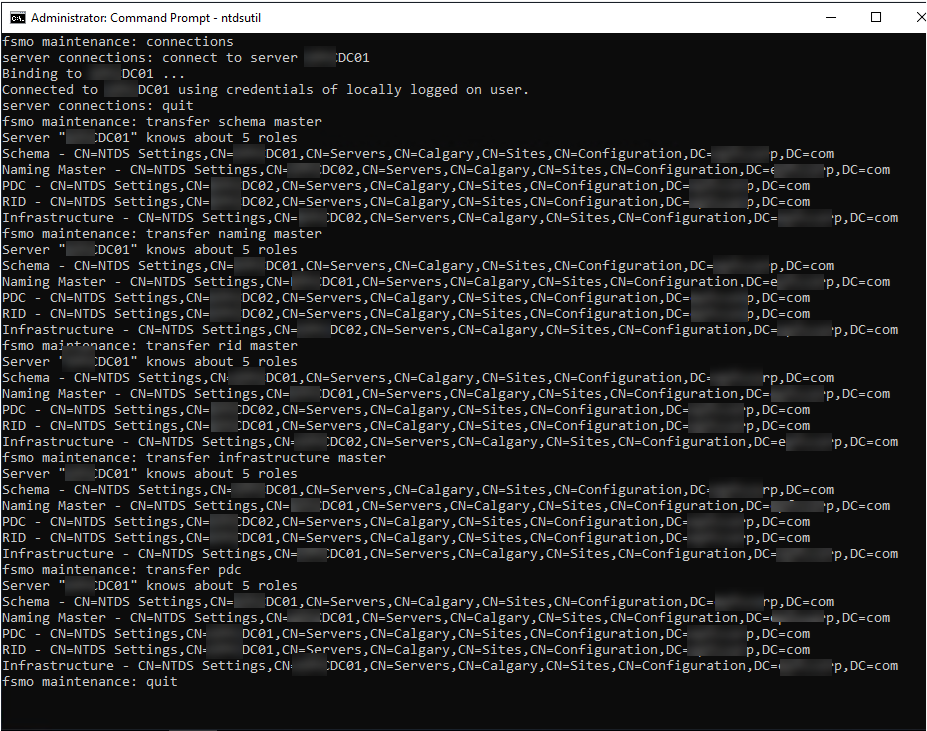

19.At fsmo maintenance: prompt, type quit and press Enter.

101020 0243 HowtoTransf12 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

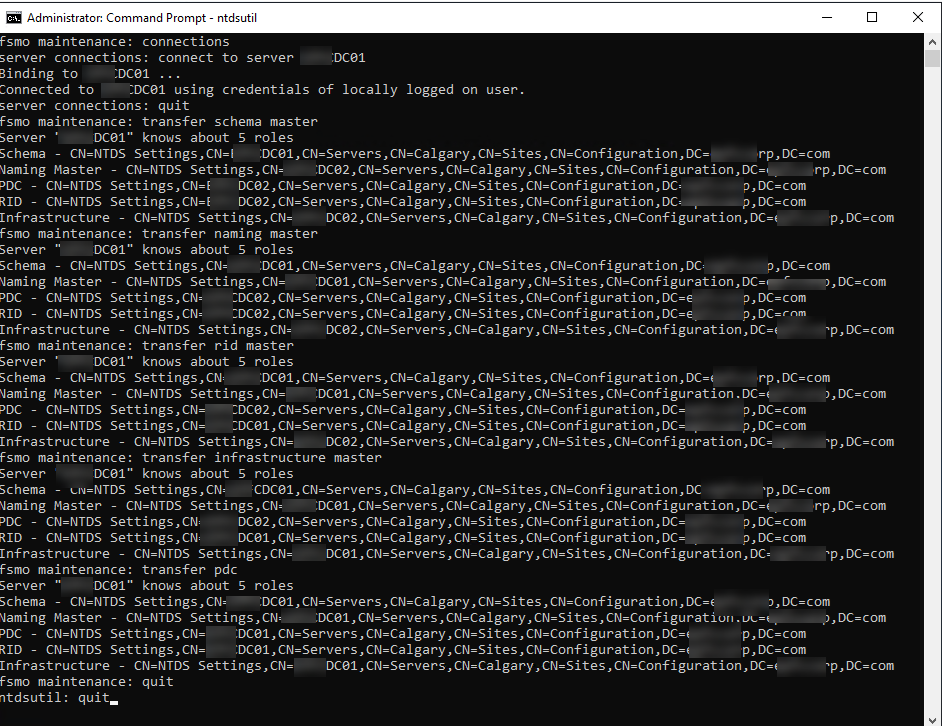

20.At ntdsutil prompt, type quit and press Enter.

101020 0243 HowtoTransf13 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

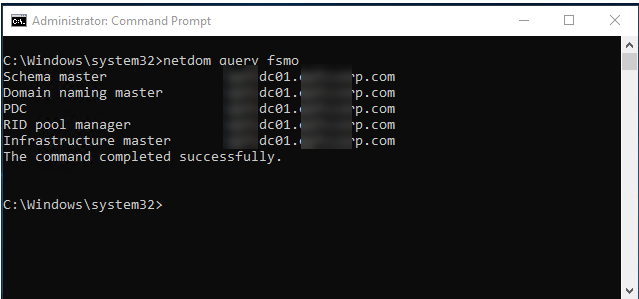

21.Type netdom query fsmo command to verify fsmo roles.

101020 0243 HowtoTransf14 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

Transfer Time Server to another Domain controller

1.Login to the old PDC domain controller server.

2.Open an elevated command prompt.

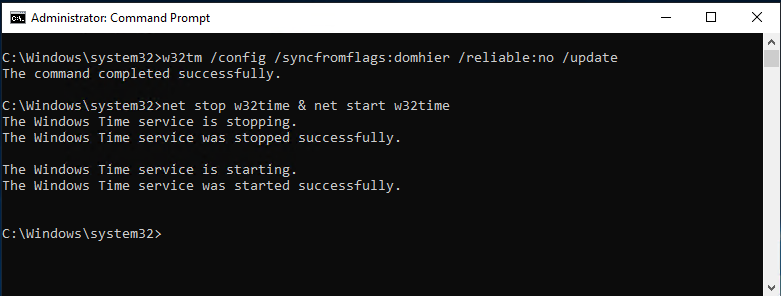

3.Run following command to stop as time server and sync with new time server and remove this DC a reliable time source for the clients.

w32tm /config /syncfromflags:domhier /reliable:no /update

net stop w32time & net start w32time

101020 0243 HowtoTransf15 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

4.Login to the new PDC domain controller server.

5.Open an elevated command prompt.

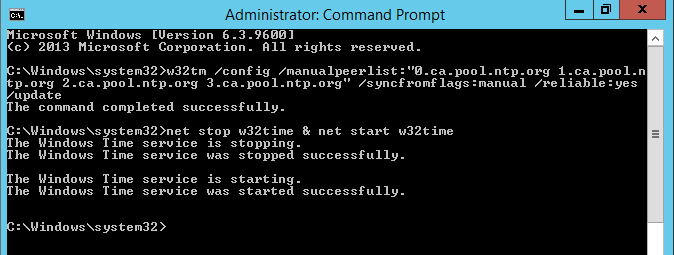

6.Run following command to sync with NTP servers and make this DC a reliable time source for the clients.

w32tm /config /manualpeerlist:”0.ca.pool.ntp.org 1.ca.pool.ntp.org 2.ca.pool.ntp.org 3.ca.pool.ntp.org” /syncfromflags:manual /reliable:yes /update

net stop w32time & net start w32time

101020 0243 HowtoTransf16 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

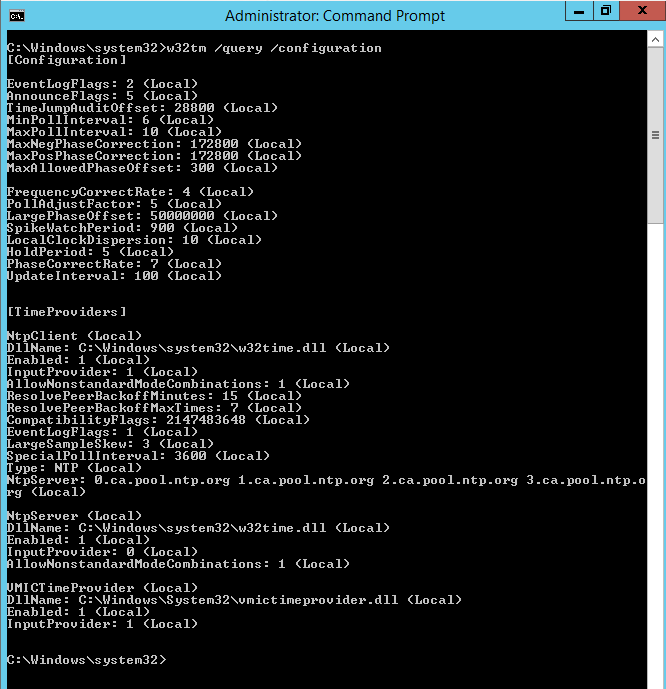

7.Run following command to verify configuration.

w32tm /query /configuration

101020 0243 HowtoTransf17 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

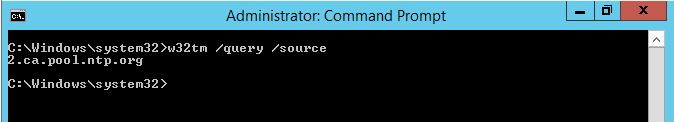

w32tm /query /source

101020 0243 HowtoTransf18 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

w32tm /query /peers

101020 0243 HowtoTransf19 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller

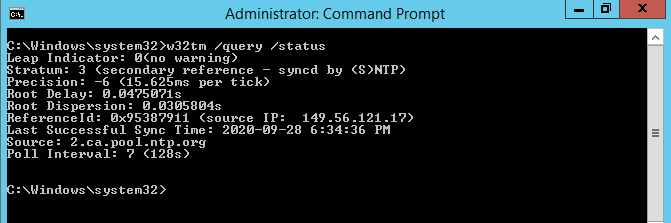

w32tm /query /status

101020 0243 HowtoTransf20 - How to Transfer FSMO Roles and Time Server Roles to new Domain Controller
