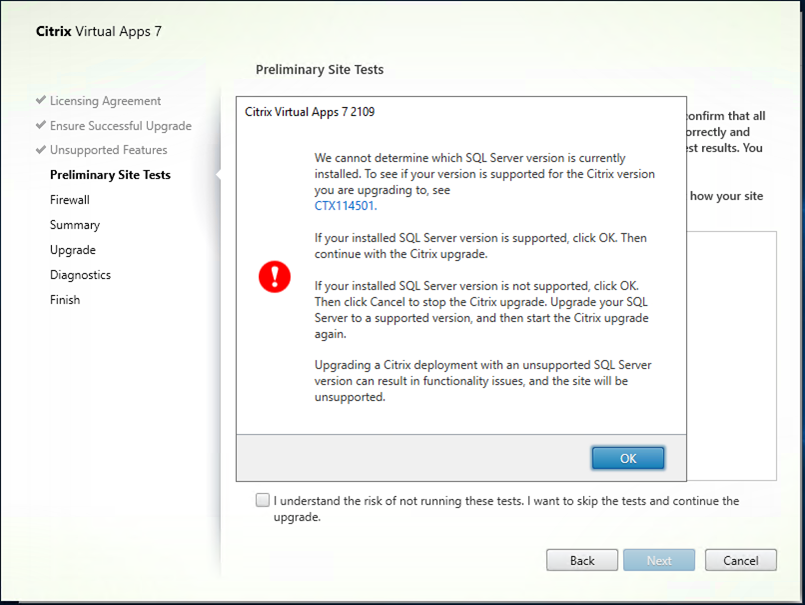

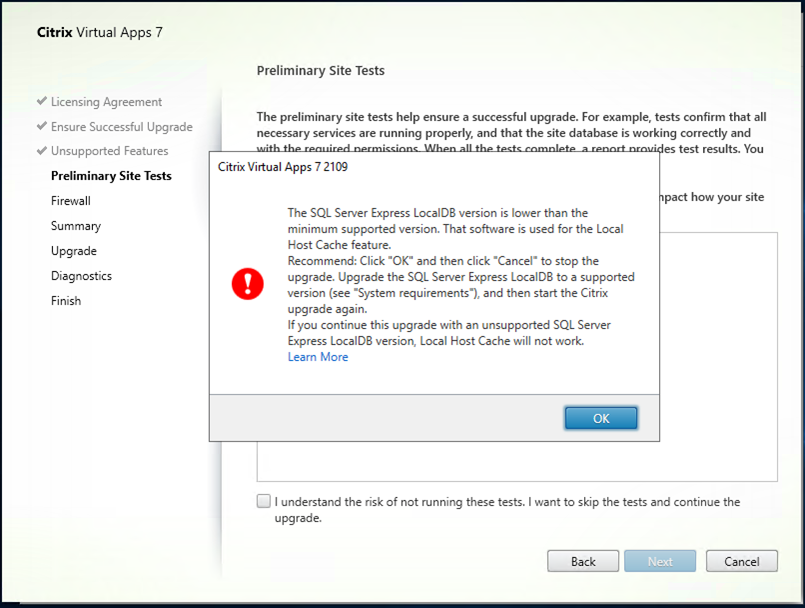

If you would like to upgrade Citrix Virtual Apps server from Citrix Virtual Apps 7 1912 LTSR version to the newer version, it might happen error messages "We cannot determine which SQL Server version is current installed" and "The SQL Server LocalDB version is lower than the minimum supported version".

If you would like to upgrade Citrix Virtual Apps server from Citrix Virtual Apps 7 1912 LTSR version to the newer version, it might happen error messages “We cannot determine which SQL Server version is current installed” and “The SQL Server LocalDB version is lower than the minimum supported version”.

011122 0105 Howtoreplac1 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

011122 0105 Howtoreplac2 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

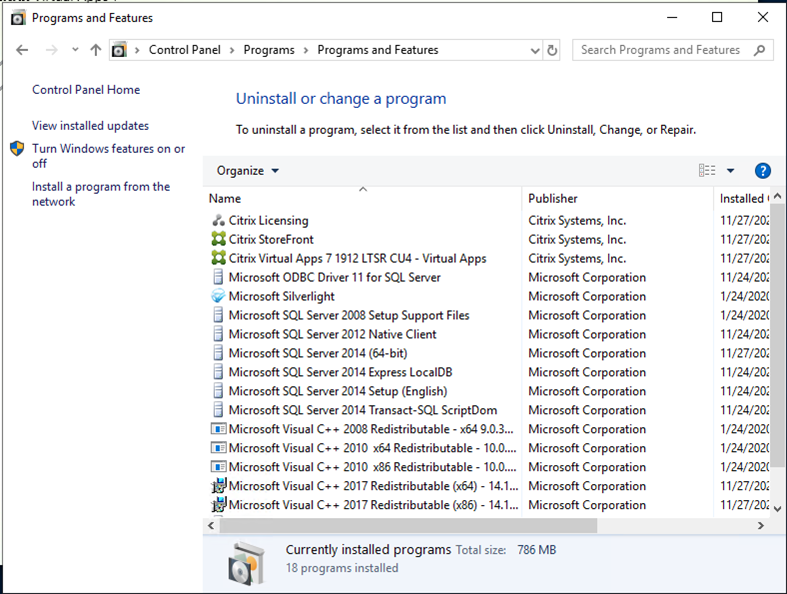

This is because the server was upgrade from XenApp to Virtual Apps, the SQL Server Express version is 2014.

011122 0105 Howtoreplac3 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

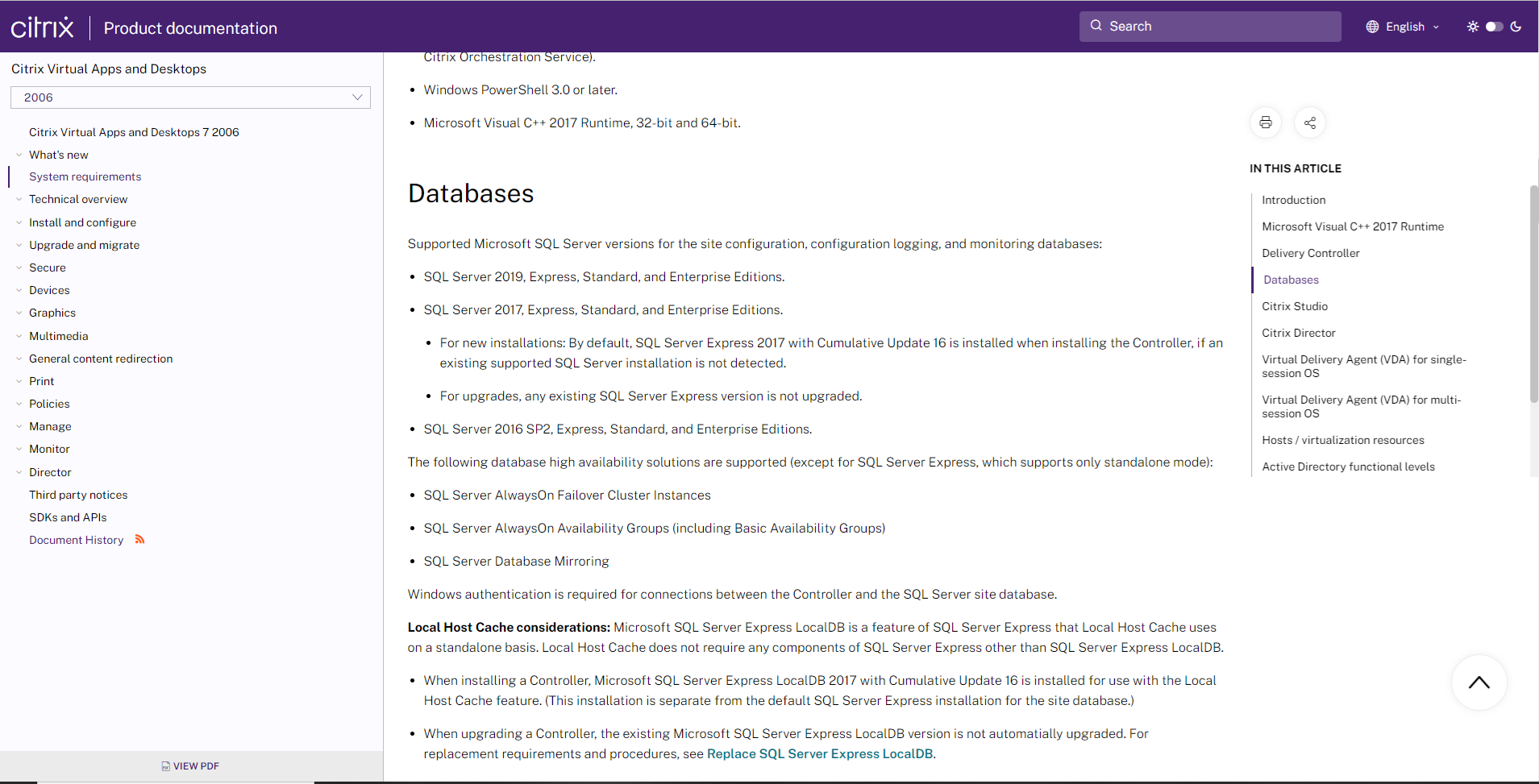

As we know, the SQL Express 2014 is not longer support after Virtual Apps 7 1912 LTSR version.

011122 0105 Howtoreplac4 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

Today, I am going to show you how to replace SQL Server Express LocalDB to the newest version.

1.Login to Virtual Apps delivery Controller server.

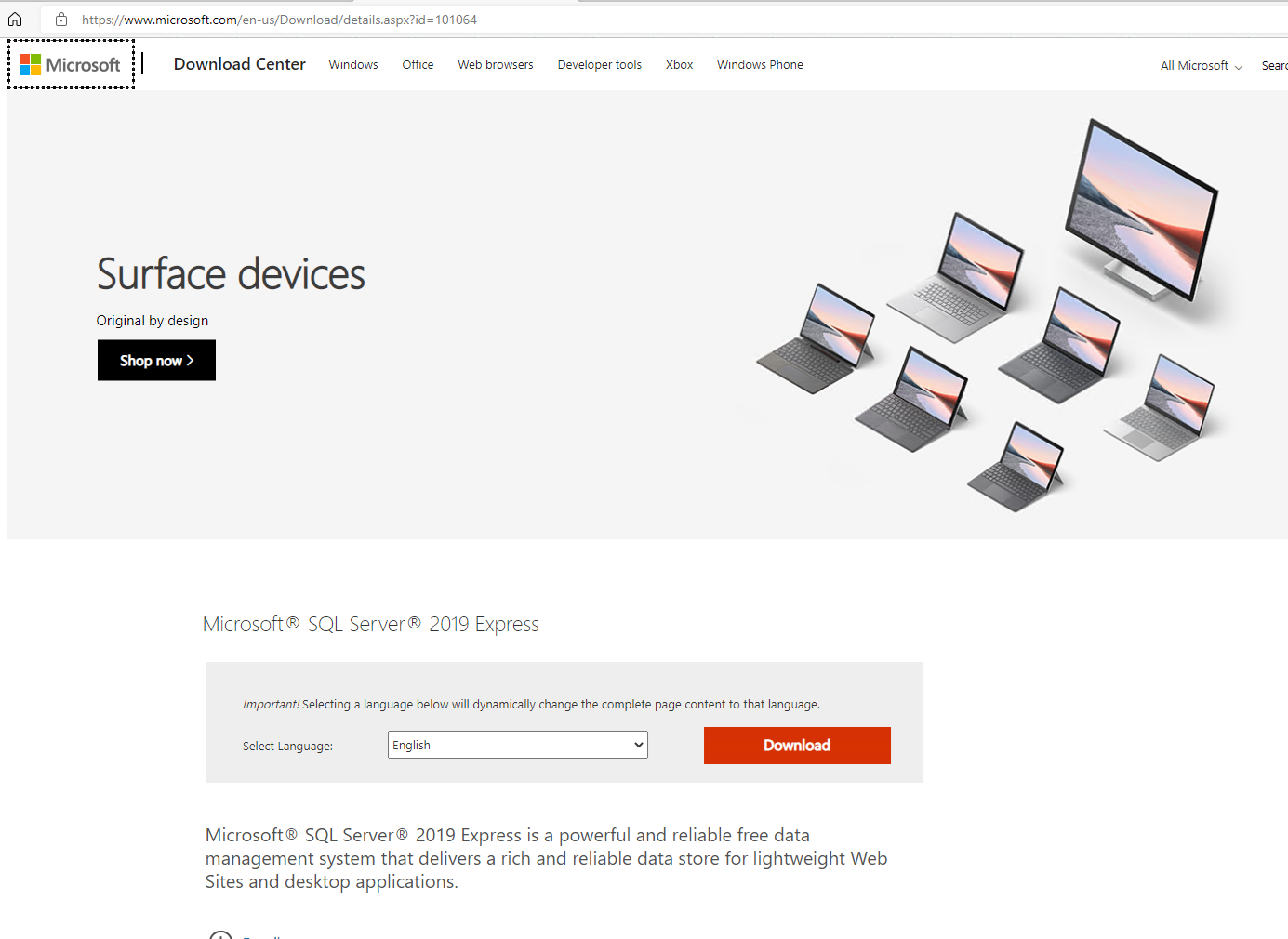

2.Download Microsoft SQL Server 2019 Express via below link.

https://www.microsoft.com/en-us/download/details.aspx?id=101064

011122 0105 Howtoreplac5 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

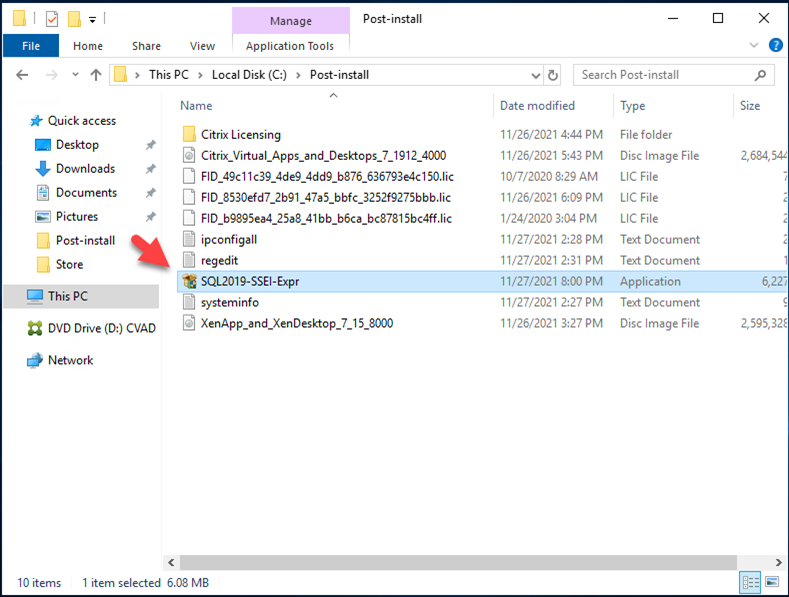

3.Run SQL2019-SSEI-Expr.exe file.

011122 0105 Howtoreplac6 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

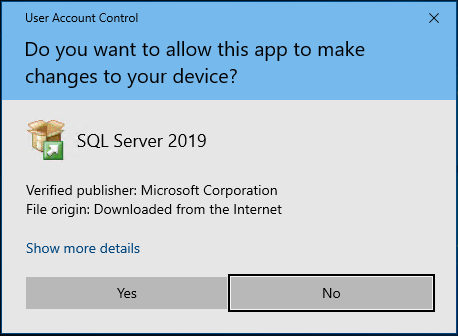

4.On the User Account Control page, click Yes.

011122 0105 Howtoreplac7 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

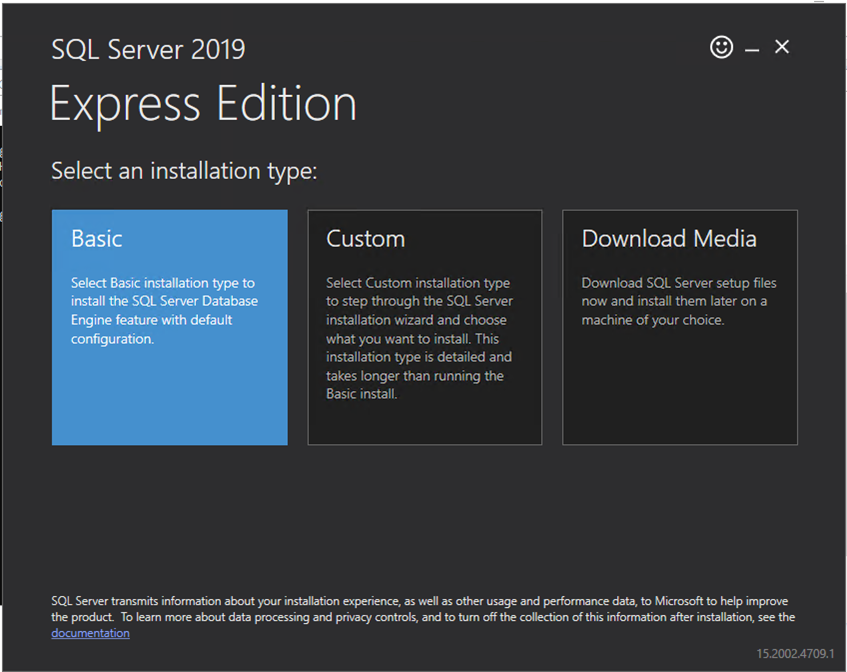

5.On the Select an installation type page, click Basic.

011122 0105 Howtoreplac8 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

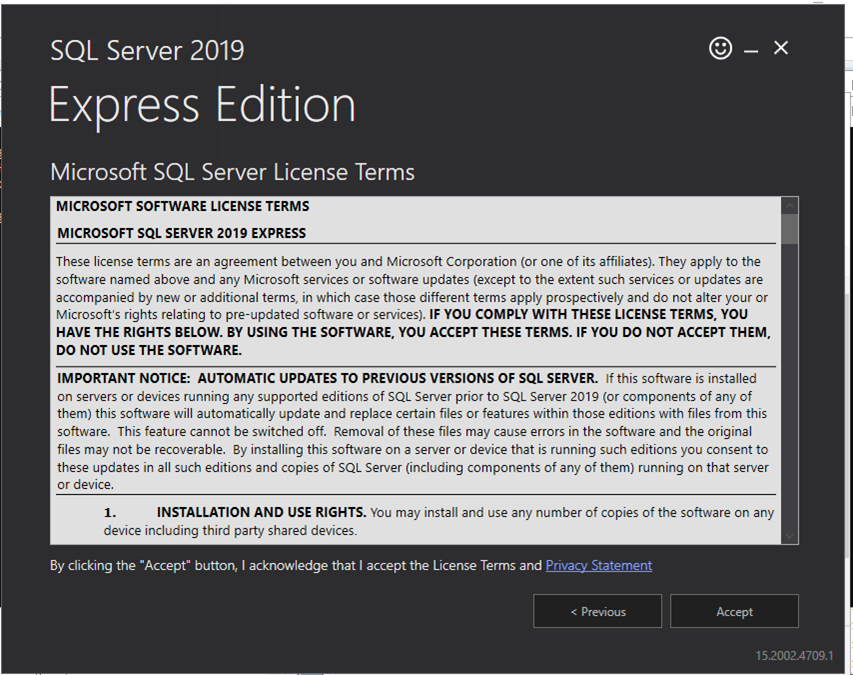

6.On the Microsoft SQL Server License Terms page, click Accept.

011122 0105 Howtoreplac9 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

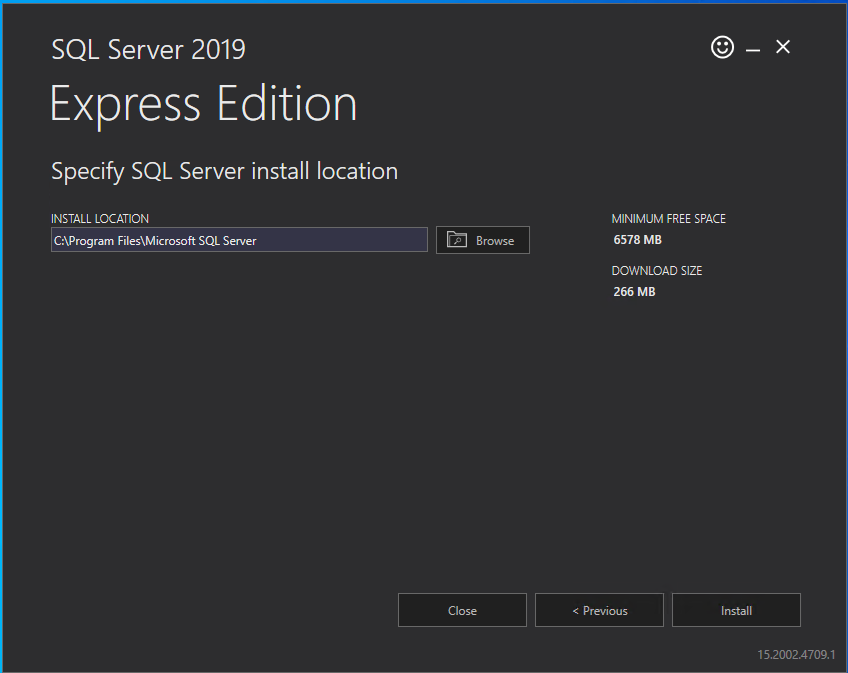

7.On the Specify SQL Server install location page, click Install.

011122 0105 Howtoreplac10 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

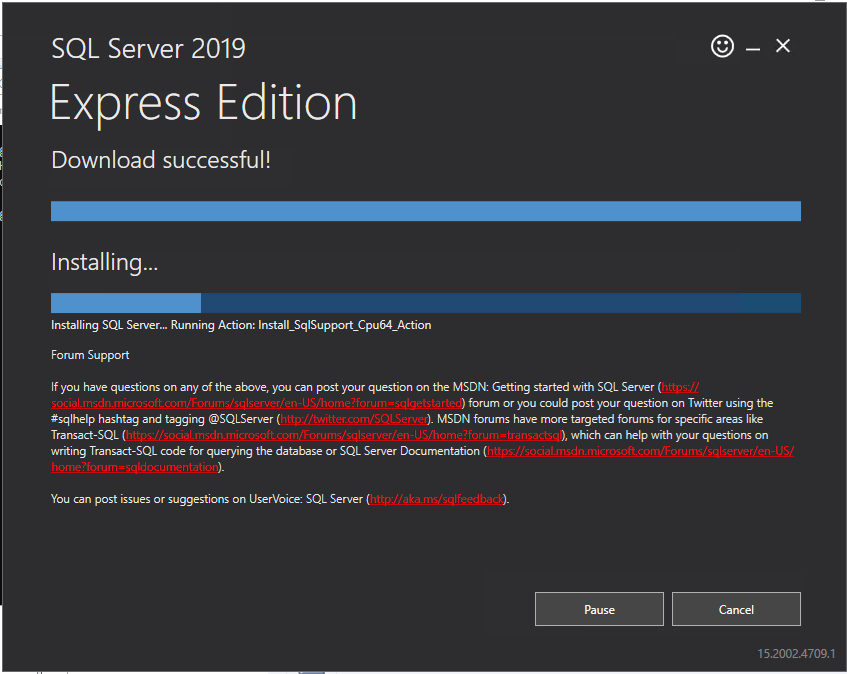

8.It might take few minutes to completed download and installation.

011122 0105 Howtoreplac11 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

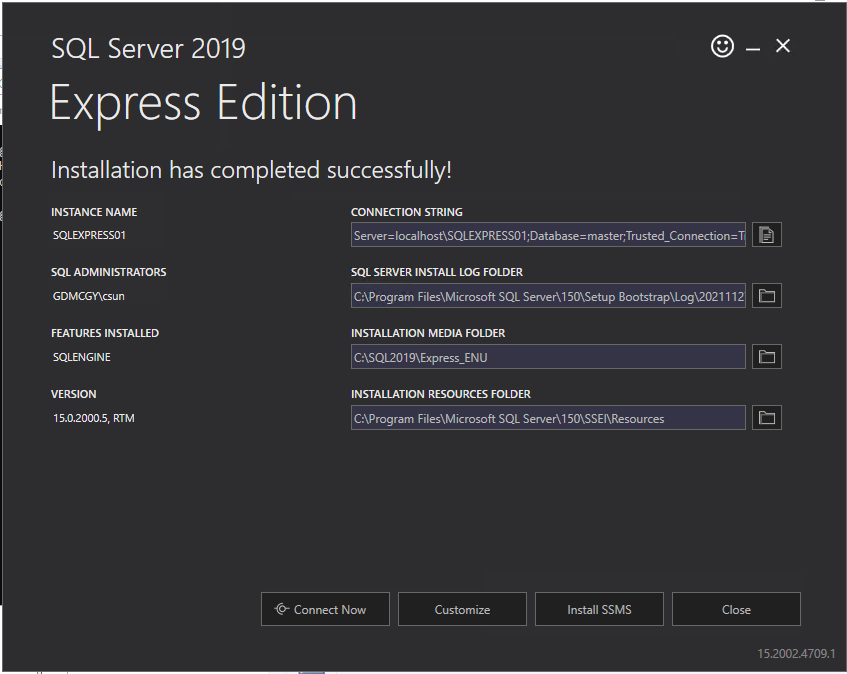

9.On the Installation has completed successfully page, take note for instance name and all information, click Install SSMS.

011122 0105 Howtoreplac12 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

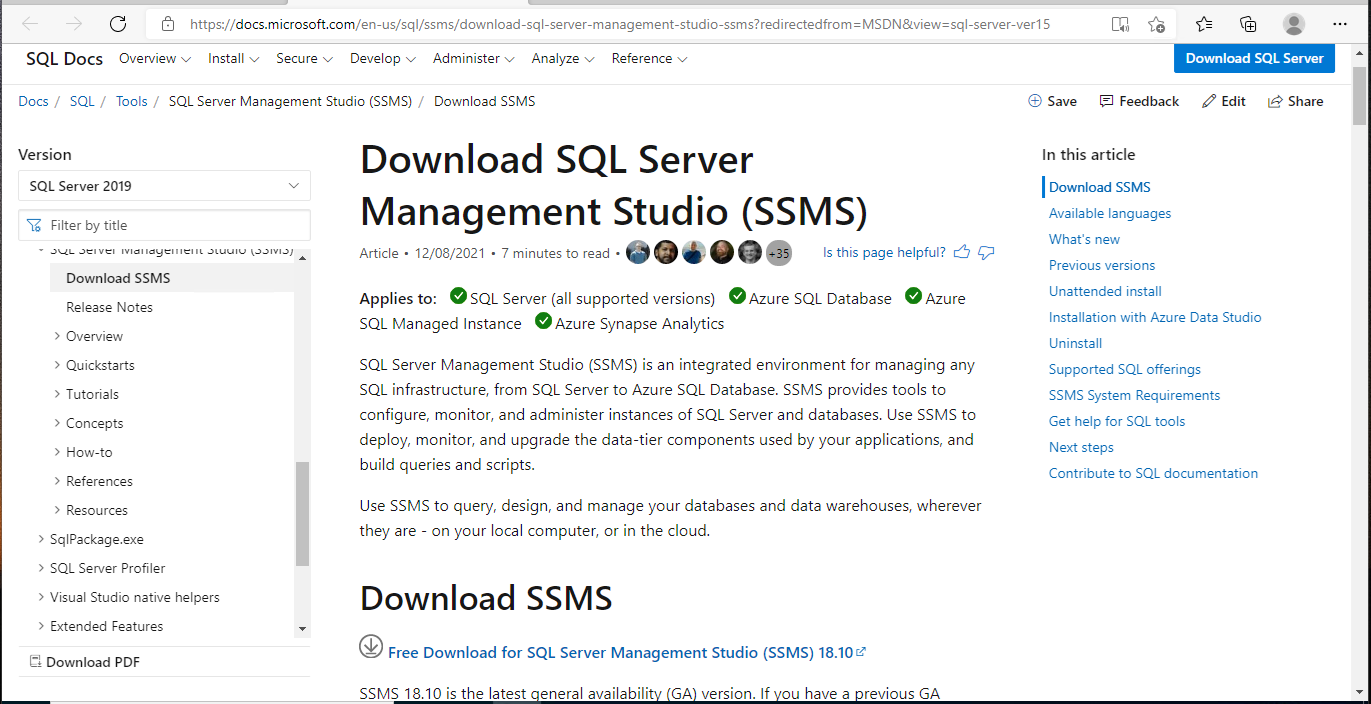

10.On the Download SQL Server Management Studio (SSMS) page, click Free Download for the SQL Server Management Studio (SSMS) 18.10.

011122 0105 Howtoreplac13 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

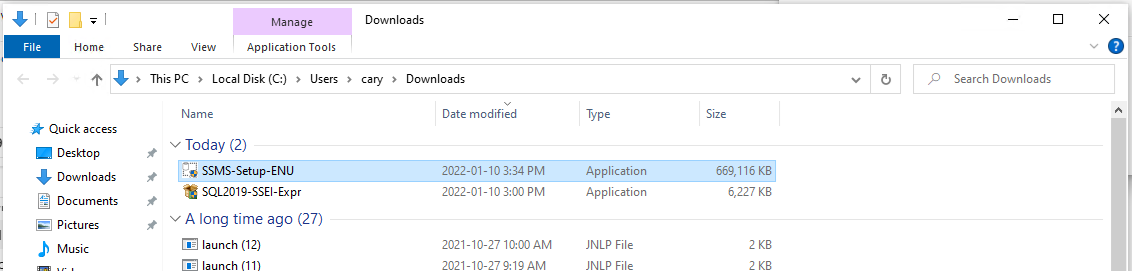

11.Run SSMS-Setup-ENU.exe.

011122 0105 Howtoreplac14 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

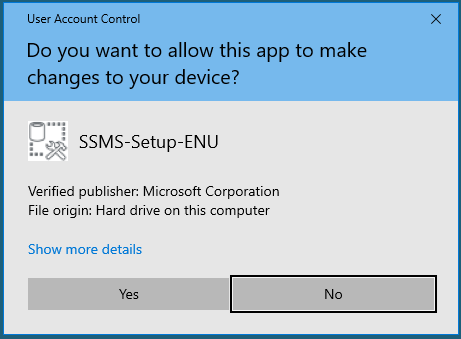

12.On the User Account Control page, click Yes.

011122 0105 Howtoreplac15 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

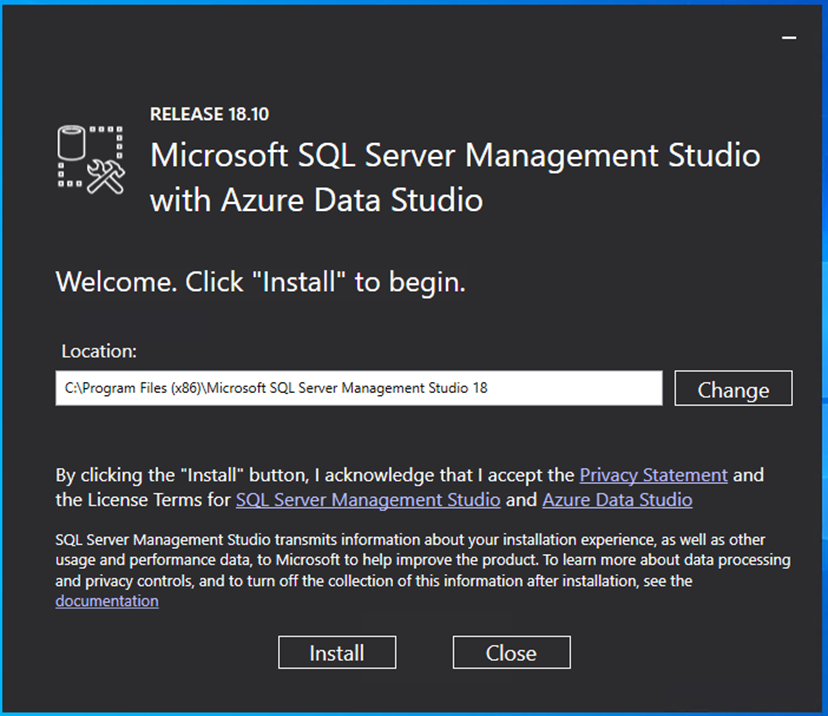

13.On the Welcome page, click Install.

011122 0105 Howtoreplac16 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

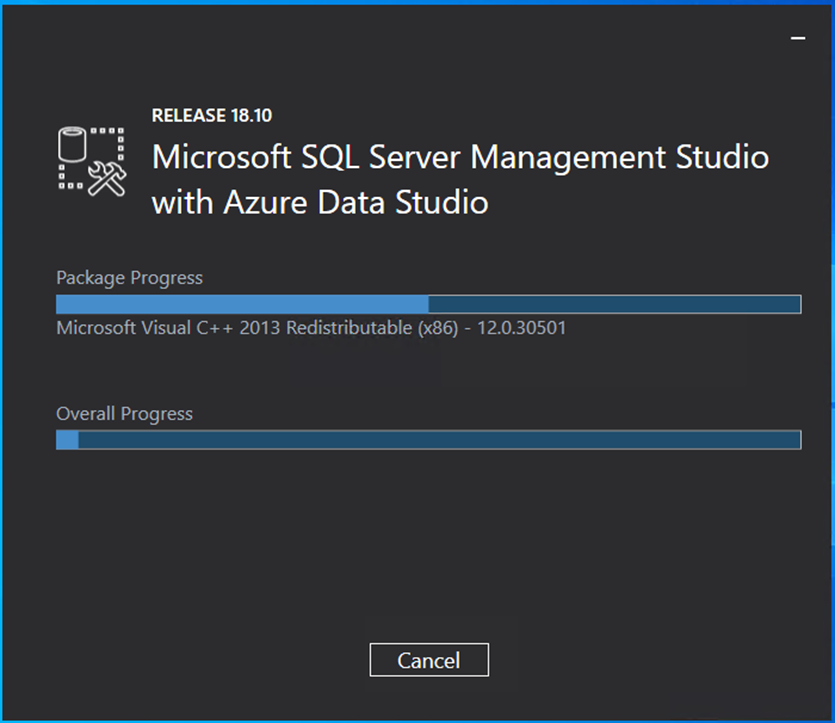

14. It might take few minutes to completed download and installation.

011122 0105 Howtoreplac17 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

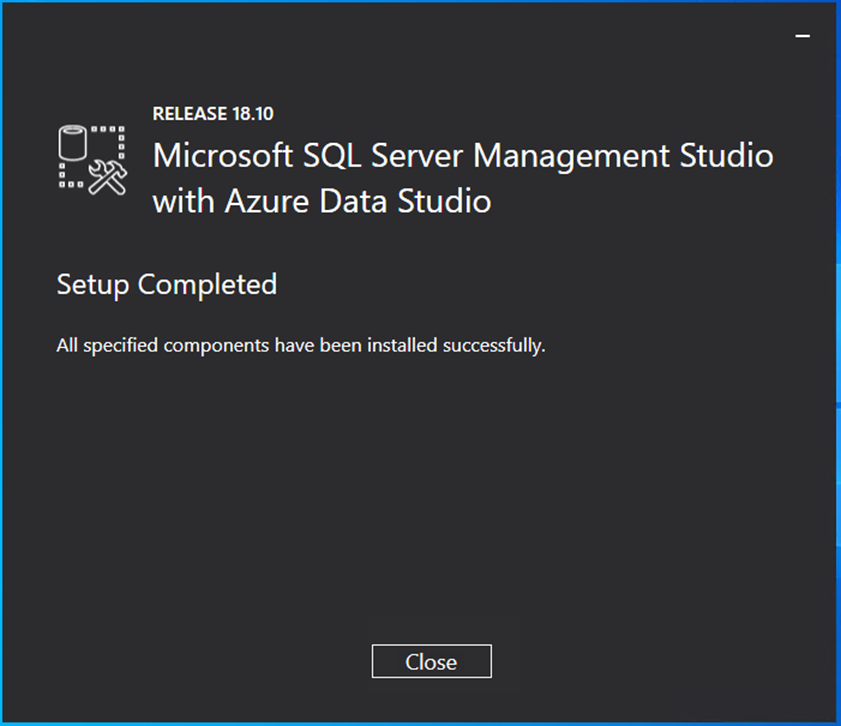

15.On the Setup Completed page, click Close.

011122 0105 Howtoreplac18 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

16.On the Installation has completed successfully page, click Close.

011122 0105 Howtoreplac19 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

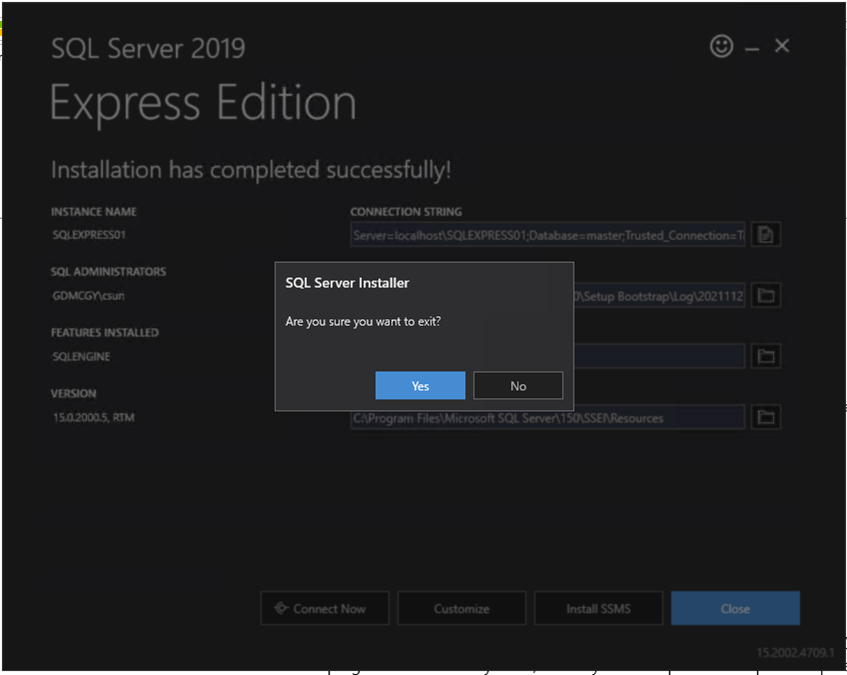

17.On the exit confirm page, click Yes.

011122 0105 Howtoreplac20 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

18.Login to Citrix Virtual Apps Delivery Controller server as local administrator.

19.Stop Citrix services.

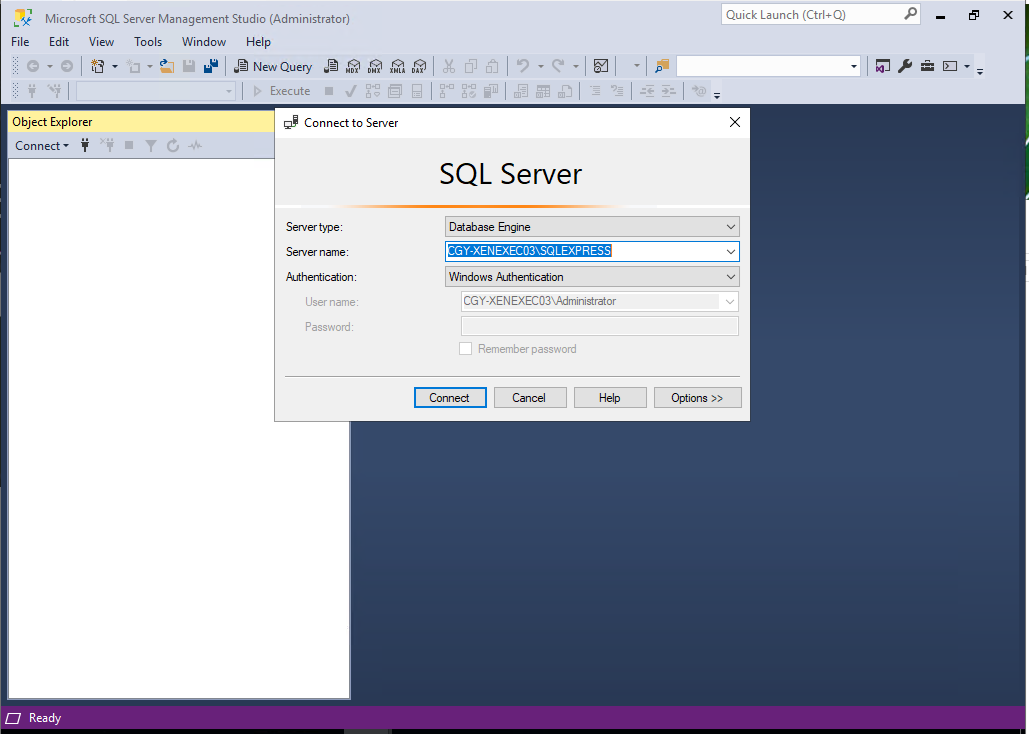

20.Open SSMS, Select the old instance name as Server name click Connect. In my case, it’s CGY-XENEXEC03\SQLEXPRESS.

011122 0105 Howtoreplac21 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

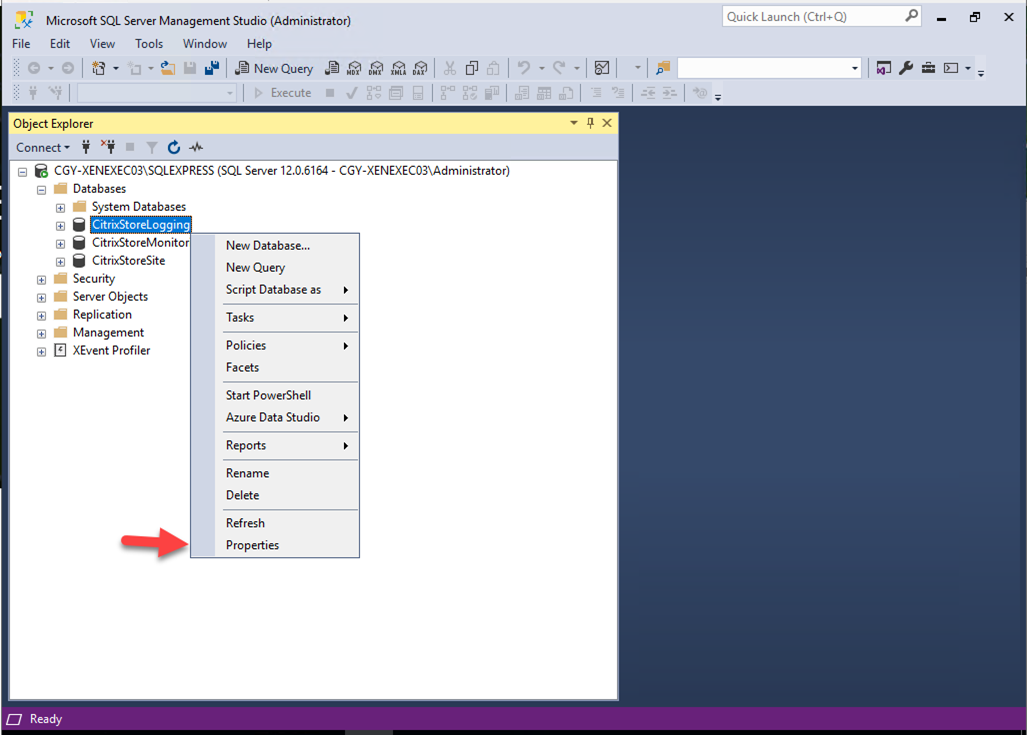

21.On the Object Explorer page, expand the instance, expand Databases, right-click CitrixStoreLogging, select Properties.

011122 0105 Howtoreplac22 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

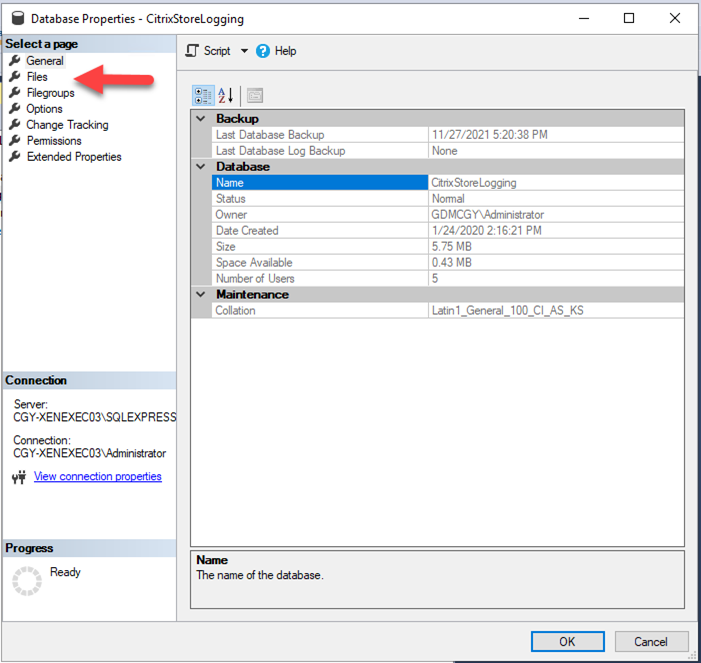

22.On the Database Properties – CitrixStoreLogging page, select Files.

011122 0105 Howtoreplac23 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

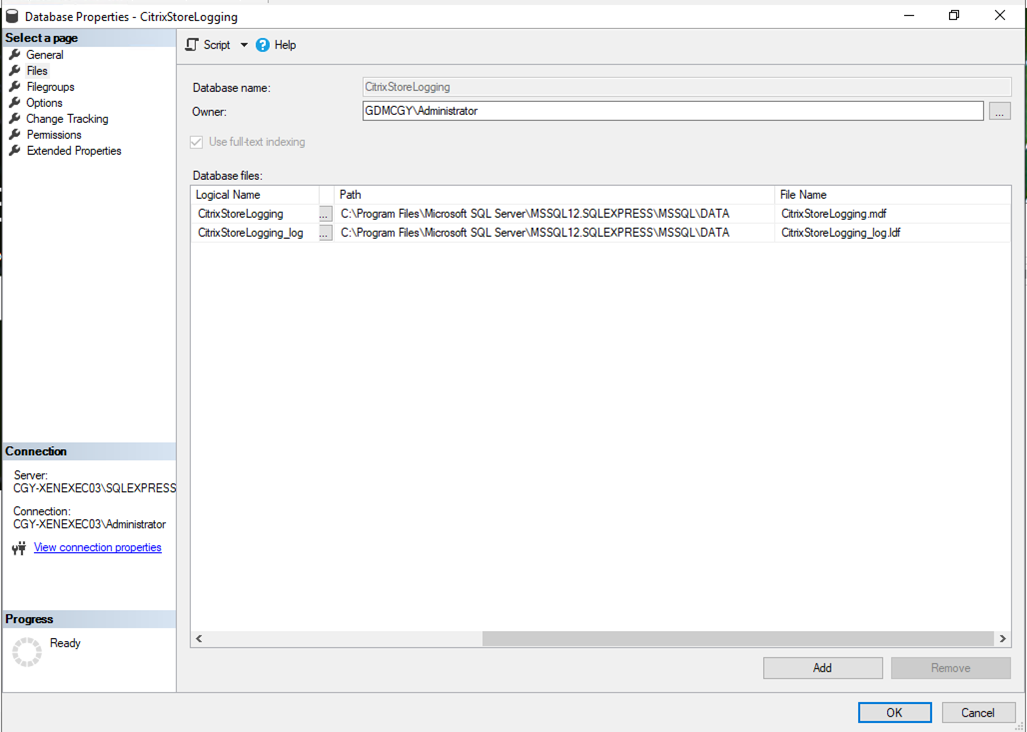

23.On the Files page, take note for the path and file name of Database files.

011122 0105 Howtoreplac24 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

011122 0105 Howtoreplac25 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

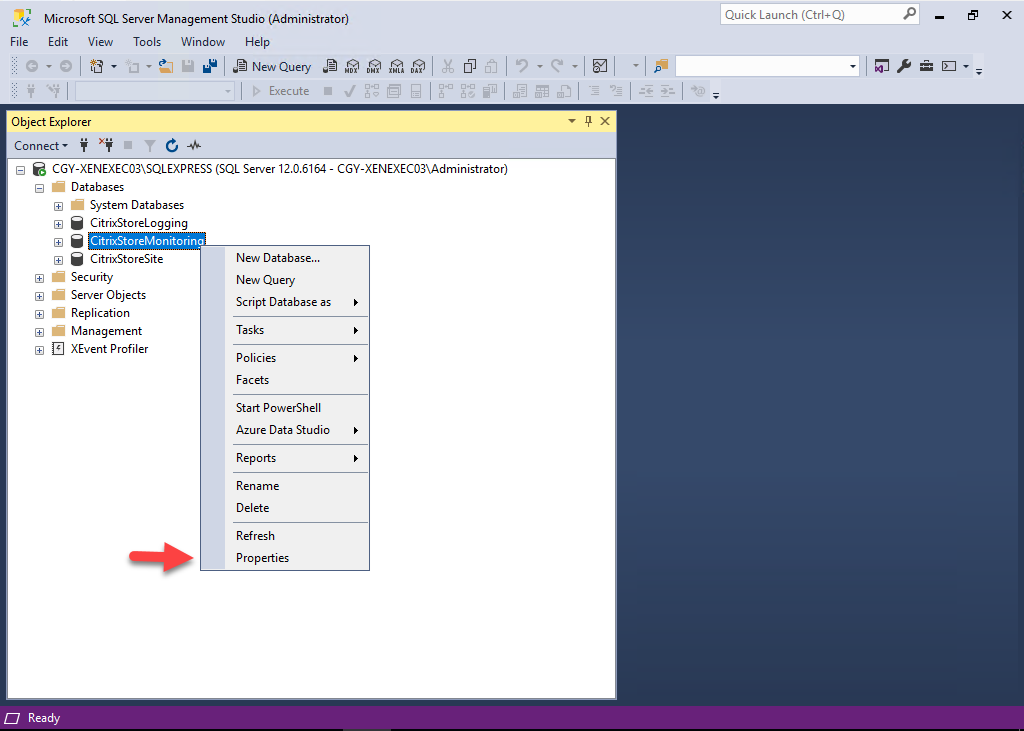

24. On the Object Explorer page, expand the instance, expand Databases, right-click CitrixStoreMonitoring, select Properties.

011122 0105 Howtoreplac26 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

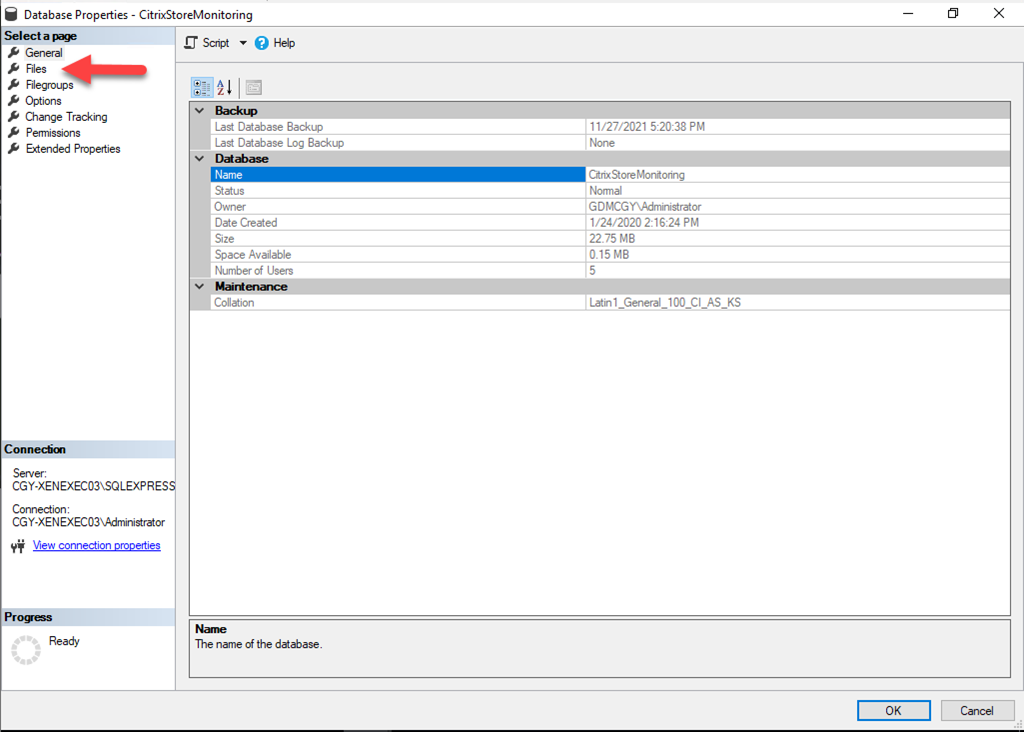

25.On the Database Properties – CitrixStoreMonitoring page, select Files.

011122 0105 Howtoreplac27 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

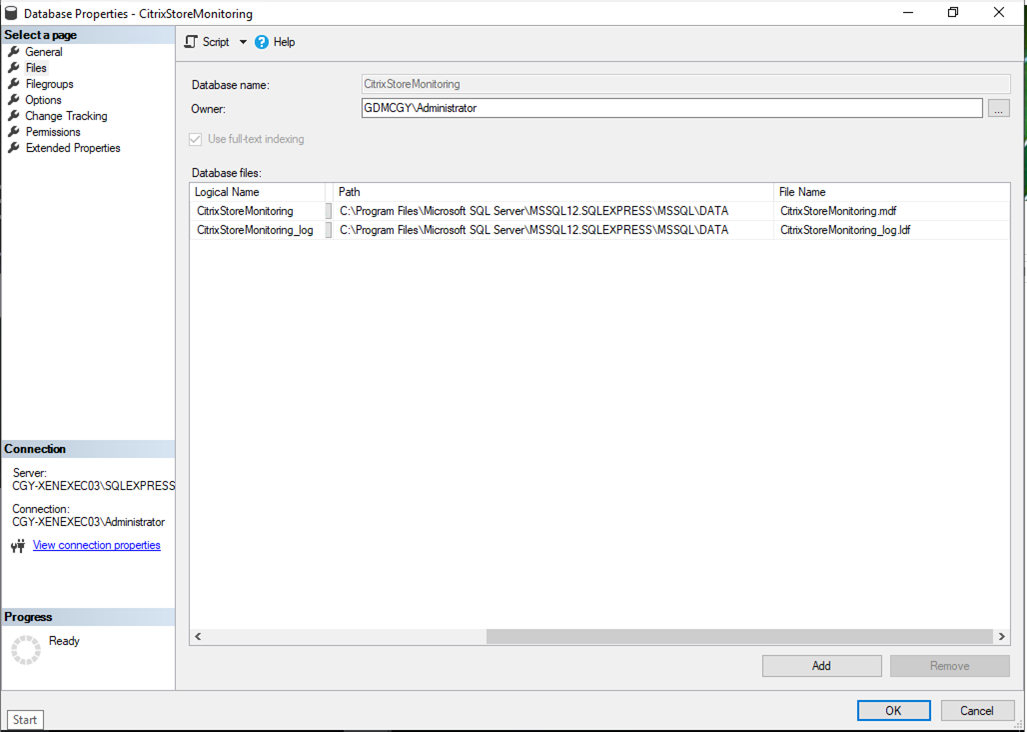

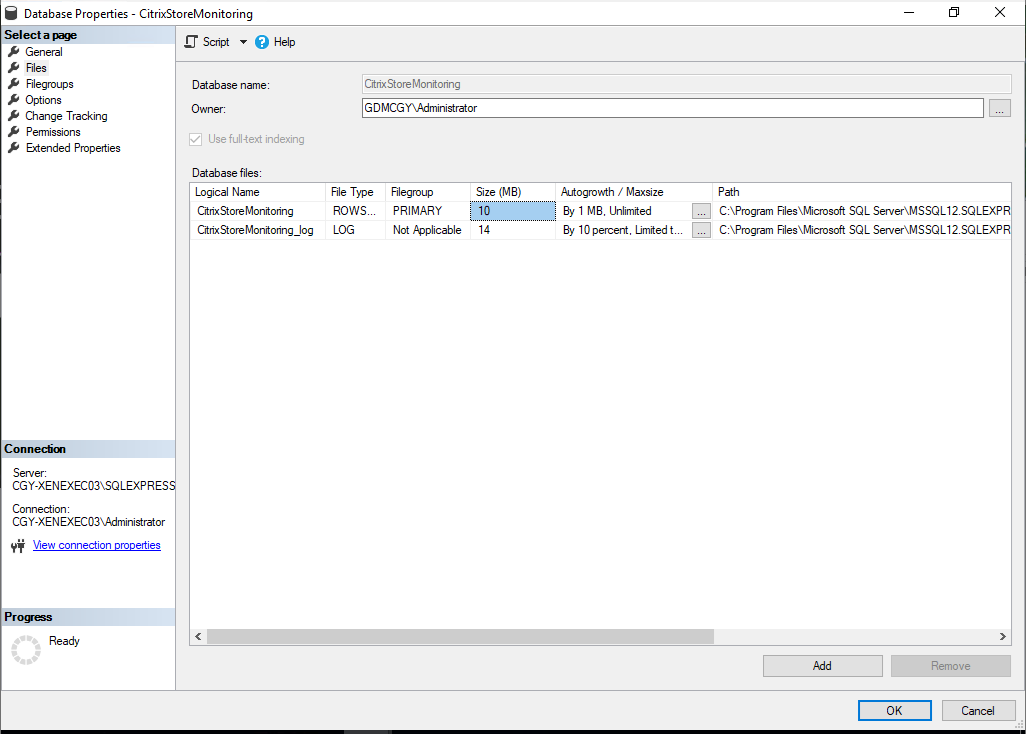

26. On the Files page, take note for the path and file name of Database files.

011122 0105 Howtoreplac28 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

011122 0105 Howtoreplac29 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

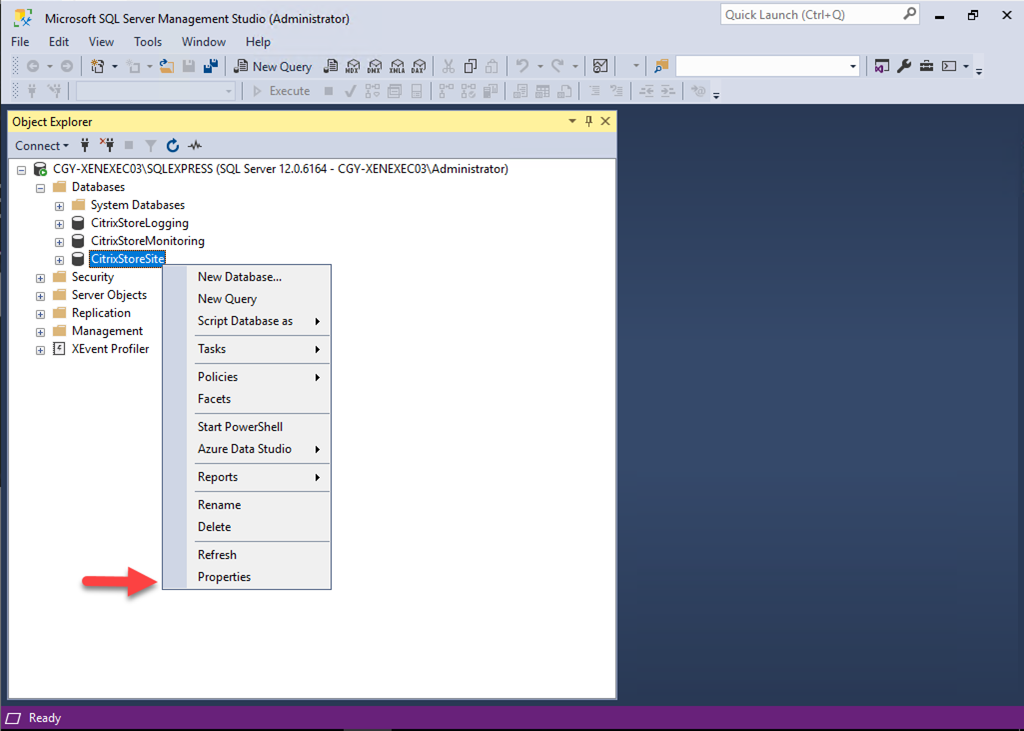

27. On the Object Explorer page, expand the instance, expand Databases, right-click CitrixStoreSite, select Properties.

011122 0105 Howtoreplac30 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

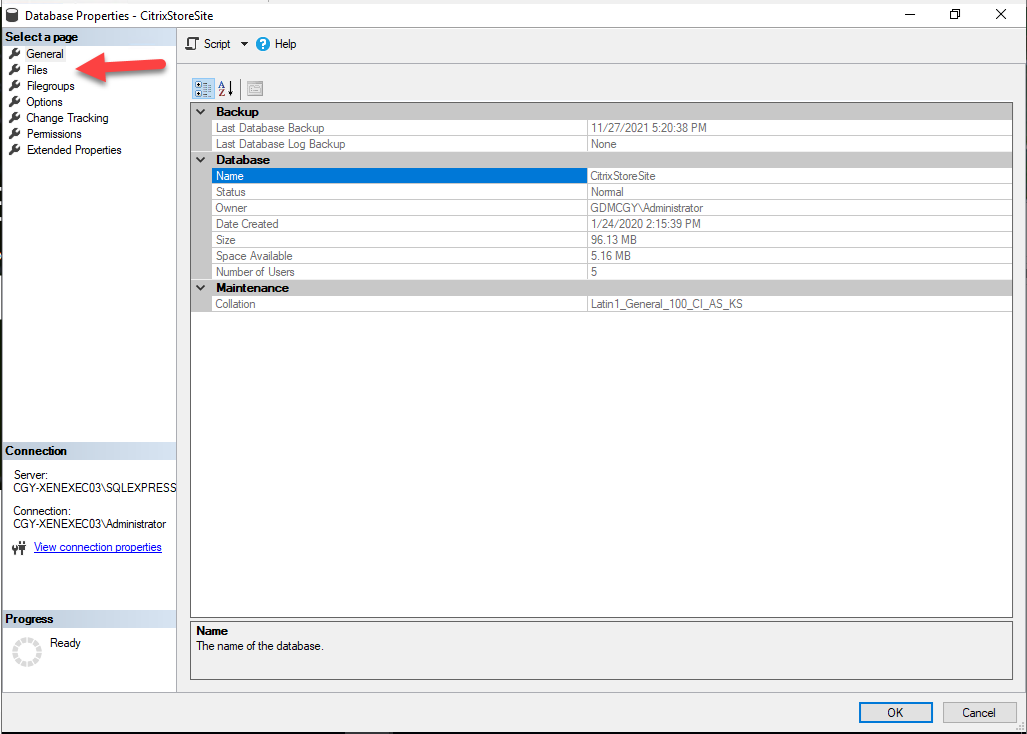

28. On the Database Properties – CitrixStoreSite page, select Files.

011122 0105 Howtoreplac31 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

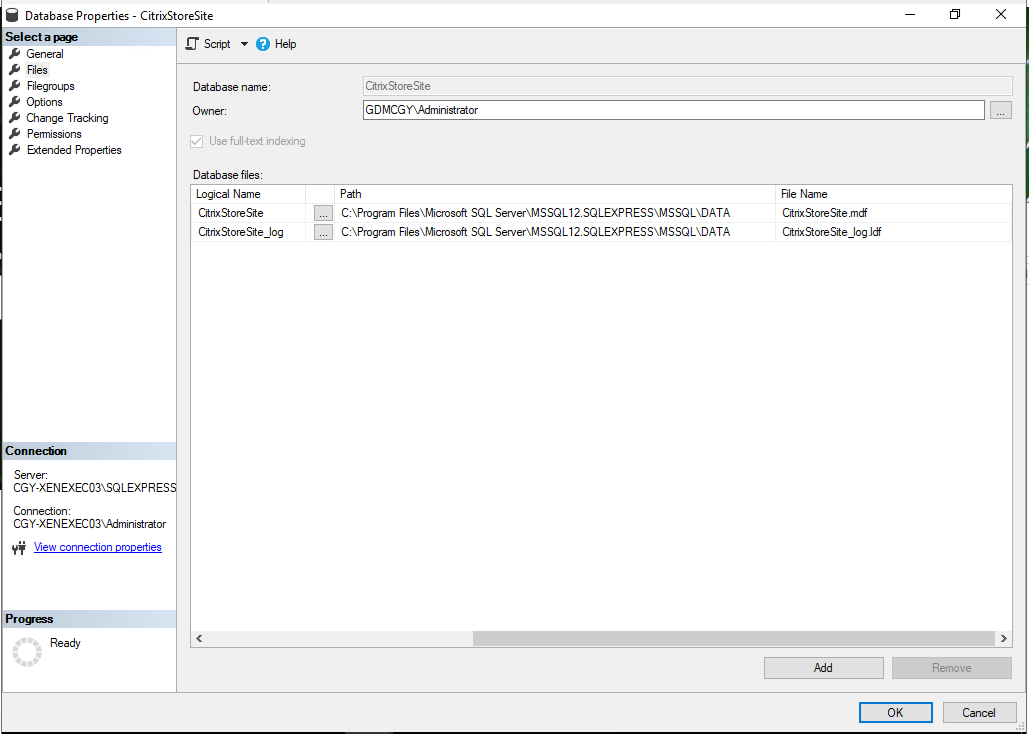

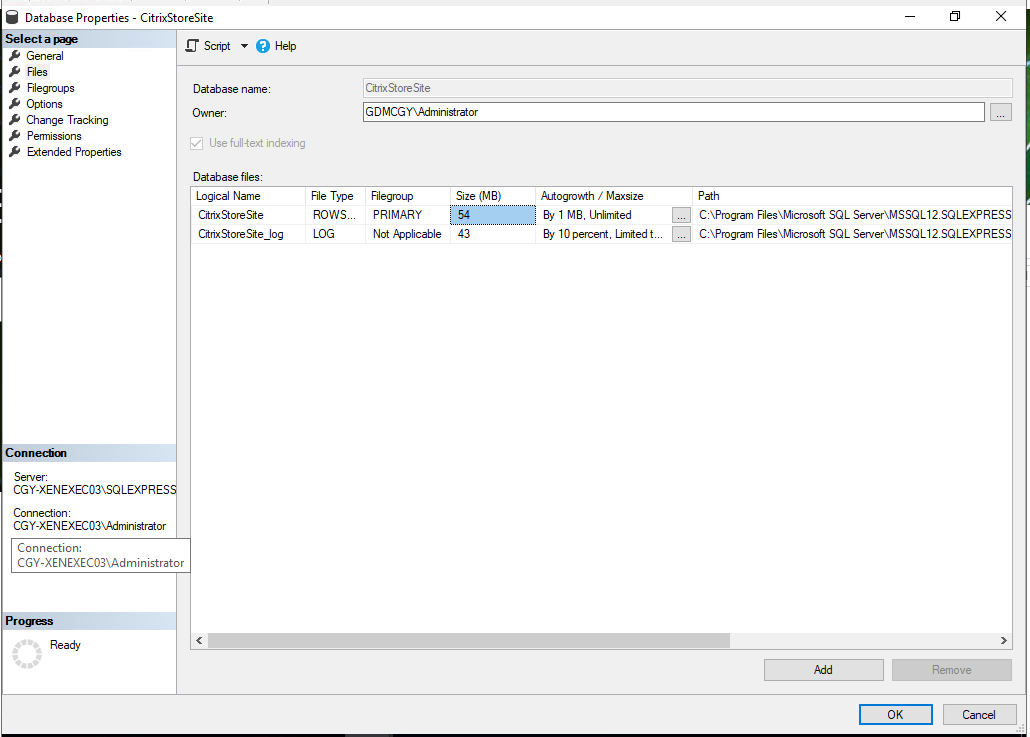

29. On the Files page, take note for the path and file name of Database files.

011122 0105 Howtoreplac32 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

011122 0105 Howtoreplac33 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

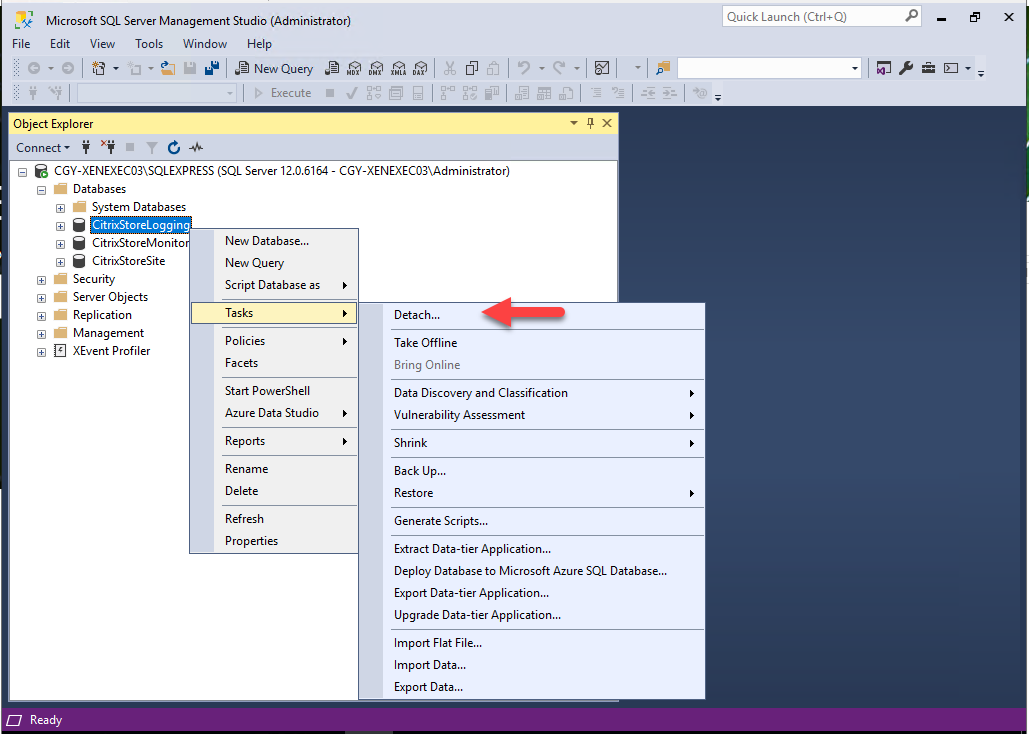

31.On the Object Explorer page, expand the instance, expand Databases, right-click CitrixStoreLogging, select Detach.

011122 0105 Howtoreplac34 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

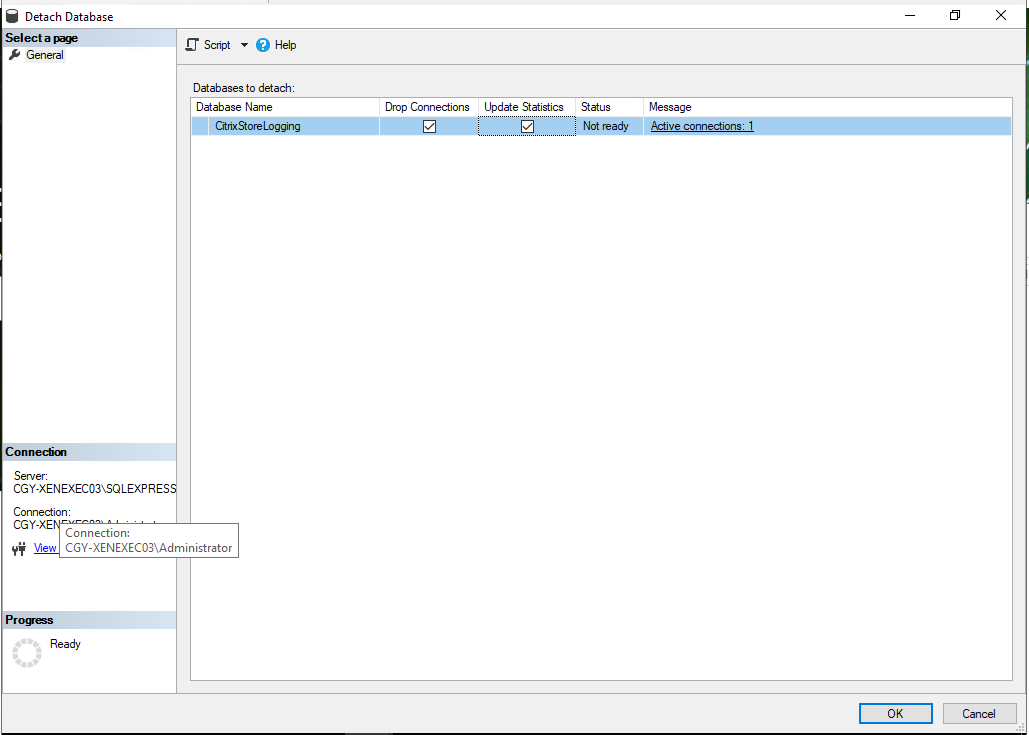

32.On the Database to detach page, select Drop Connections, select Update Statistics, click OK.

011122 0105 Howtoreplac35 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

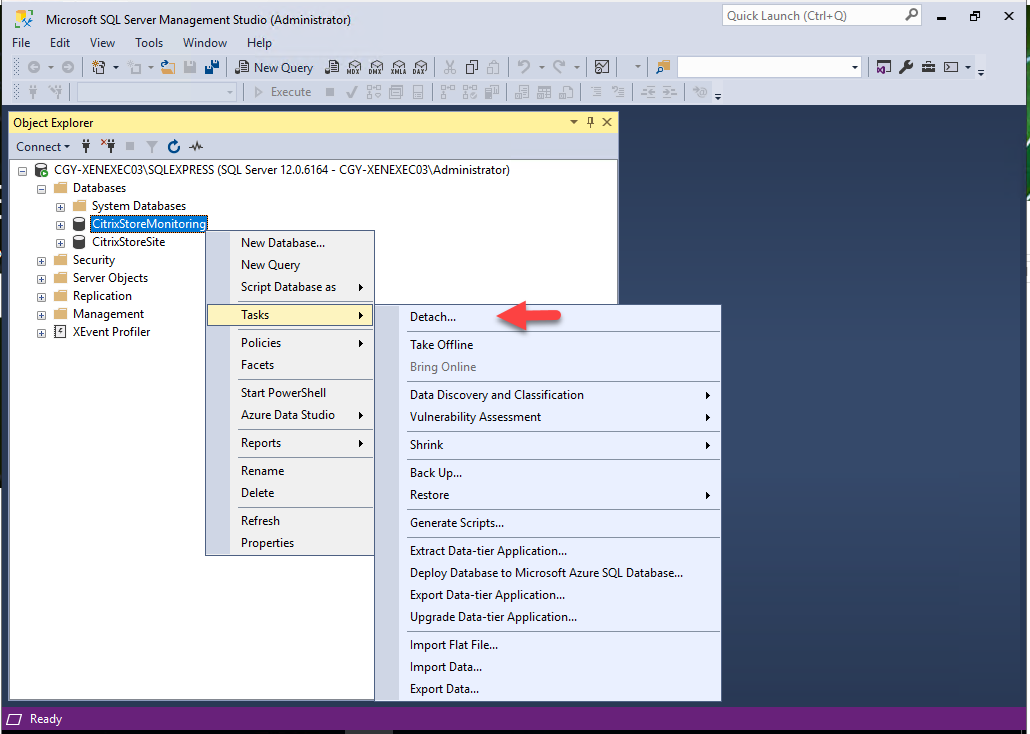

33. On the Object Explorer page, expand the instance, expand Databases, right-click CitrixStoreMonitoring, select Detach.

011122 0105 Howtoreplac36 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

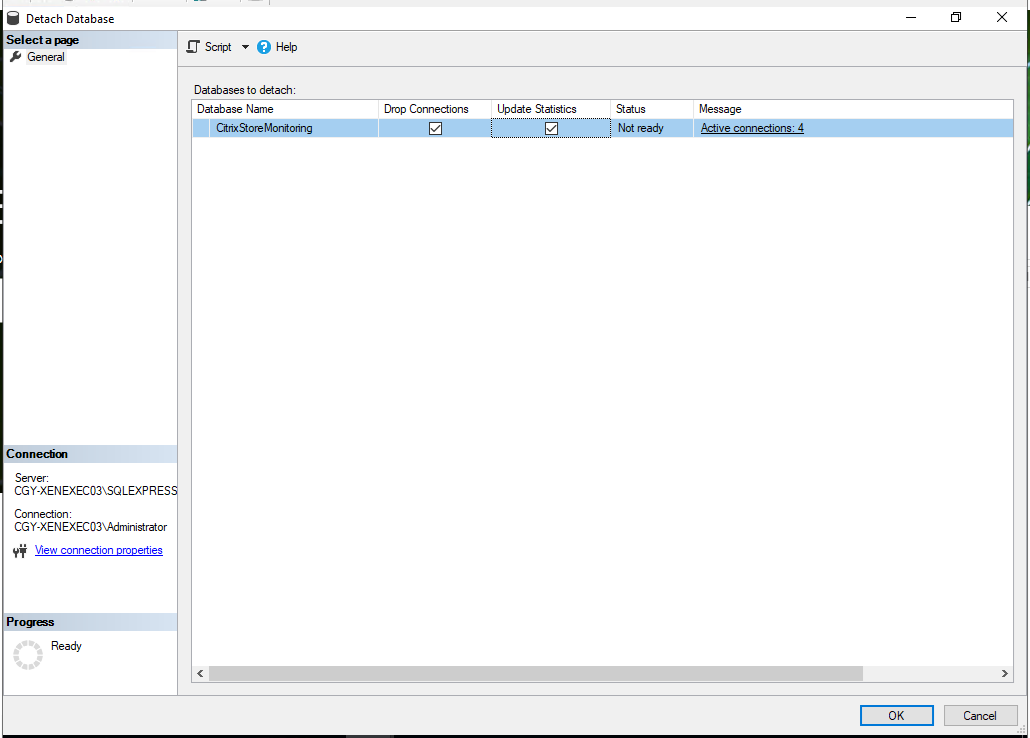

34. On the Database to detach page, select Drop Connections, select Update Statistics, click OK.

011122 0105 Howtoreplac37 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

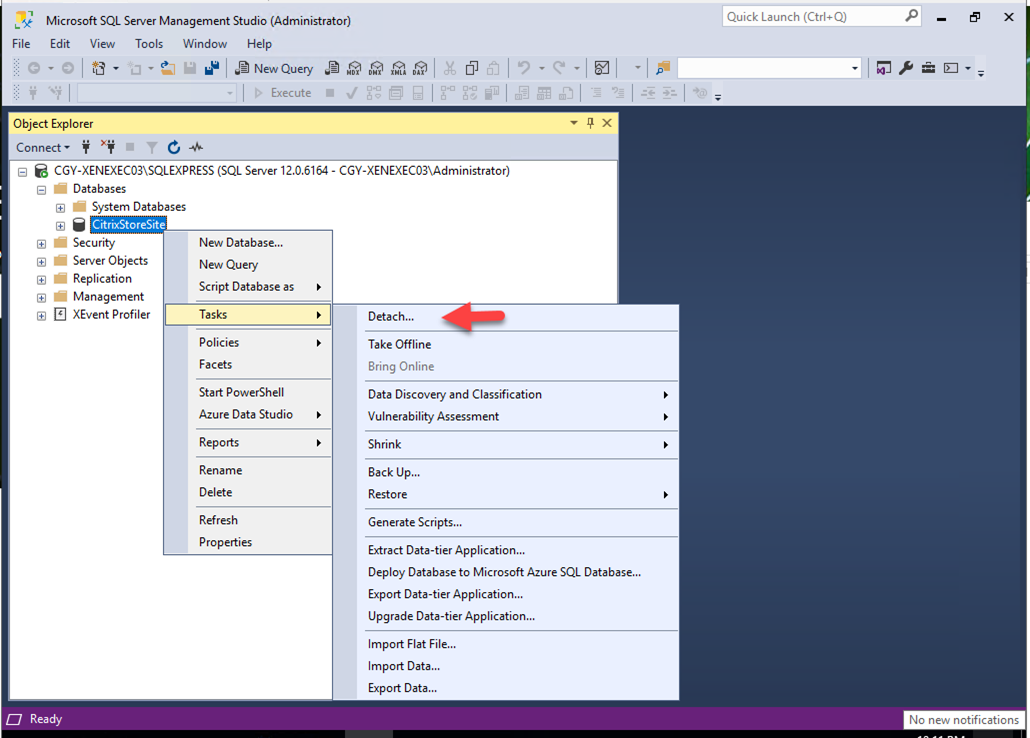

35. On the Object Explorer page, expand the instance, expand Databases, right-click CitrixStoreSite, select Detach.

011122 0105 Howtoreplac38 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

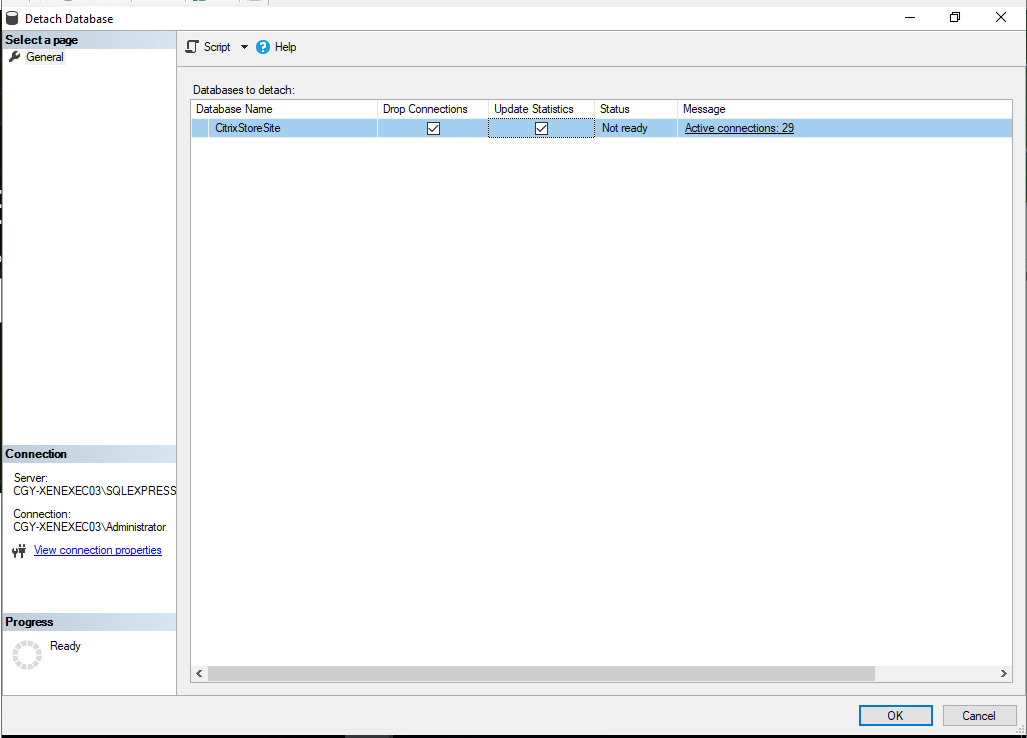

36. On the Database to detach page, select Drop Connections, select Update Statistics, click OK.

011122 0105 Howtoreplac39 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

37.Close SSMS.

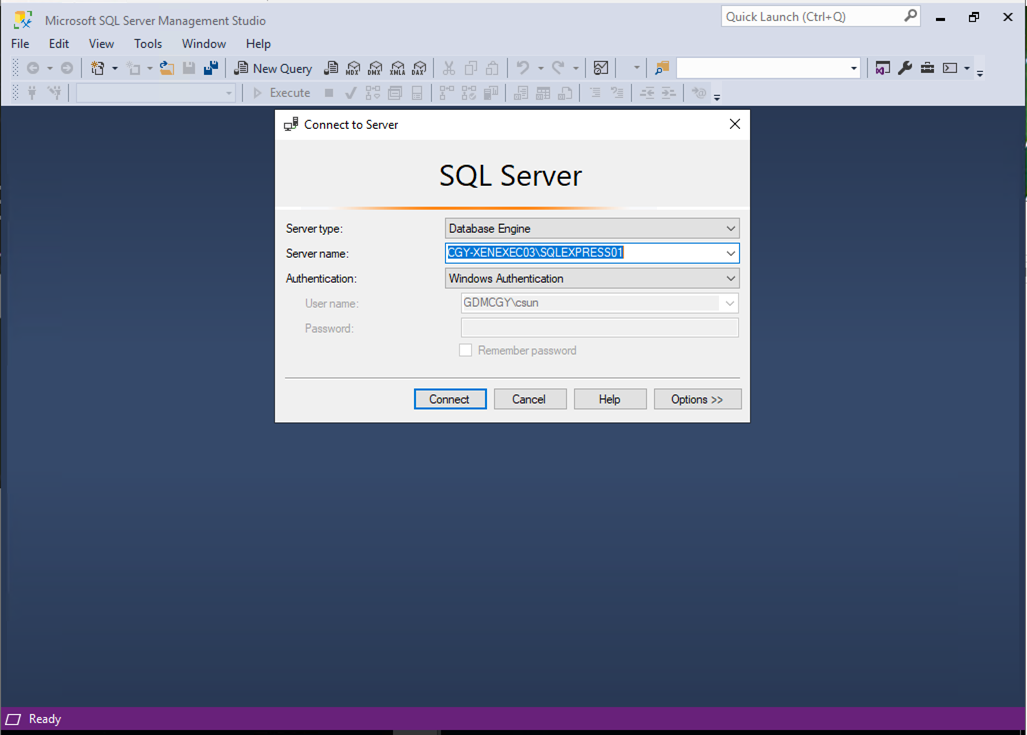

38.Re-open SSMS, select the new instance name as Server name click Connect. In my case, it’s CGY-XENEXEC03\SQLEXPRESS01.

011122 0105 Howtoreplac40 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

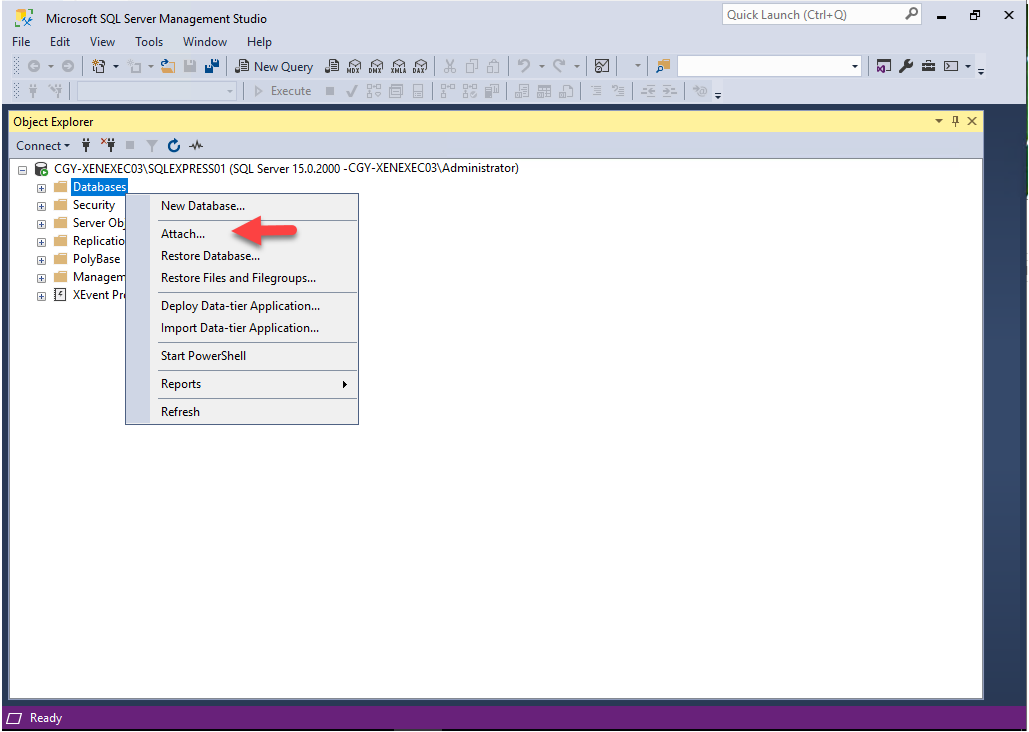

39. On the Object Explorer page, expand the instance, right-click Databases, select Attach.

011122 0105 Howtoreplac41 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

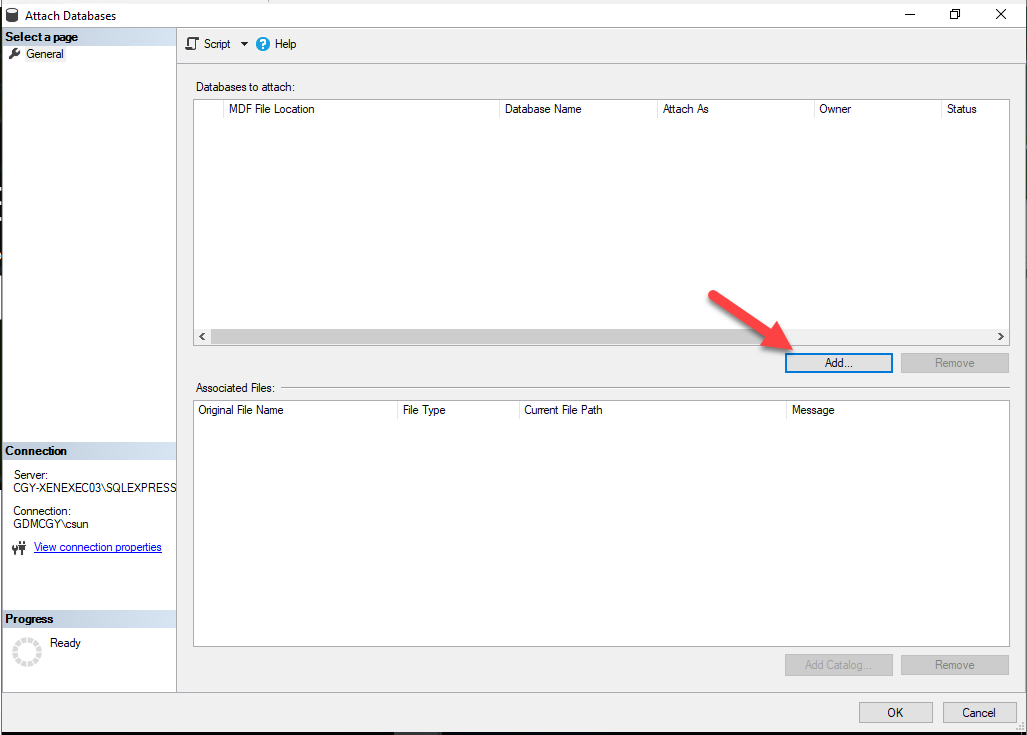

40.On the Database to attach page, click Add.

011122 0105 Howtoreplac42 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

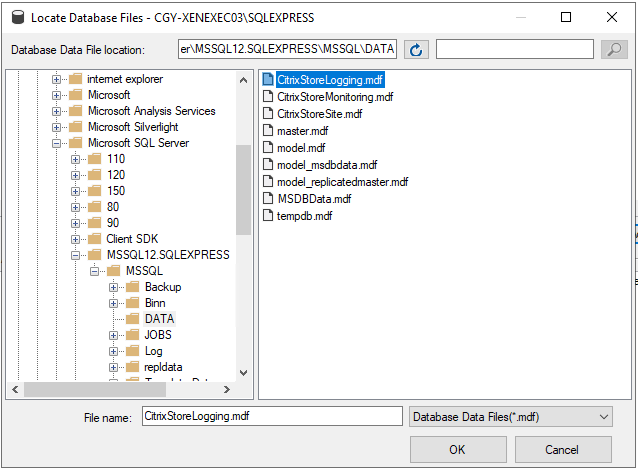

41.Select CitrixStoreLogging.mdf from previsouly noted path, click OK.

011122 0105 Howtoreplac43 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

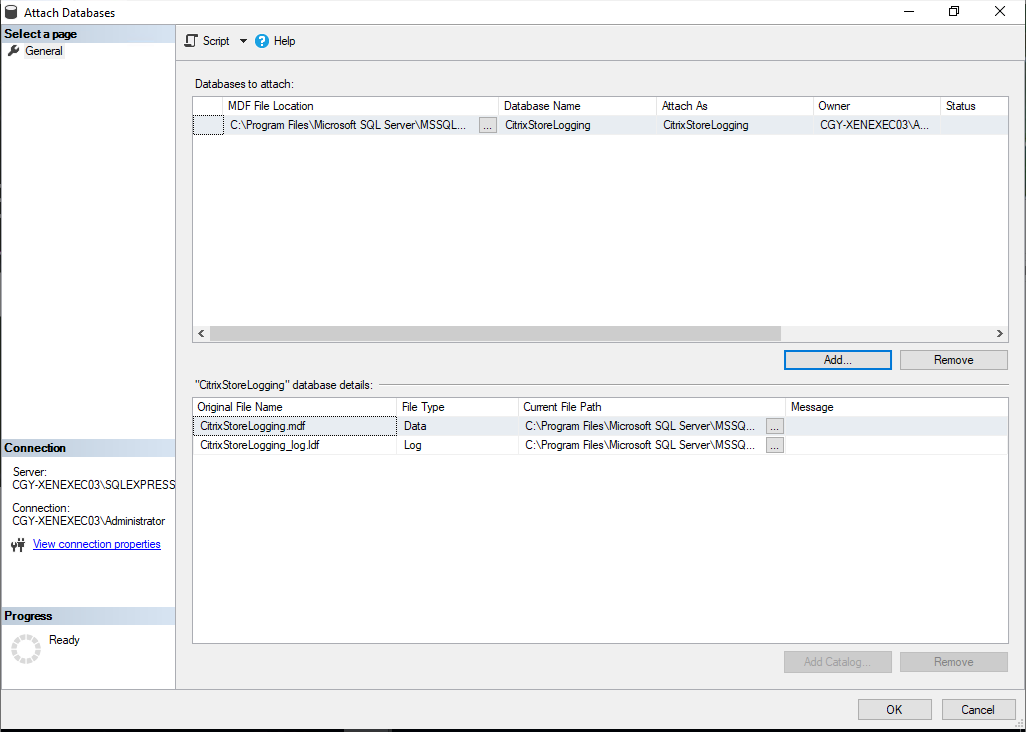

42.On the Attach Database page, click OK.

011122 0105 Howtoreplac44 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

43. On the Object Explorer page, expand the instance, right-click Databases, select Attach.

011122 0105 Howtoreplac45 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

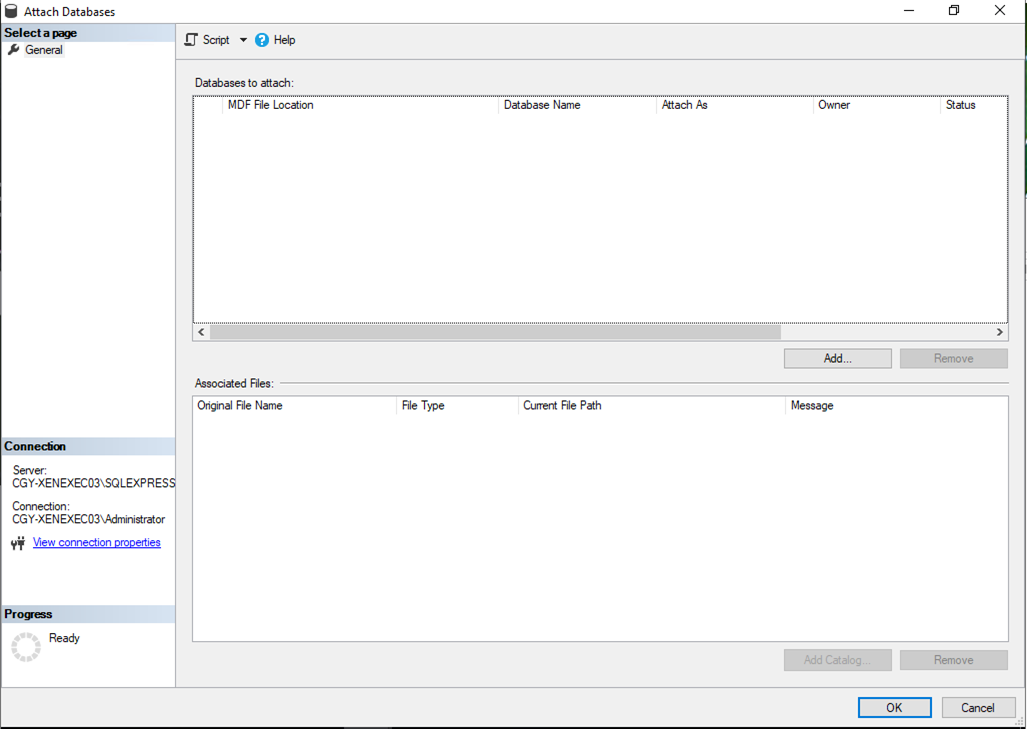

44. On the Database to attach page, click Add.

011122 0105 Howtoreplac46 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

45. Select CitrixStoreMonitoring.mdf from previsouly noted path, click OK.

011122 0105 Howtoreplac47 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

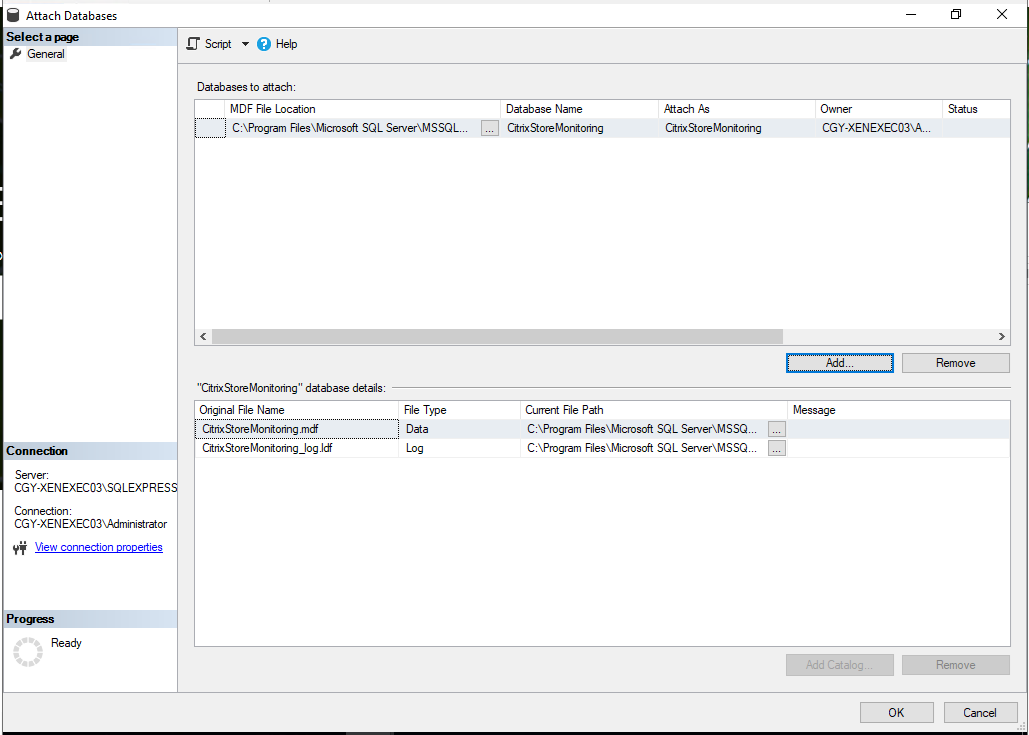

46. On the Attach Database page, click OK.

011122 0105 Howtoreplac48 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

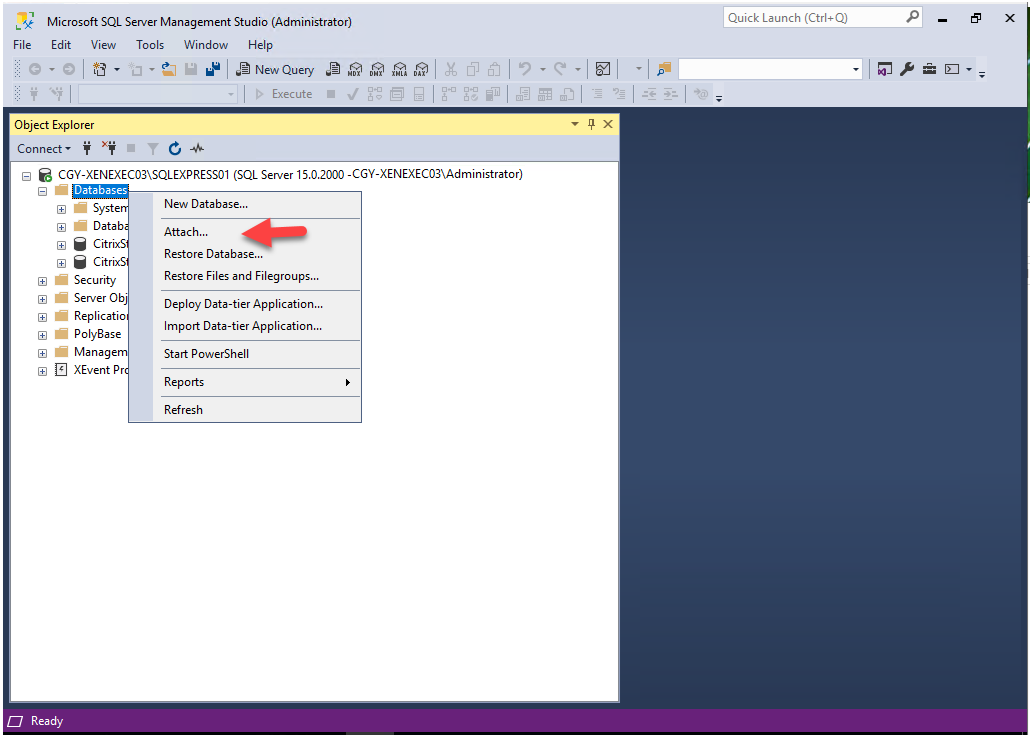

47.On the Object Explorer page, expand the instance, right-click Databases, select Attach.

011122 0105 Howtoreplac49 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

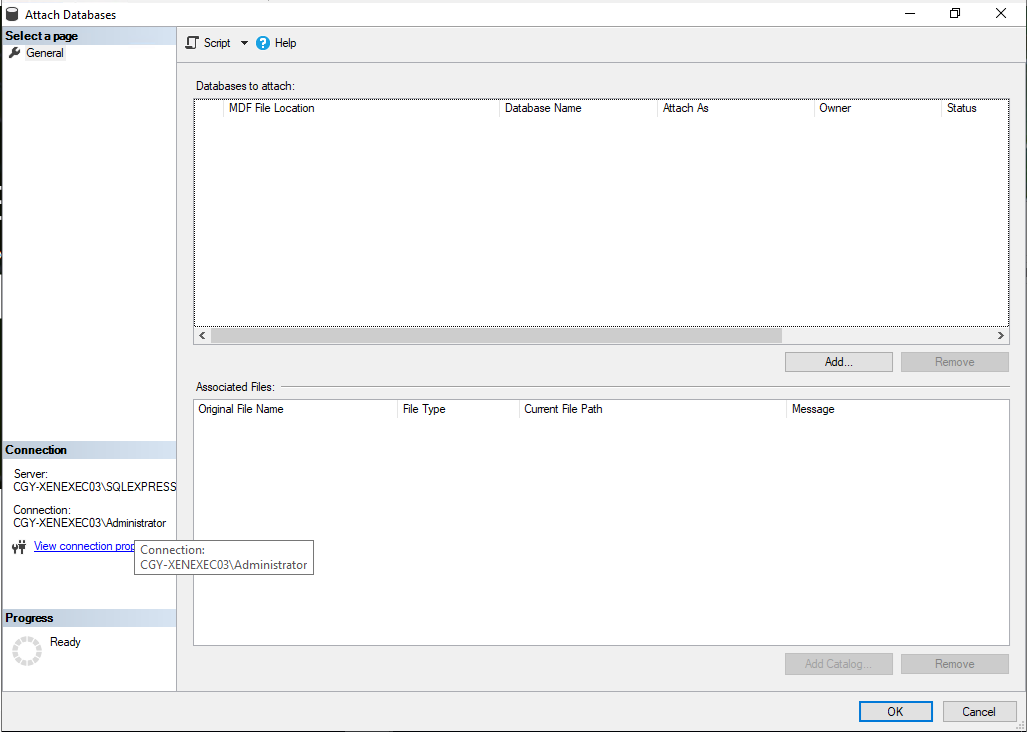

48. On the Database to attach page, click Add.

011122 0105 Howtoreplac50 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

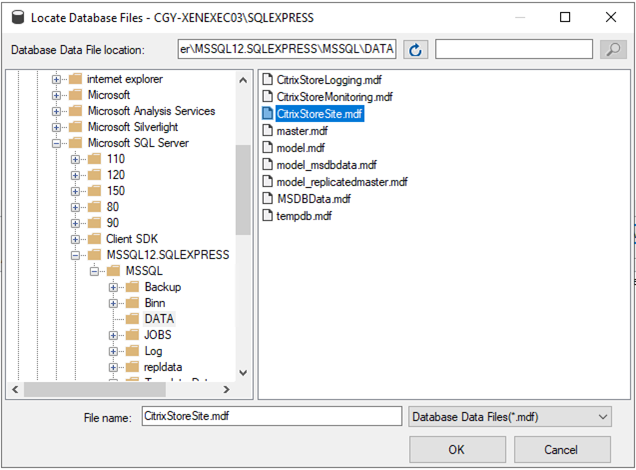

49. Select CitrixStoreSite.mdf from previsouly noted file path, click OK.

011122 0105 Howtoreplac51 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

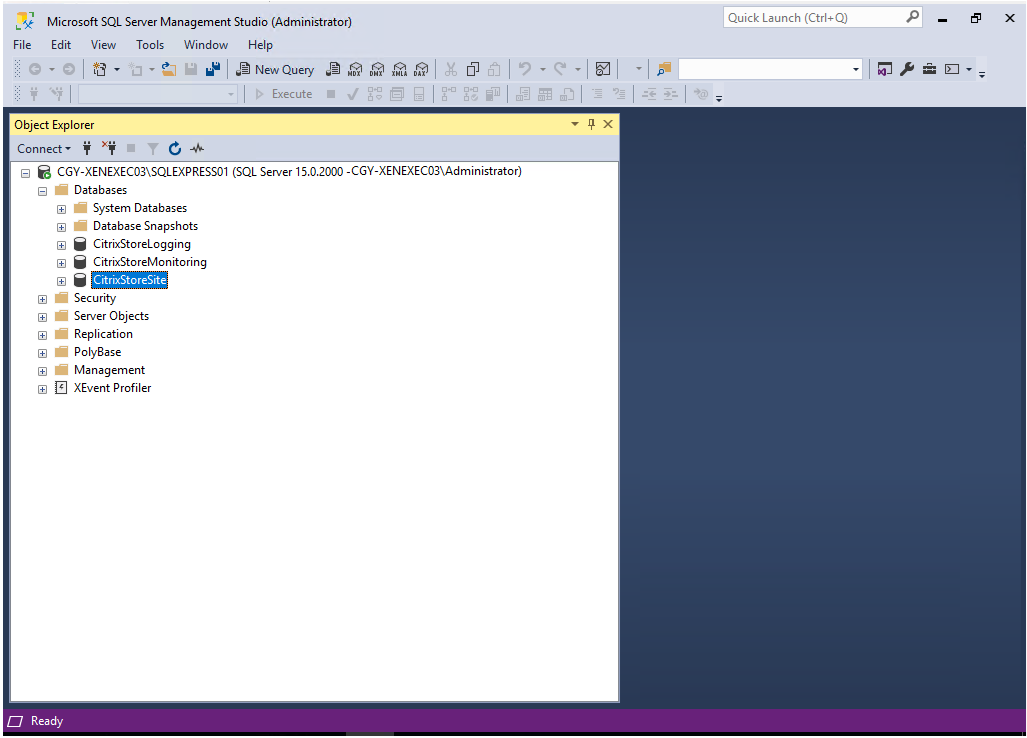

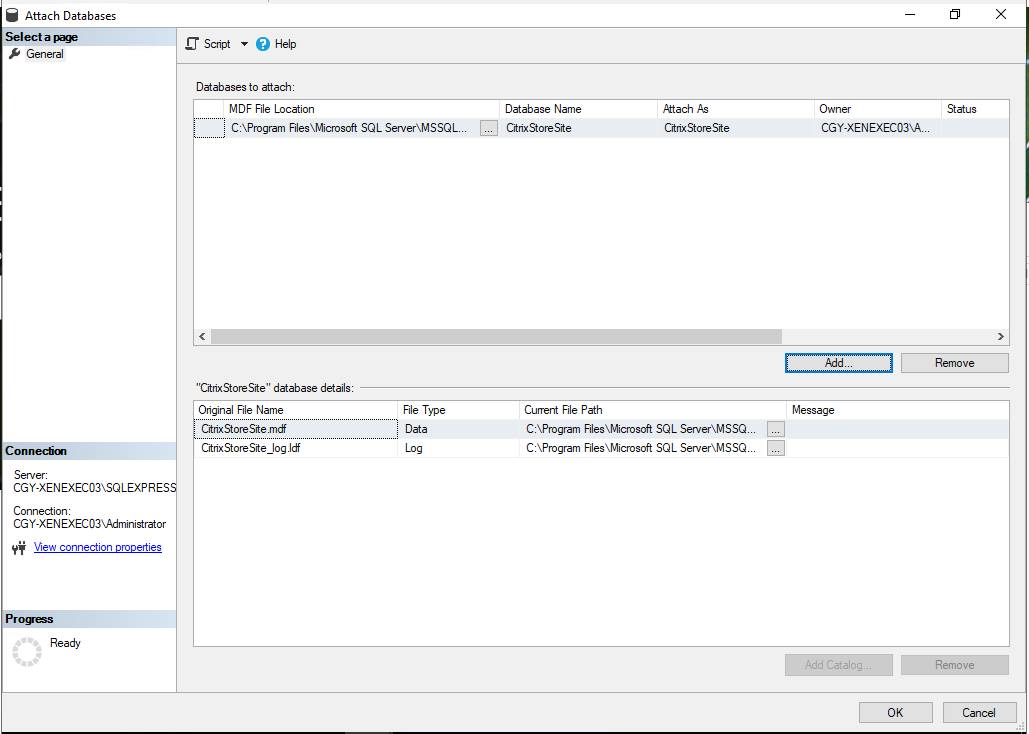

50. On the Attach Database page, click OK.

011122 0105 Howtoreplac52 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

011122 0105 Howtoreplac53 - How to replace SQL Server Express LocalDB for Citrix Virtual Apps server

Hope you enjoy this post.
