When you install Veeam Backup & Replication v12.1, the Veeam Backup & Replication console is automatically installed on the backup server. If you want to access Veeam Backup & Replication remotely, you can install the Veeam Backup & Replication console on a dedicated machine.

When you install Veeam Backup & Replication v12.1, the Veeam Backup & Replication console is automatically installed on the backup server. If you want to access Veeam Backup & Replication remotely, you can install the Veeam Backup & Replication console on a dedicated machine.

1.Login to the Veeam Backup and Replication Management Server.

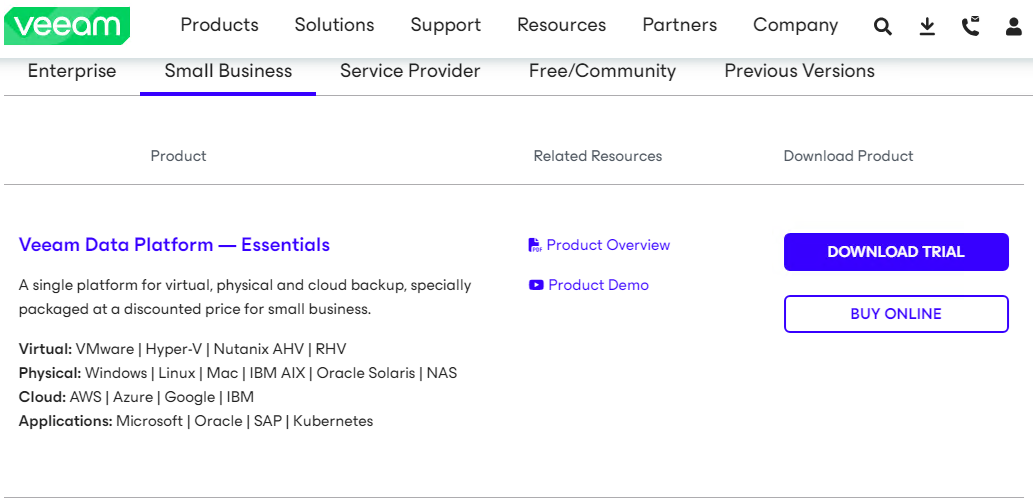

2.Sign in to your Veeam account and download the Veeam Backup and Replication v12.1 ISO image.

122523 2124 HowtoInstal1 - How to Install Veeam Backup and Replication 12.1

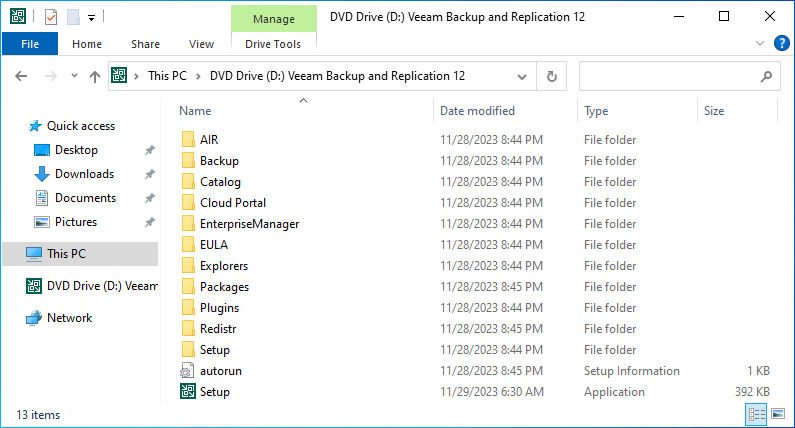

3.Mount VeeamBackup&Replication_12.1.0.2131_20231206.iso file.

4.Run Setup.exe.

122523 2124 HowtoInstal2 - How to Install Veeam Backup and Replication 12.1

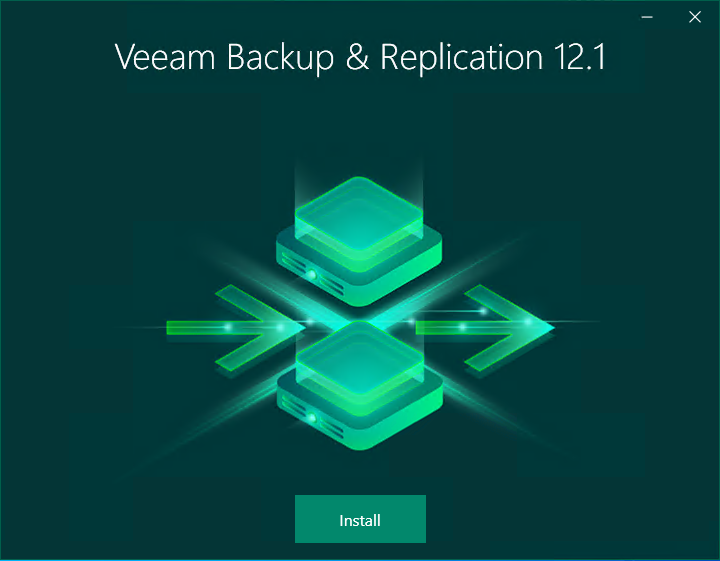

5.On the Veeam Backup & Replication 12.1 page, click Install.

122523 2124 HowtoInstal3 - How to Install Veeam Backup and Replication 12.1

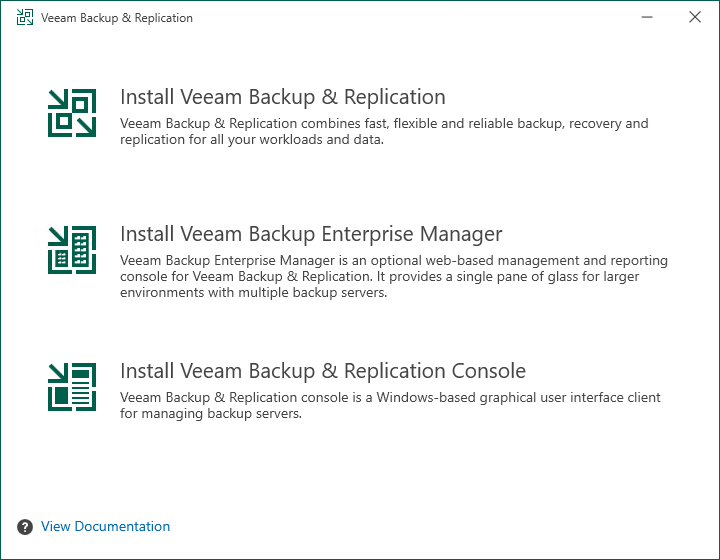

6.Select Install Veeam Backup & Replication on the Veeam Backup & Replication page.

122523 2124 HowtoInstal4 - How to Install Veeam Backup and Replication 12.1

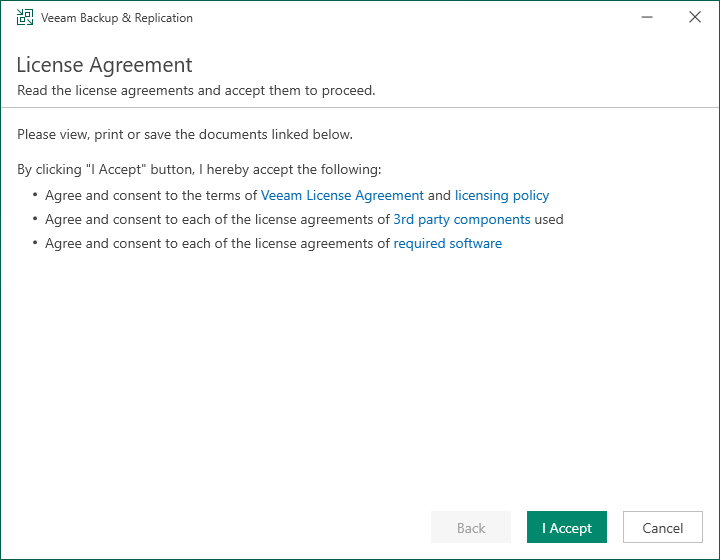

7.On the License Agreement page, click I Accept.

122523 2124 HowtoInstal5 - How to Install Veeam Backup and Replication 12.1

8.There are two options to install the license. To use license file in my case.

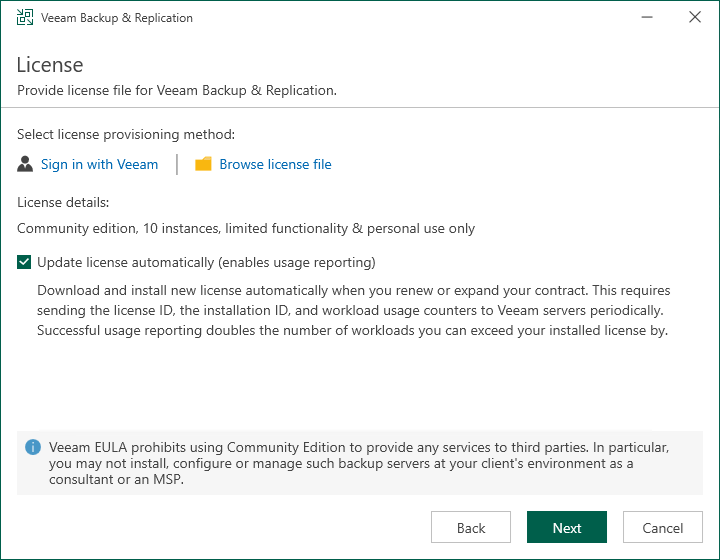

9.Select Browse license file on the License page.

122523 2124 HowtoInstal6 - How to Install Veeam Backup and Replication 12.1

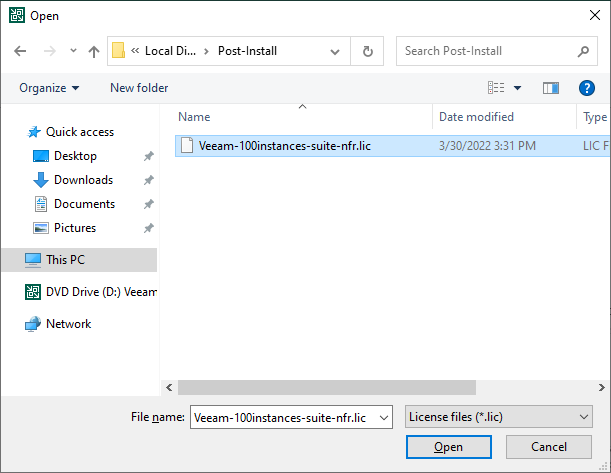

10.Select a valid Veeam Backup & Replication v12.1 license file and click Open.

122523 2124 HowtoInstal7 - How to Install Veeam Backup and Replication 12.1

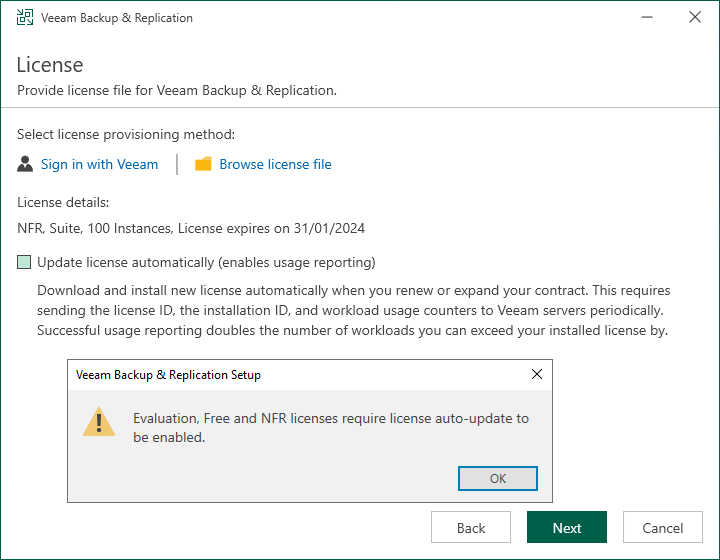

11.If you use Evaluation, Free and NFR licenses, select the Update license automatically (enables usage reporting) checkbox and click Next.

122523 2124 HowtoInstal8 - How to Install Veeam Backup and Replication 12.1

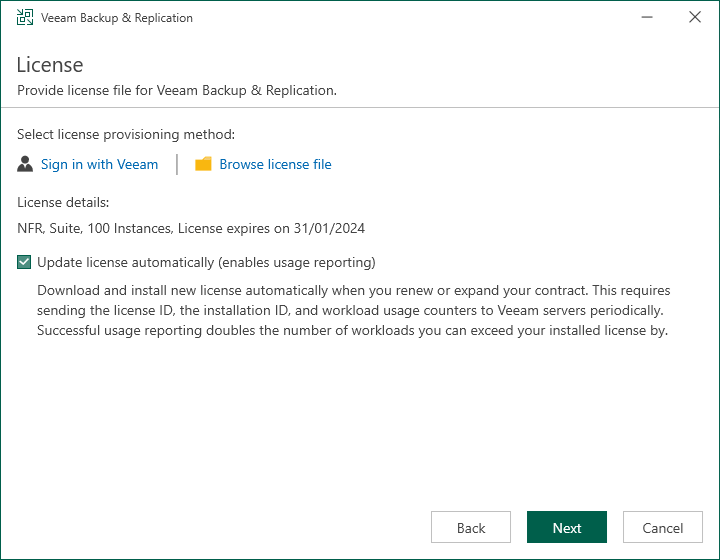

12.Click Next on the License page.

122523 2124 HowtoInstal9 - How to Install Veeam Backup and Replication 12.1

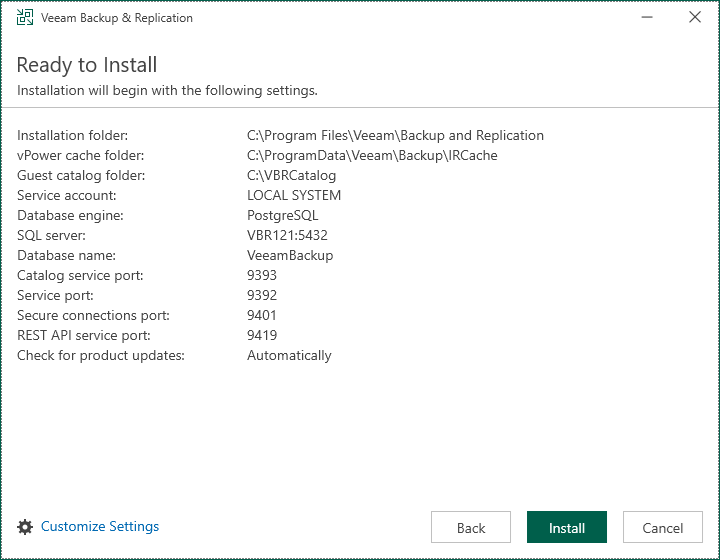

13. Click Install with the default settings on the Ready to Install page.

122523 2124 HowtoInstal10 - How to Install Veeam Backup and Replication 12.1

14.Click Customize Settings If you would like to specify custom installation settings.

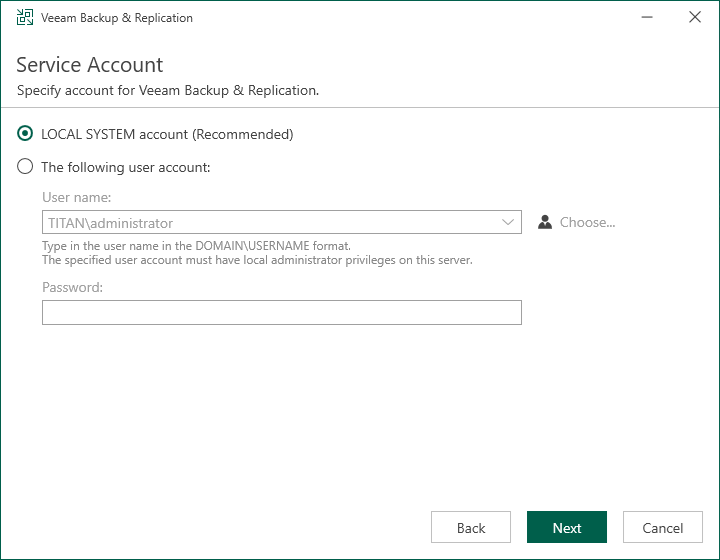

15. Select the LOCAL SYSTEM account (Recommended) or specify another user account on the Service Account page, and click Next.

122523 2124 HowtoInstal11 - How to Install Veeam Backup and Replication 12.1

Note:

The user name of the account must be specified in the DOMAIN\USERNAME format.

The user account must have the following rights and permissions:

  • The account must be a member of the Administrators group on the machine where Veeam Backup & Replication is installed.
  • The account must have db_owner rights for the configuration database.

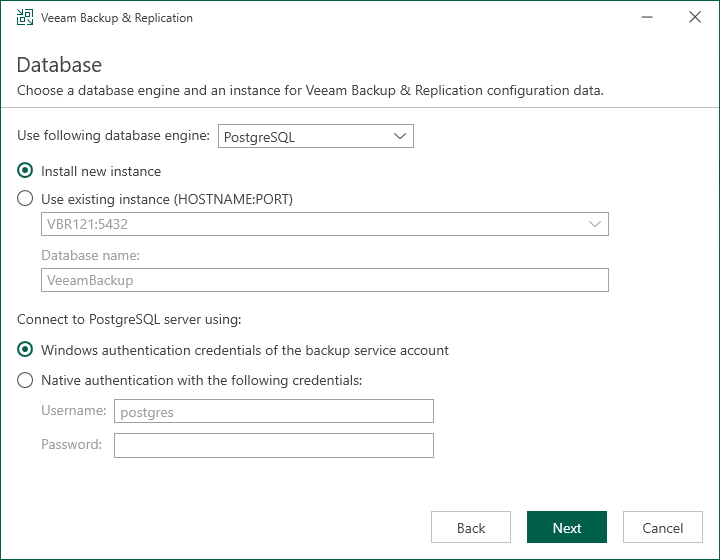

16.On the Database page, specify the database engine as PostgreSQL Server or Microsoft SQL Server.

17.If you select PostgreSQL Server and a PostgreSQL Server is not installed locally or remotely, select the Install a new instance of PostgreSQL Server.

122523 2124 HowtoInstal12 - How to Install Veeam Backup and Replication 12.1

18.If a PostgreSQL Server is installed locally or remotely, select the Use existing instance of PostgreSQL Server and enter the instance name in the HOSTNAME: Port number format. In the Database field, specify a name for the Veeam Backup & Replication configuration database.

19.Select the Windows authentication to connect to the PostgreSQL server if you use the default settings to install a new instance.

20.If you use the existing instance, select the PostgreSQL Server authentication, enter the PostgreSQL Server account credentials and click Next.

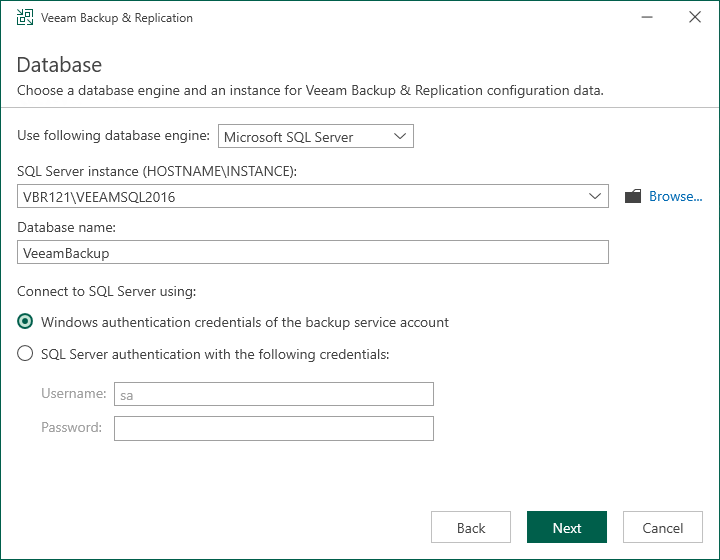

21.If you have a Microsoft SQL Server ready, select Microsoft SQL Server as the database engine on the Database page.

22.Enter the instance name in the HOSTNAME\INSTANCE format. In the Database name field, enter the name for the Veeam Backup & Replication configuration database.

23.Select an authentication mode to connect to the Microsoft SQL Server instance: Microsoft Windows or SQL Server authentication. If you select the SQL Server authentication, enter the Microsoft SQL Server account credentials and click Next.

122523 2124 HowtoInstal13 - How to Install Veeam Backup and Replication 12.1

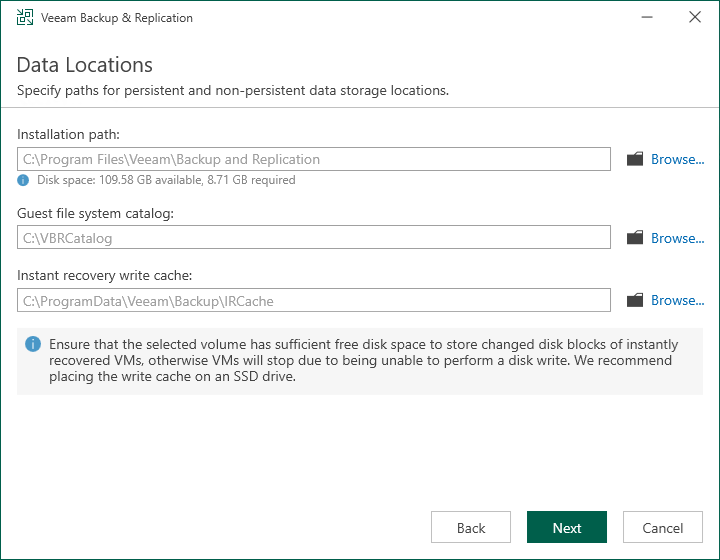

24.On the Data Locations page, select the locations for the installation path, Guest file system catalog, and Instant recovery write cache, and click Next.

Note:

Veeam recommends placing the write cache on an SSD drive and ensuring that the selected volume has sufficient free disk space to store changed blocks of instantly recovered VMs.

122523 2124 HowtoInstal14 - How to Install Veeam Backup and Replication 12.1

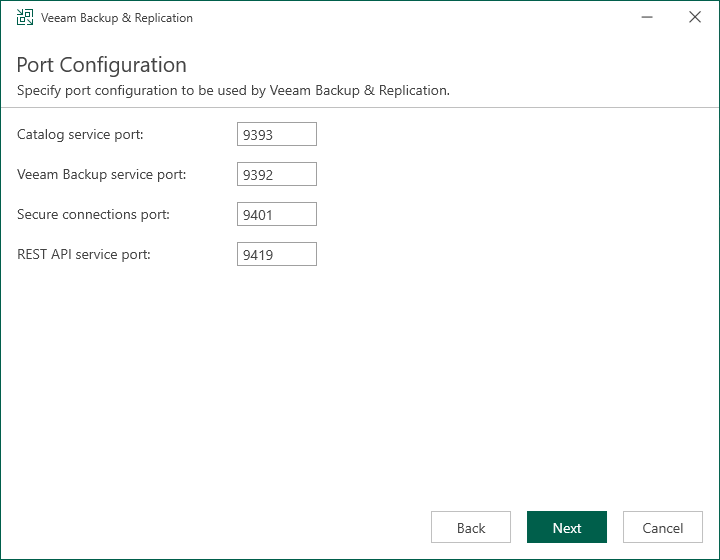

25.On the Port Configuration page, customize port number values that will be used for communication between backup infrastructure components and click Next.

122523 2124 HowtoInstal15 - How to Install Veeam Backup and Replication 12.1

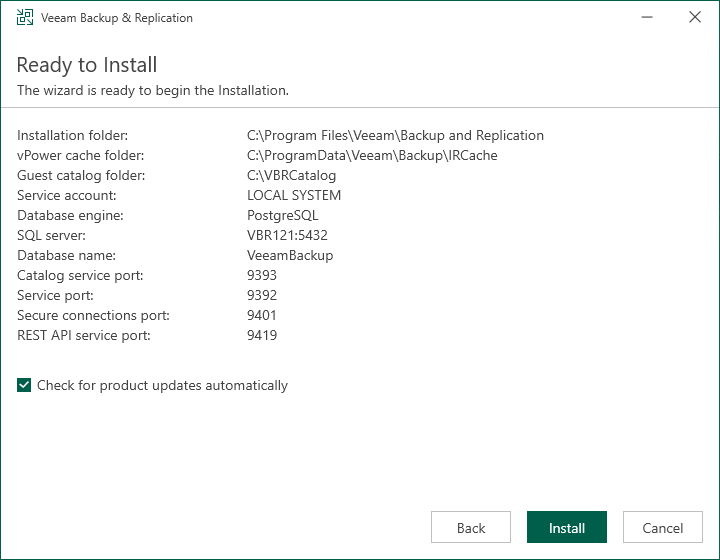

26.On the Ready to Install page, verify Veeam Backup & Replication installation settings, select Check for updates once the product is installed and periodically click Install.

122523 2124 HowtoInstal16 - How to Install Veeam Backup and Replication 12.1

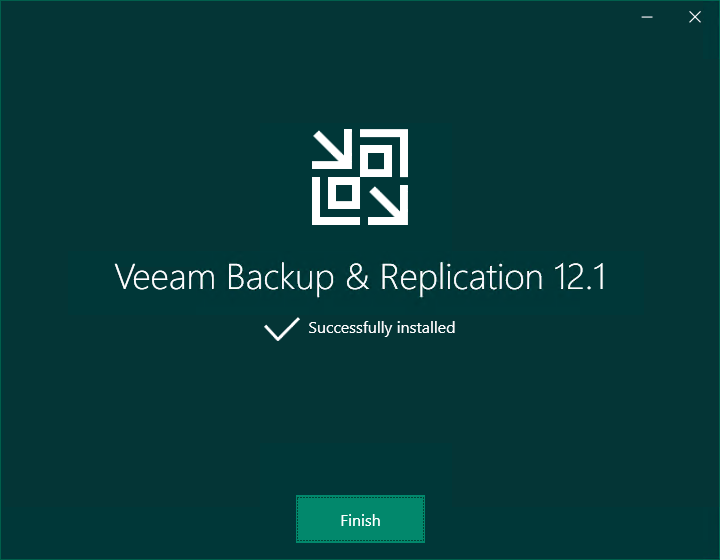

27. Click Finish on the Veeam Backup & Replication 12.1 Successfully installed page.

122523 2124 HowtoInstal17 - How to Install Veeam Backup and Replication 12.1

I hope you enjoy this post.
