The REST API and Restore Portal can be configured on a separate Server.

The REST API and Restore Portal can be configured on a separate Server. To configure this, follow the steps below.

1. Log in to Veeam Backup for Microsoft 365 Manager server.

2. Open Veeam Backup for Microsoft 365 console.

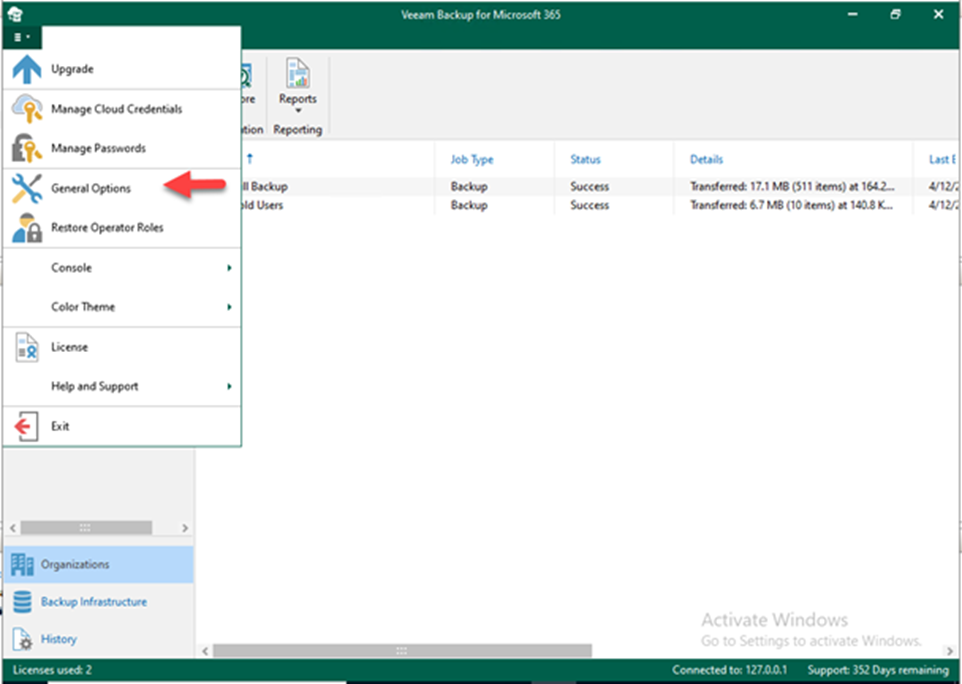

3. On the Veeam Backup for Microsoft 365 console page, click General Options in the main menu.

020523 0609 Howtoconfig1 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

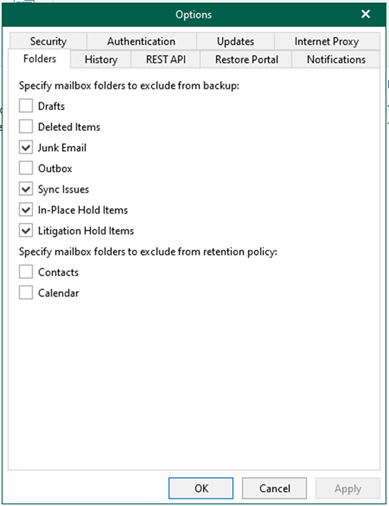

4. On the Options page, select Authentication.

020523 0609 Howtoconfig2 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

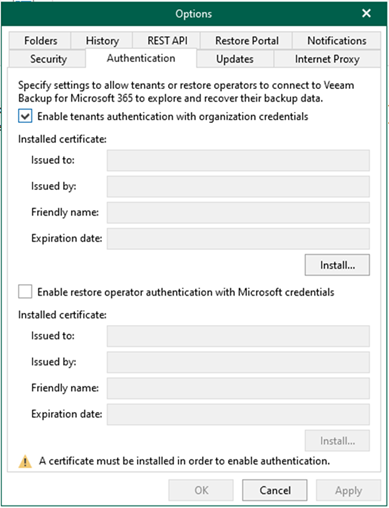

5. Select Enable tenants authentication with organization credentials on the Authentication page and click Install to install the certificate.

020523 0609 Howtoconfig3 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

6. On the Select certificate type page, select the specified certificate for encrypted SSL connection and click Next. In my case, select Generate new self-signed certificate.

020523 0609 Howtoconfig4 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

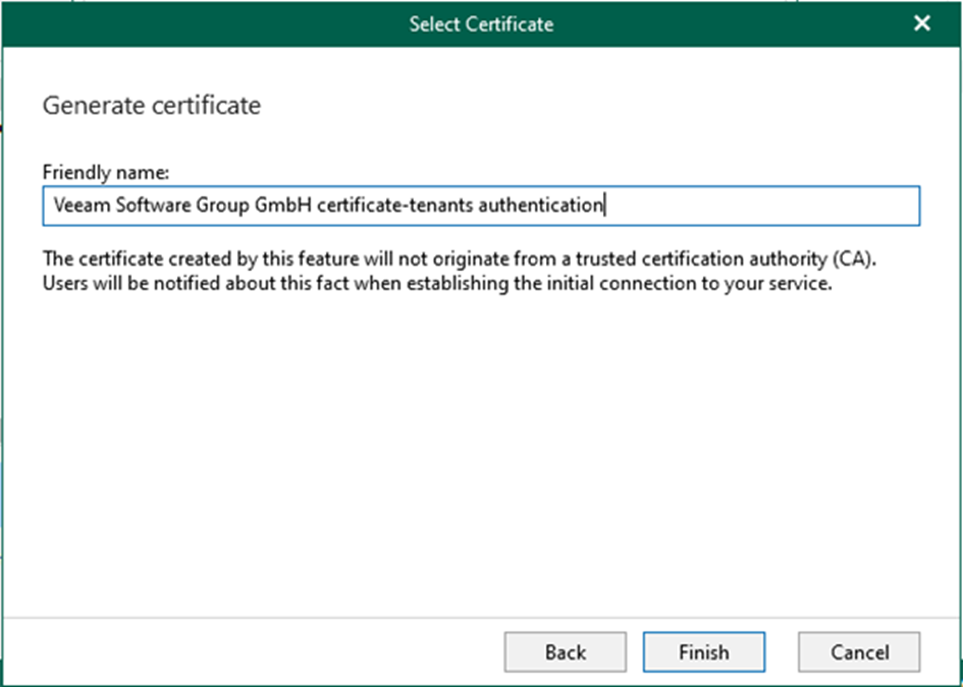

7. On the Generate Certificate page, enter the specific name for the certificate in the Friendly name field and click Finish.

020523 0609 Howtoconfig5 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

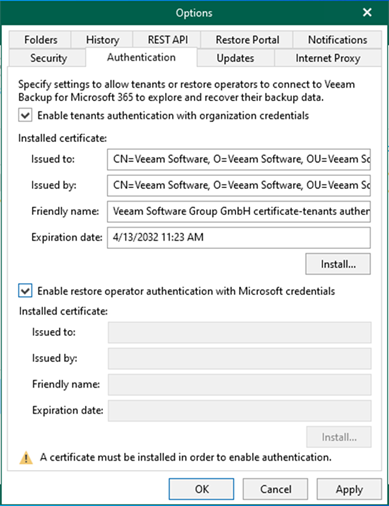

8. Select Enable restores authentication with Microsoft credentials and click Install to install the certificate on the Authentication page.

020523 0609 Howtoconfig6 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

9. On the Select certificate type page, select the specified certificate for encrypted SSL connection and click Next. In my case, select Generate a new self-signed certificate.

020523 0609 Howtoconfig7 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

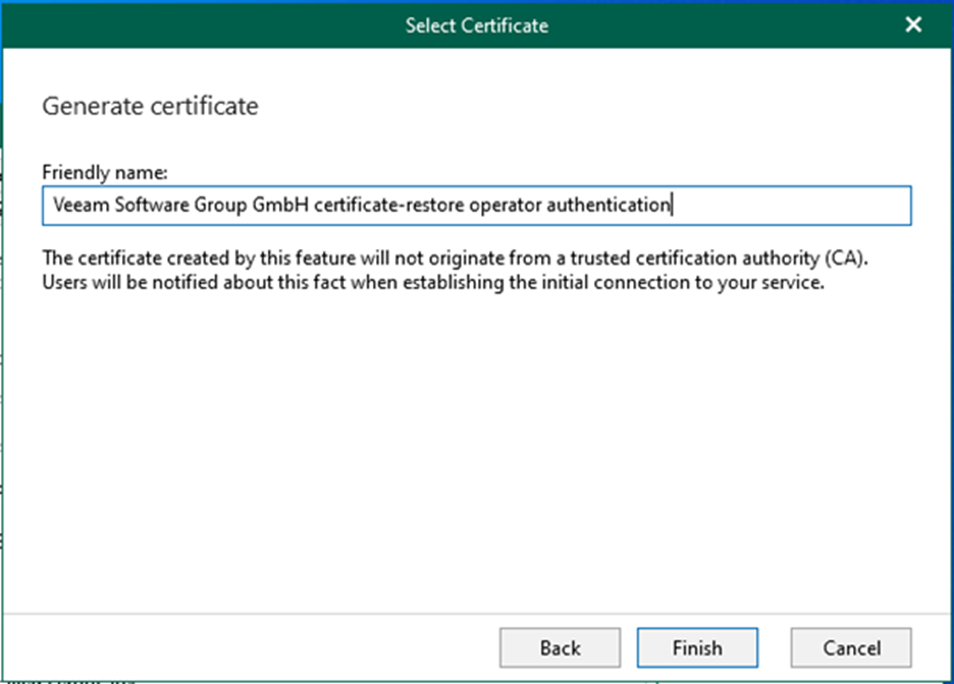

10. On the Generate Certificate page, enter the specific name for the certificate in the Friendly name field and click Finish.

020523 0609 Howtoconfig8 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

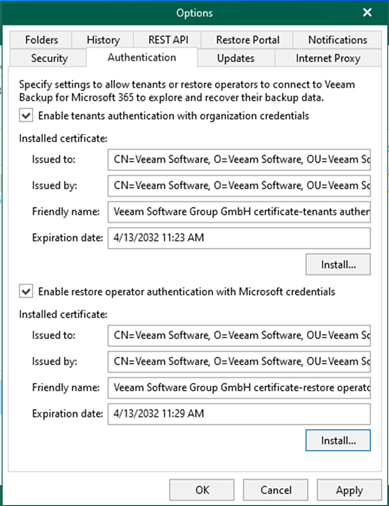

11. On the Authentication page, click OK.

Note:

Suppose you are going to generate a new self-signed certificate for restore operators. You must import this certificate to the Trusted Root Certification Authorities certificate store on the Veeam Backup for Microsoft 365 REST API server with REST API installed.

020523 0609 Howtoconfig9 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

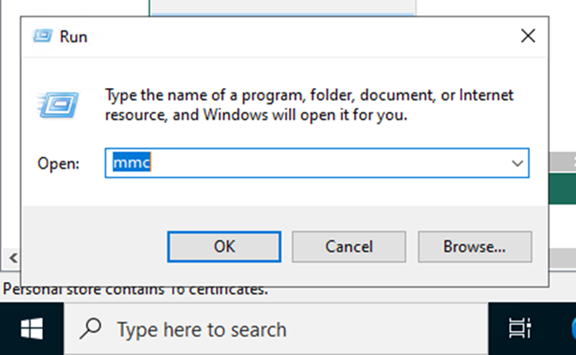

12. Open the MMC.

020523 0609 Howtoconfig10 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

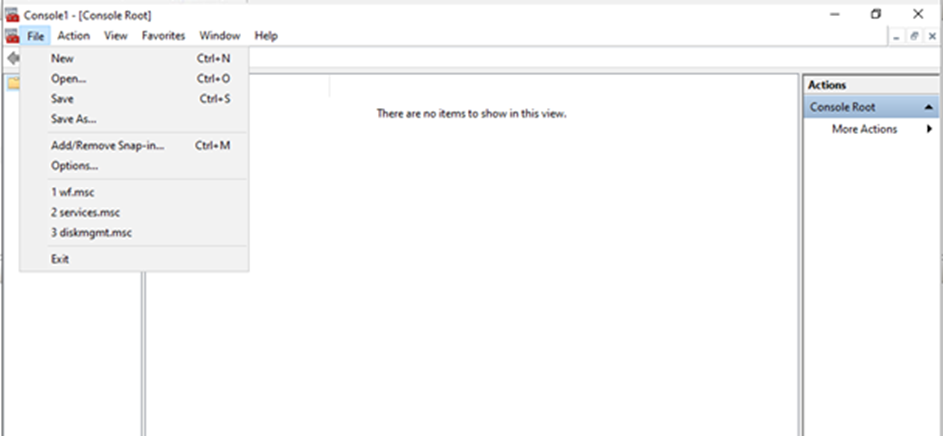

13. On the MMC Console, drop-down File, select Add / Remove Snap-In.

020523 0609 Howtoconfig11 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

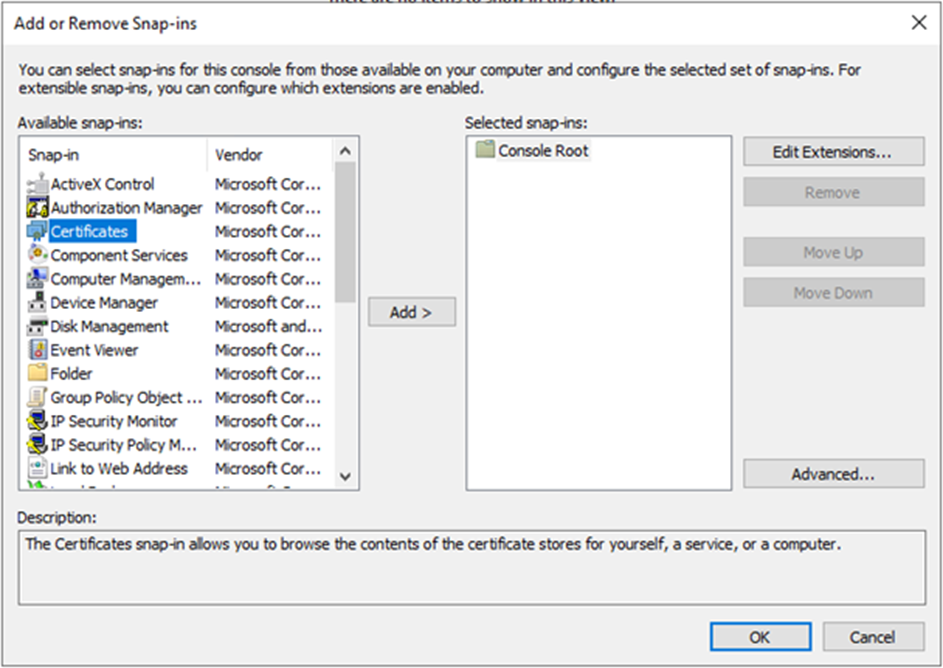

14. On Add or Remove Snap-in page, select Certificates, and click Add.

020523 0609 Howtoconfig12 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

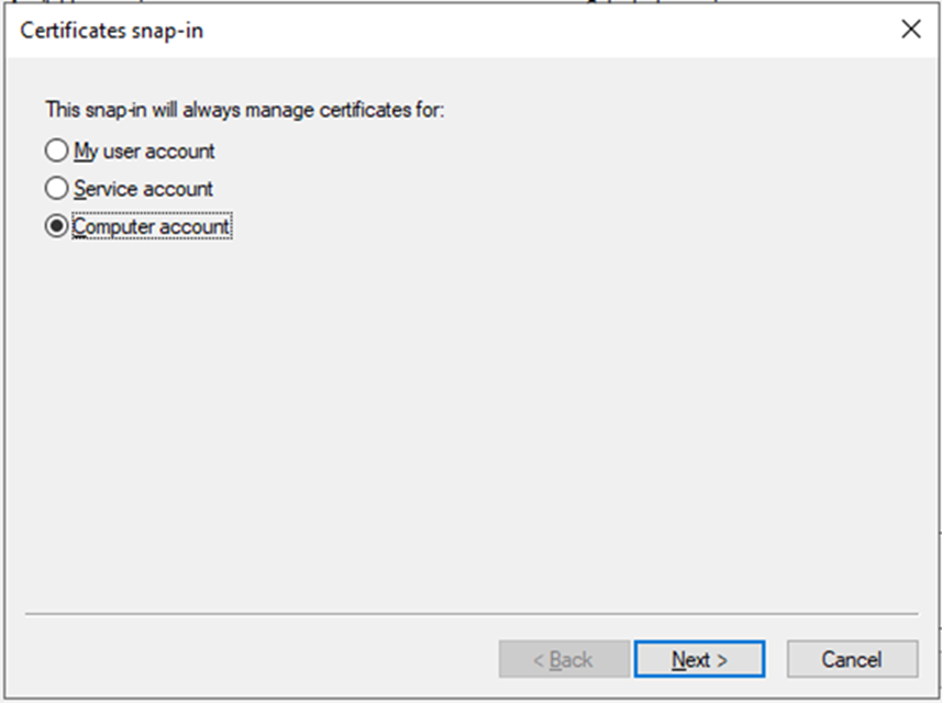

15. On the Certificates snap-in page, select Computer account and click Next.

020523 0609 Howtoconfig13 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

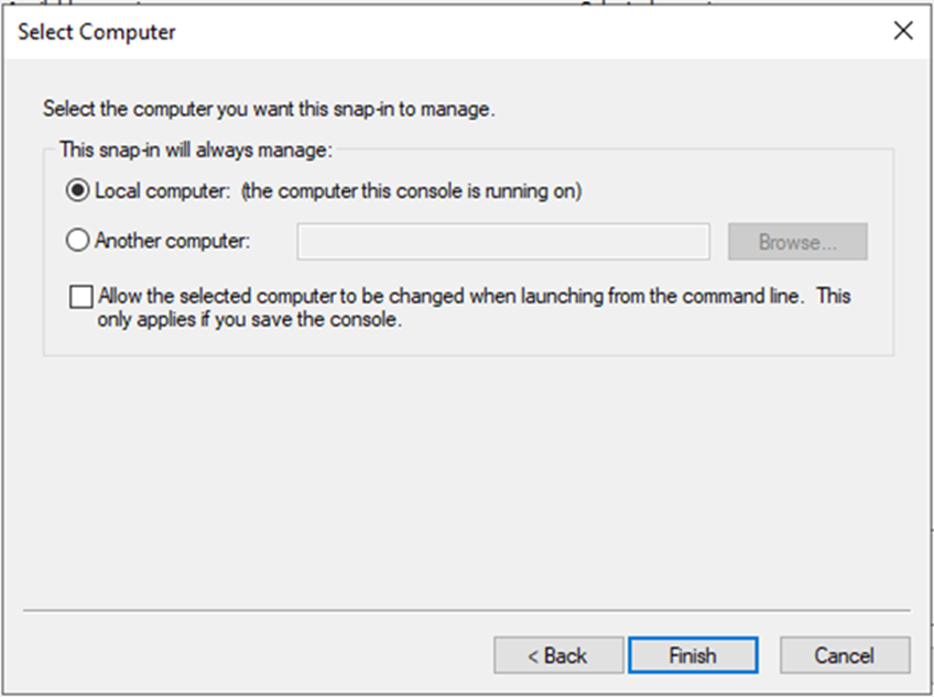

16. Select Local Computer and click Finish on the Select Computer page.

020523 0609 Howtoconfig14 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

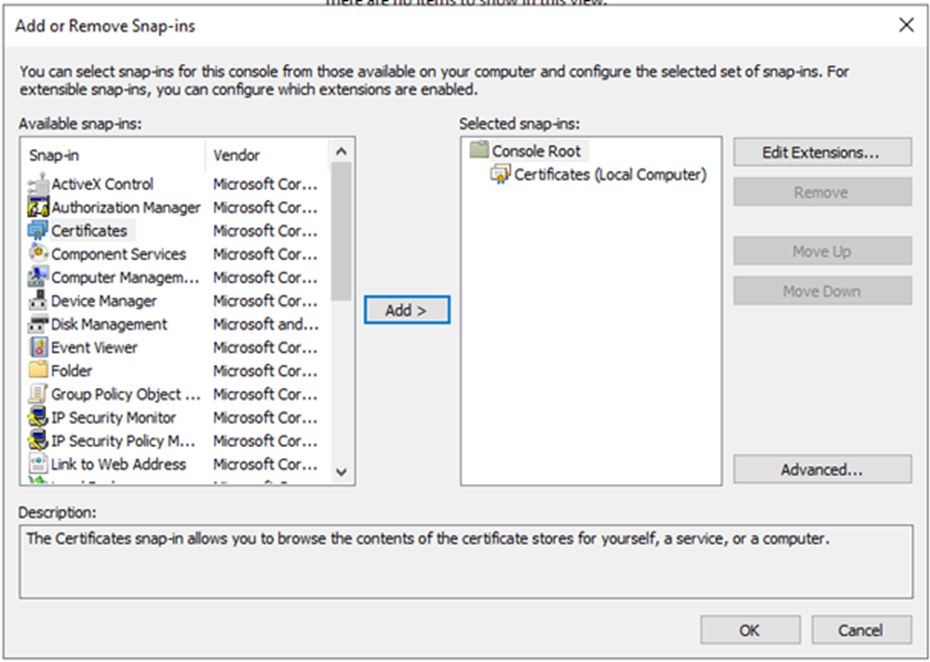

17. On Add or Remove Snap-in page, click OK.

020523 0609 Howtoconfig15 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

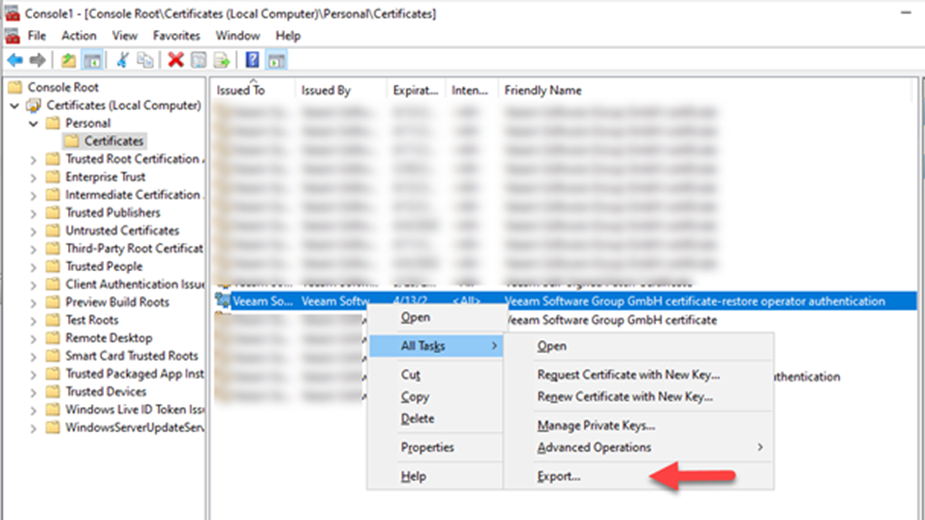

18. Expand Certificates, expand Personal, and select Certificates. Right-click Veeam Software Group GmbH certificate-restore operator certificate.

19. Select All Tasks and click Export.

020523 0609 Howtoconfig16 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

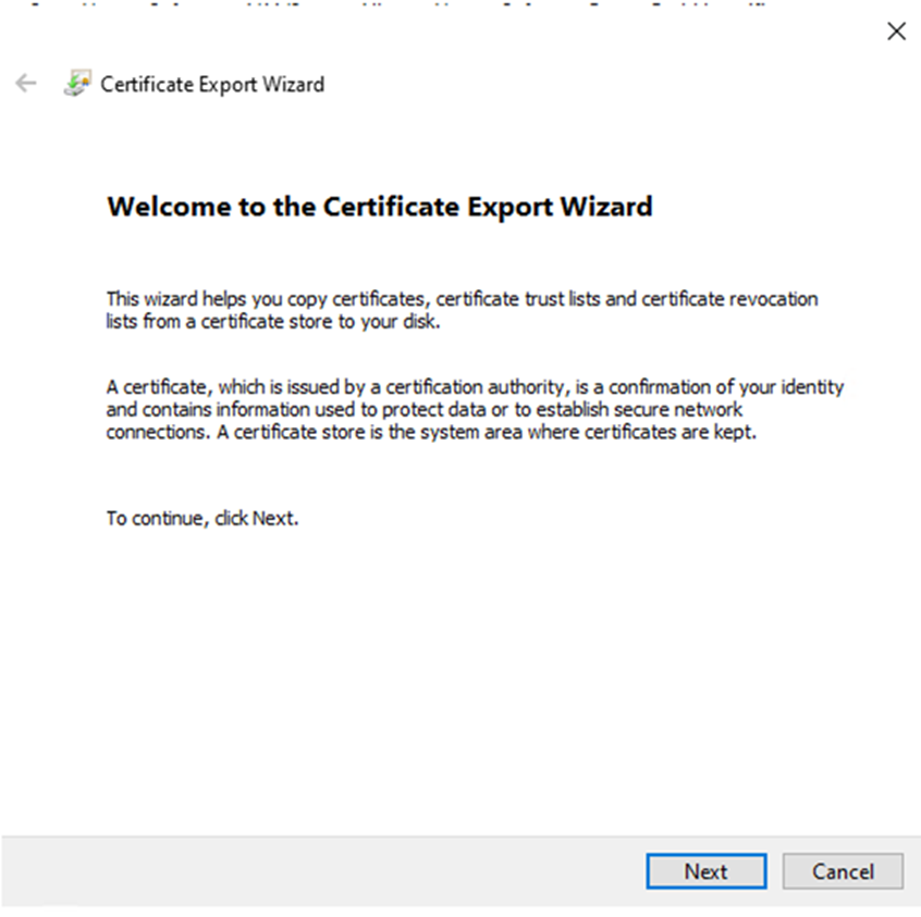

20. On the Welcome to the Certificate Export Wizard page, click Next.

020523 0609 Howtoconfig17 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

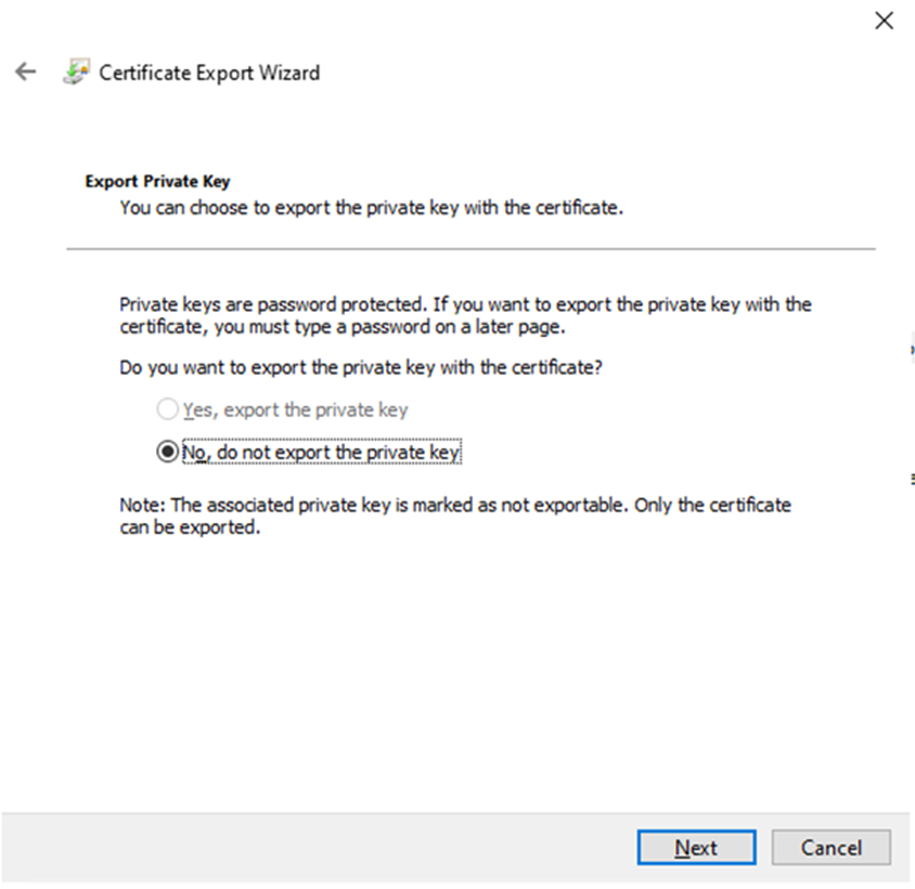

21. On the Export Private Key page, click Next.

020523 0609 Howtoconfig18 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

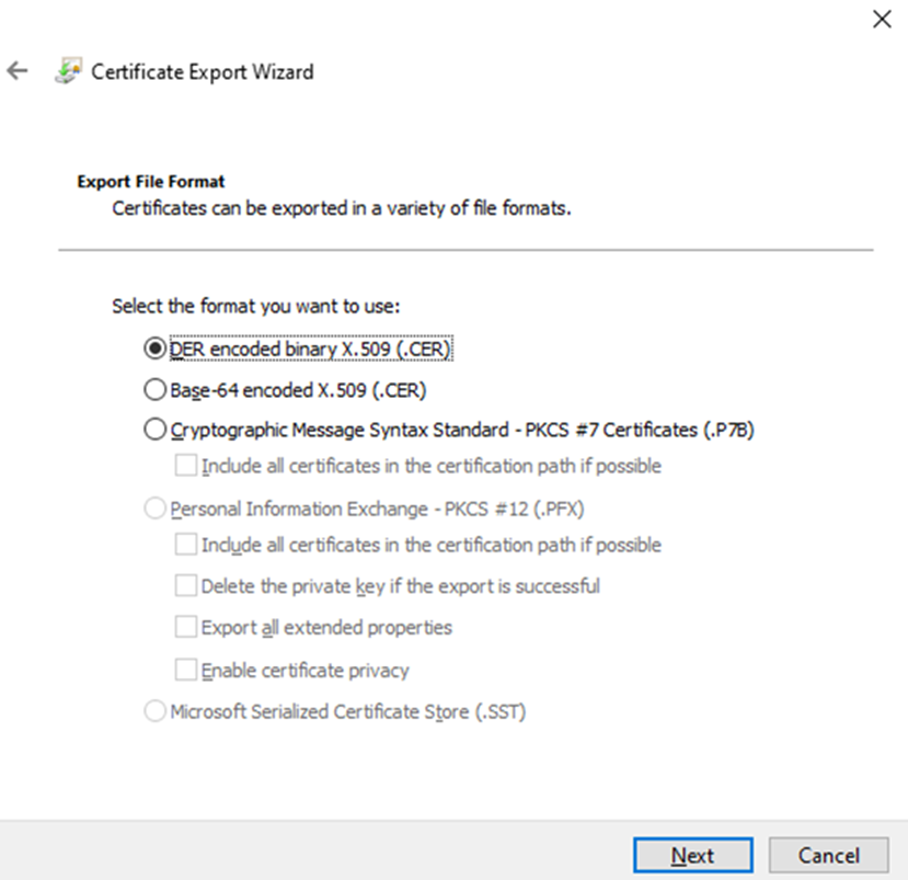

22. On the Export File Format page, click Next.

020523 0609 Howtoconfig19 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

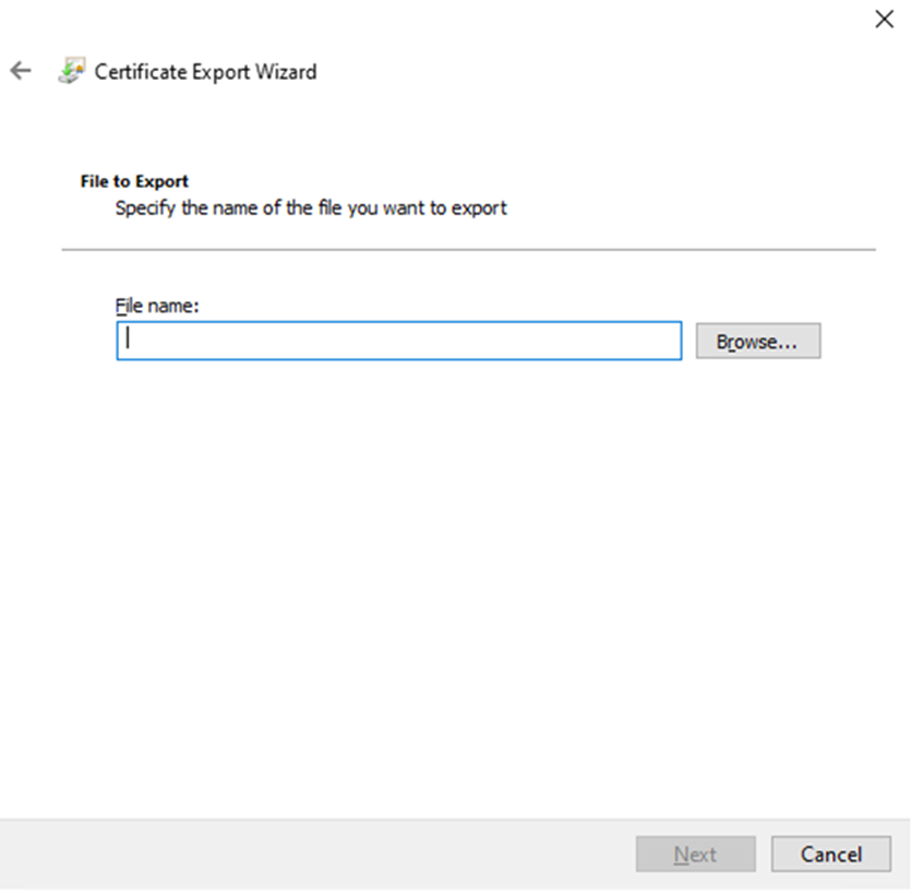

23. On the File to Export page, click Browse.

020523 0609 Howtoconfig20 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

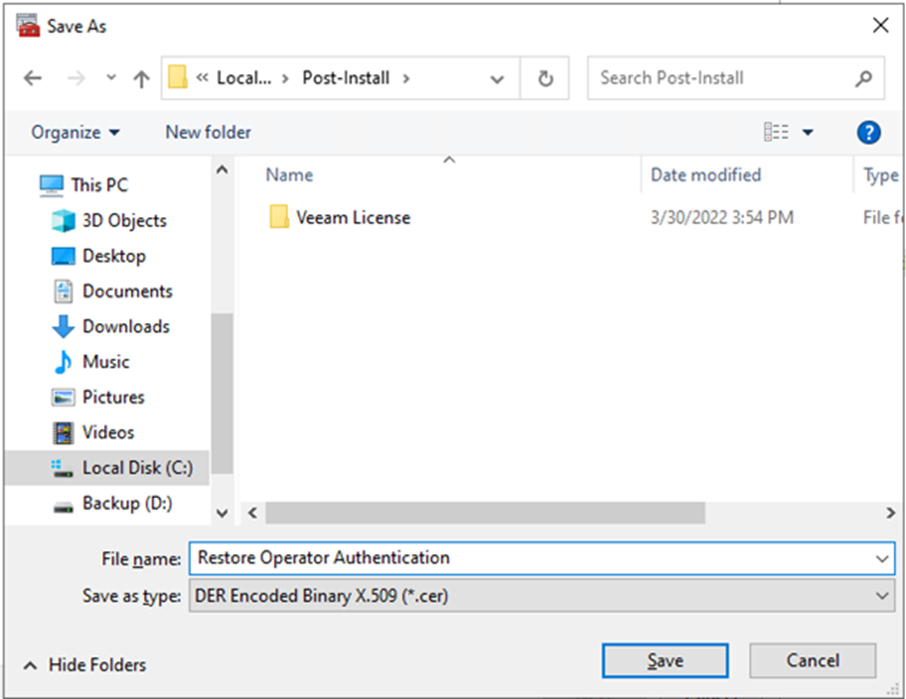

24. Type Restore Operator Authentication and click Save.

020523 0609 Howtoconfig21 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

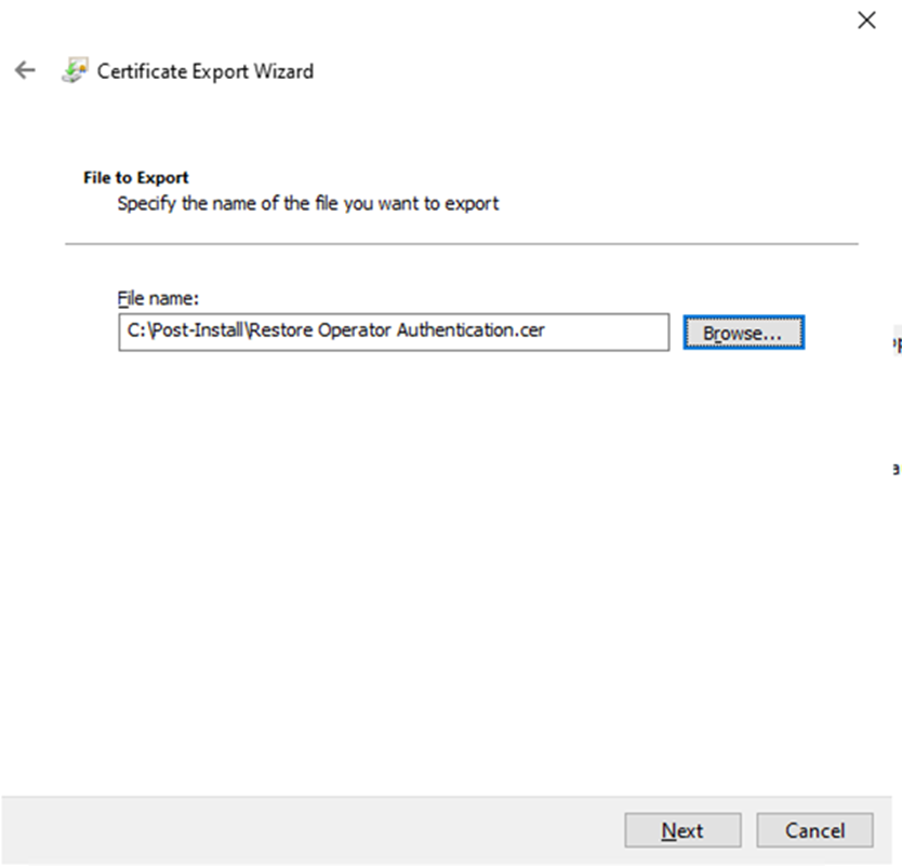

25. On the Certificate Export Wizard, click Next.

020523 0609 Howtoconfig22 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

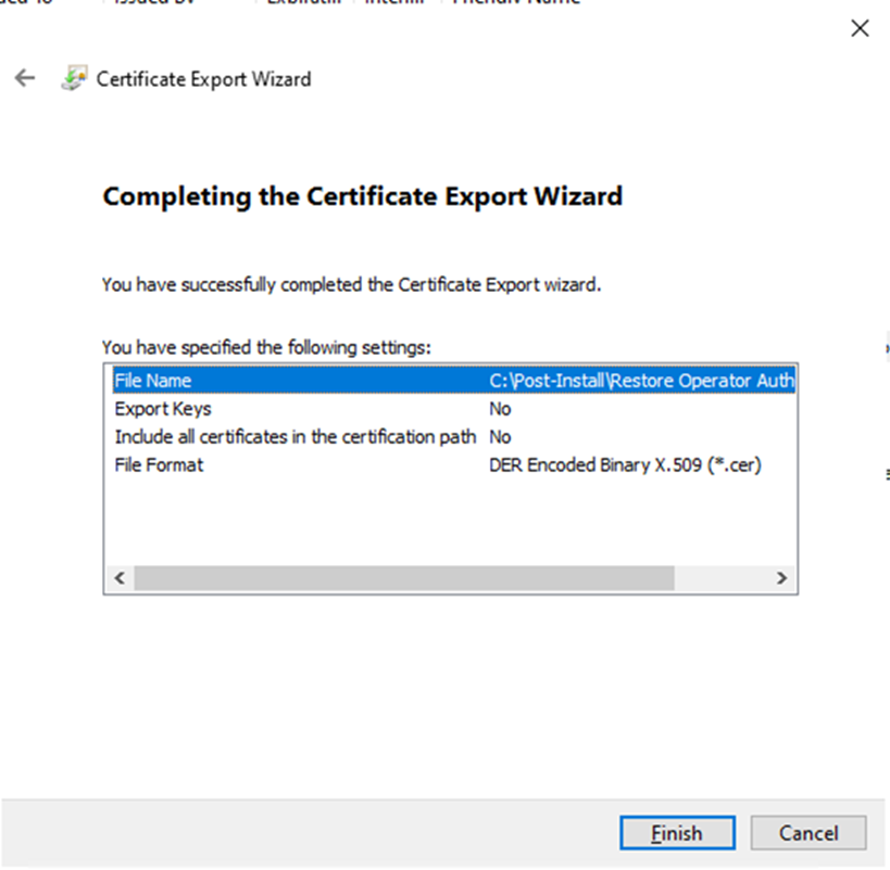

26. On the Completing the Certificate Export Wizard page, click Finish.

020523 0609 Howtoconfig23 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

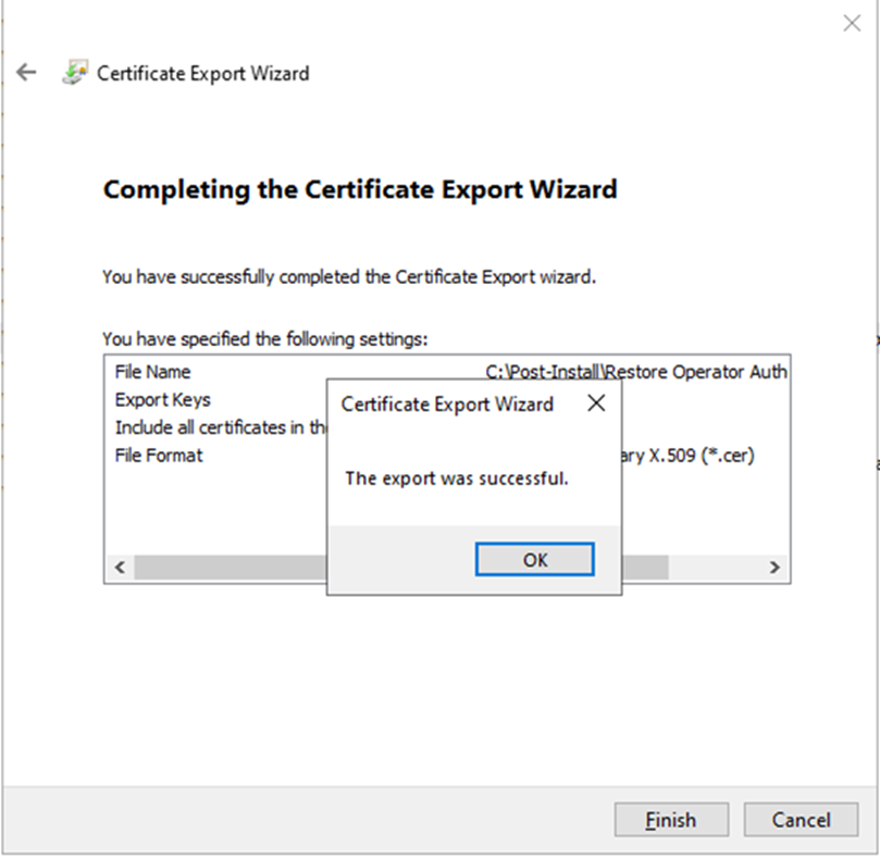

27. Ensure the export was successful and click OK.

020523 0609 Howtoconfig24 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

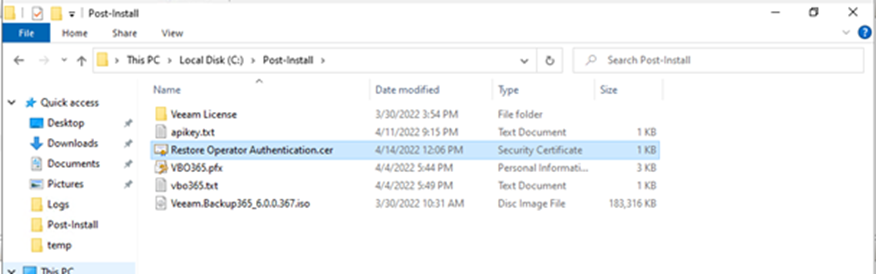

28. Copy the export certificate file to the Veeam Backup for Microsoft 365 REST API server.

020523 0609 Howtoconfig25 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

29. Log in to Veeam Backup for Veeam Microsoft 365 REST API server.

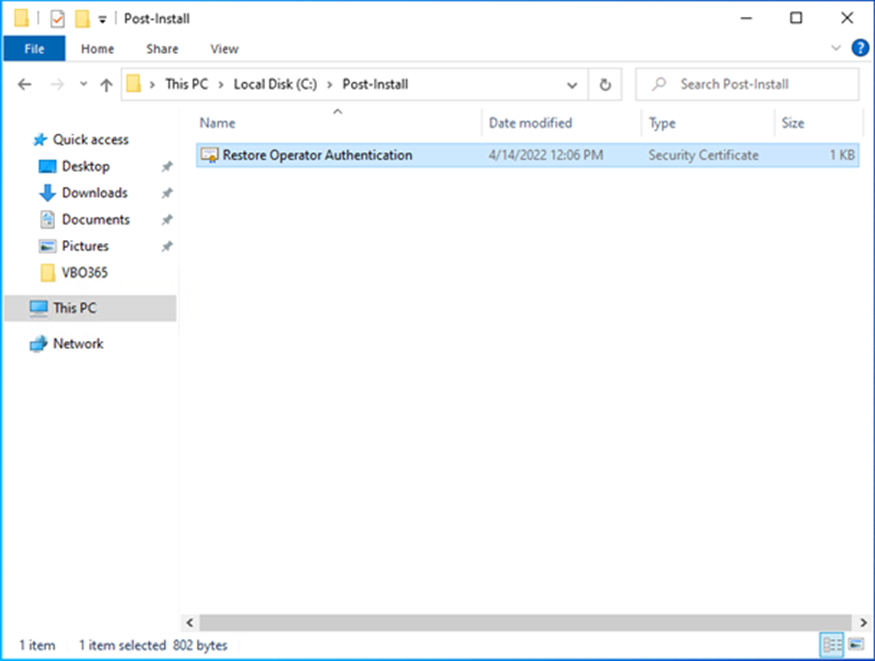

30. Double-click the certificate file you copy from Veeam Backup for the Microsoft 365 Manager server.

020523 0609 Howtoconfig26 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

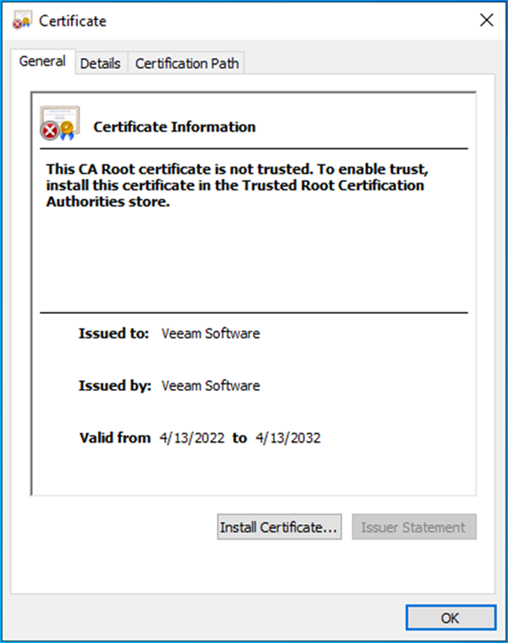

31. On the Certificate page, Install Certificate.

020523 0609 Howtoconfig27 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

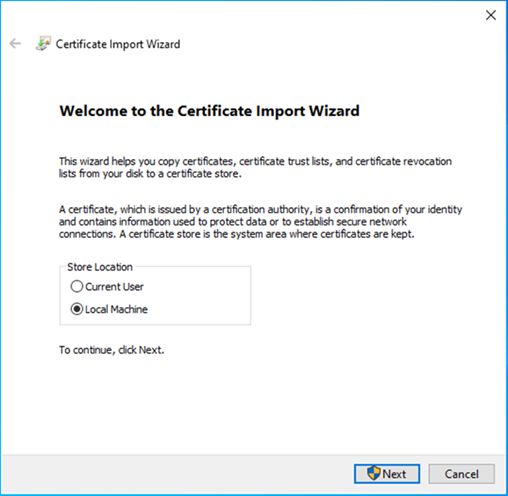

32. On the Welcome to the Certificate Import Wizard page, select Local Machine and click Next.

020523 0609 Howtoconfig28 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

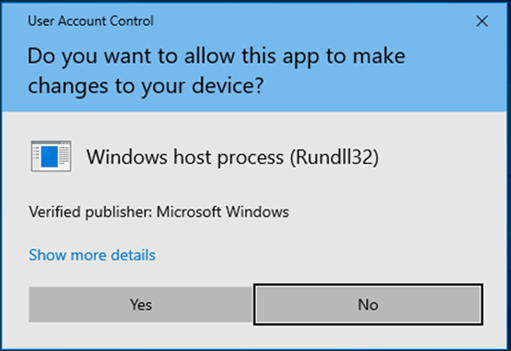

33. On the User Account Control page, click Yes.

020523 0609 Howtoconfig29 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

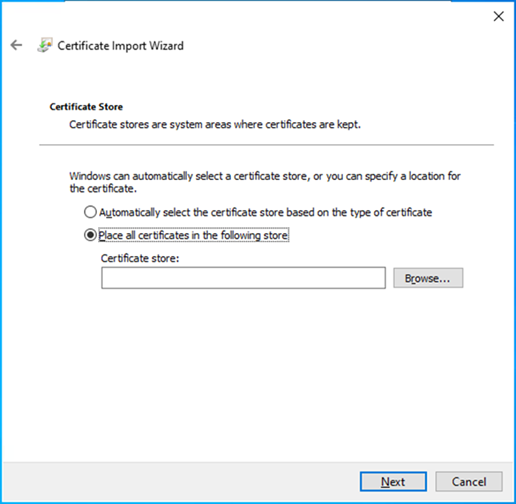

34. Select Place all certificates in the following store on the Certificate Store page and click Browse.

020523 0609 Howtoconfig30 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

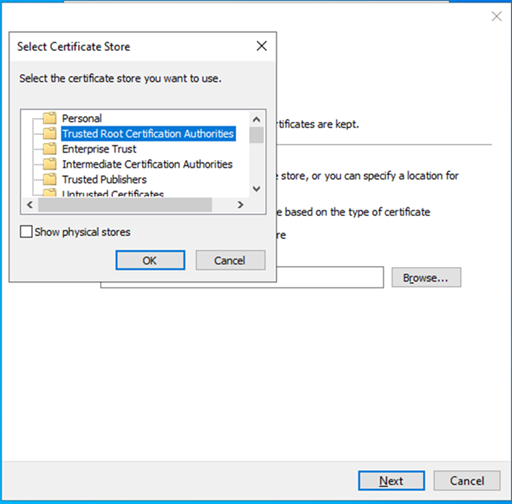

35. Select Trusted Root Certificate Authorities and click OK on the Select Certificate Store page.

020523 0609 Howtoconfig31 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

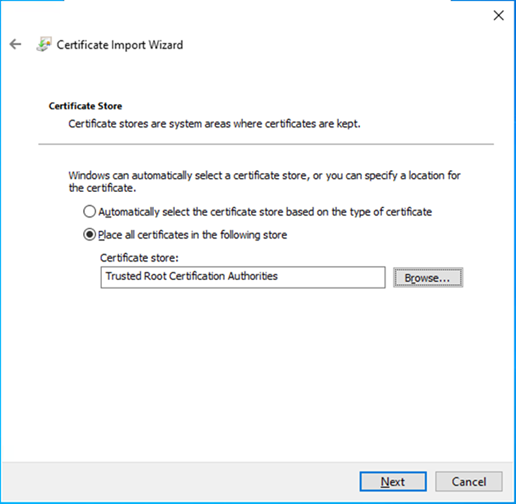

36. On the Certificate Store page, click Next.

020523 0609 Howtoconfig32 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

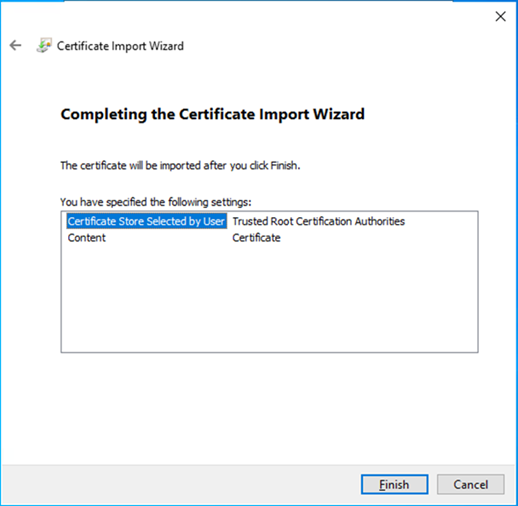

37. On the Completing the Certificate Import Wizard page, click Finish.

020523 0609 Howtoconfig33 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

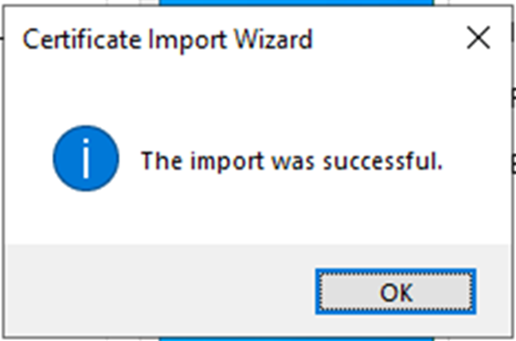

38. Ensure the Import was successful and click OK.

020523 0609 Howtoconfig34 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

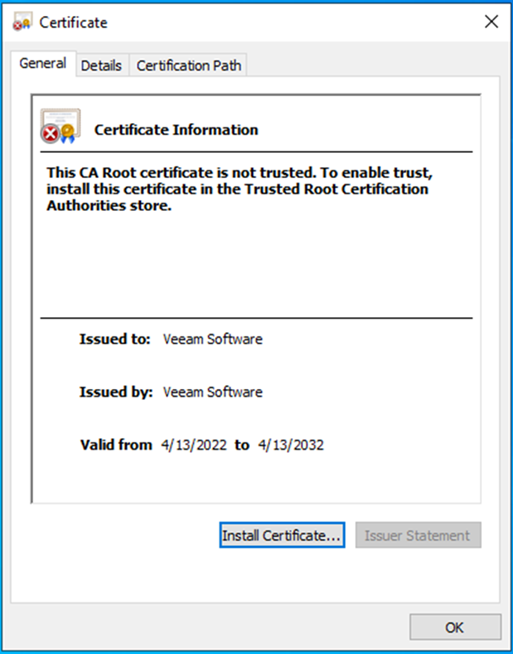

39. On the Certificate page, click OK.

020523 0609 Howtoconfig35 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

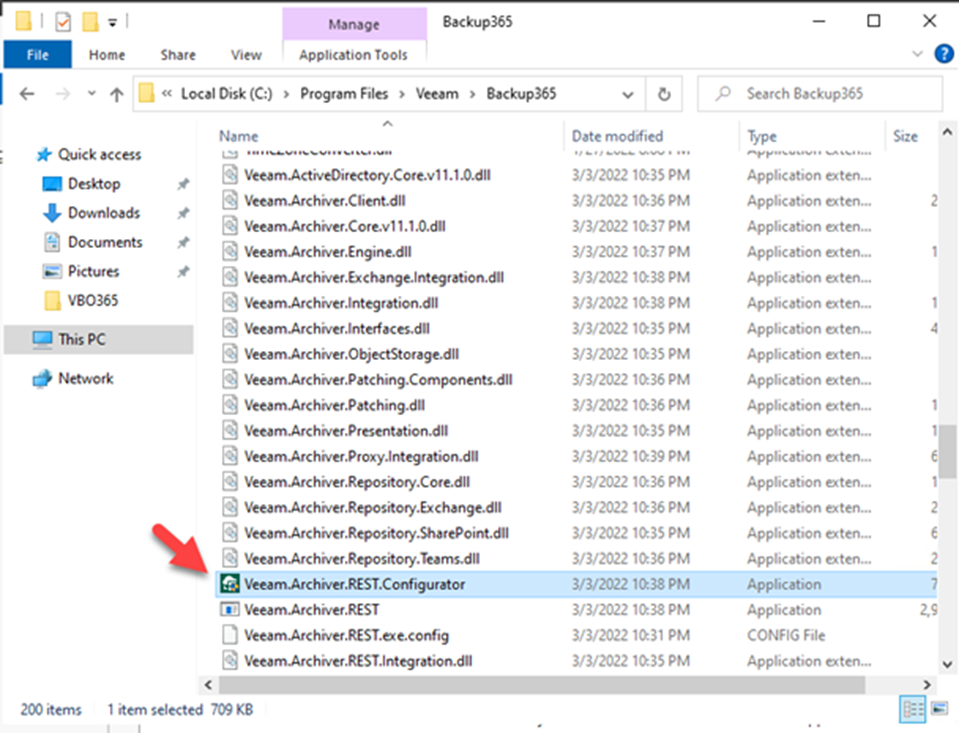

40. Open the Veeam Backup for the Microsoft 365 REST API component installation folder and run the Veeam.Archiver.REST.Configurator.exe file.

020523 0609 Howtoconfig36 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

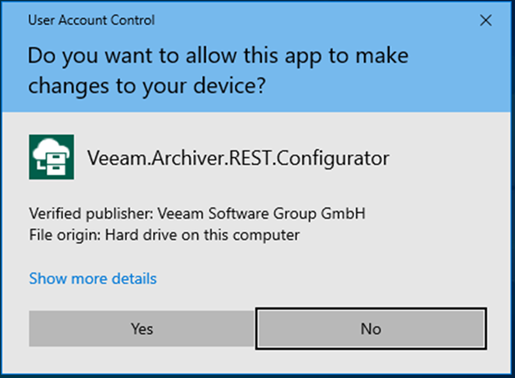

41. On the User Account Control page, click Yes.

020523 0609 Howtoconfig37 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

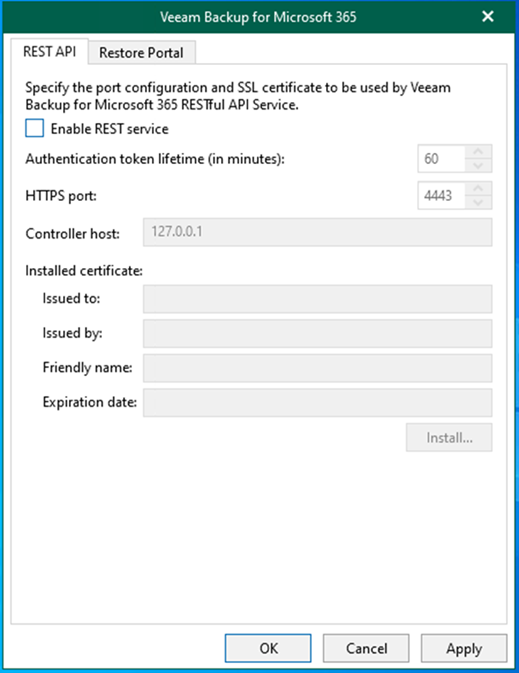

42. On the Veeam Backup for Microsoft 365 page, select REST API.

020523 0609 Howtoconfig38 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

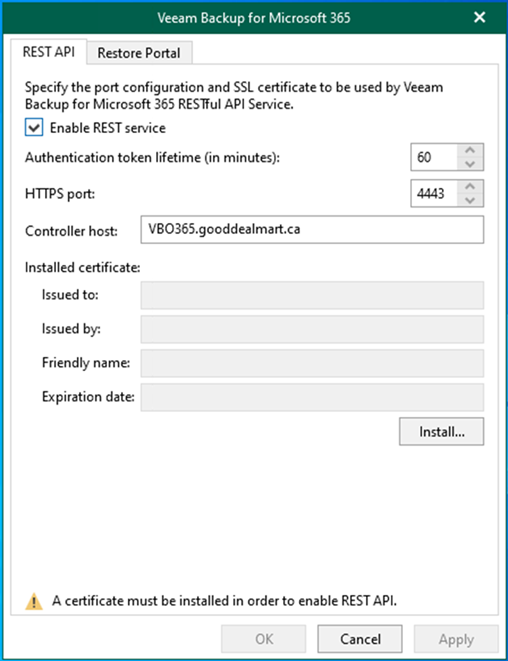

43. On the REST API page, select Enable REST service.

44. In the Authentication token lifetime field, type 60.

45. In the HTTPS port field, specify a port number that Veeam Backup for Microsoft 365 uses to access the Veeam Backup for Microsoft 365 RESTful API Service.

46. In the Controller host field, specify a DNS name or IP address of the Veeam Backup for the Microsoft 365 server.

47. Click Install to specify an SSL certificate.

020523 0609 Howtoconfig39 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

48. On the Select certificate type page, select the specified certificate for encrypted SSL connection and click Next. In my case, select Generate a new self-signed certificate.

020523 0609 Howtoconfig40 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

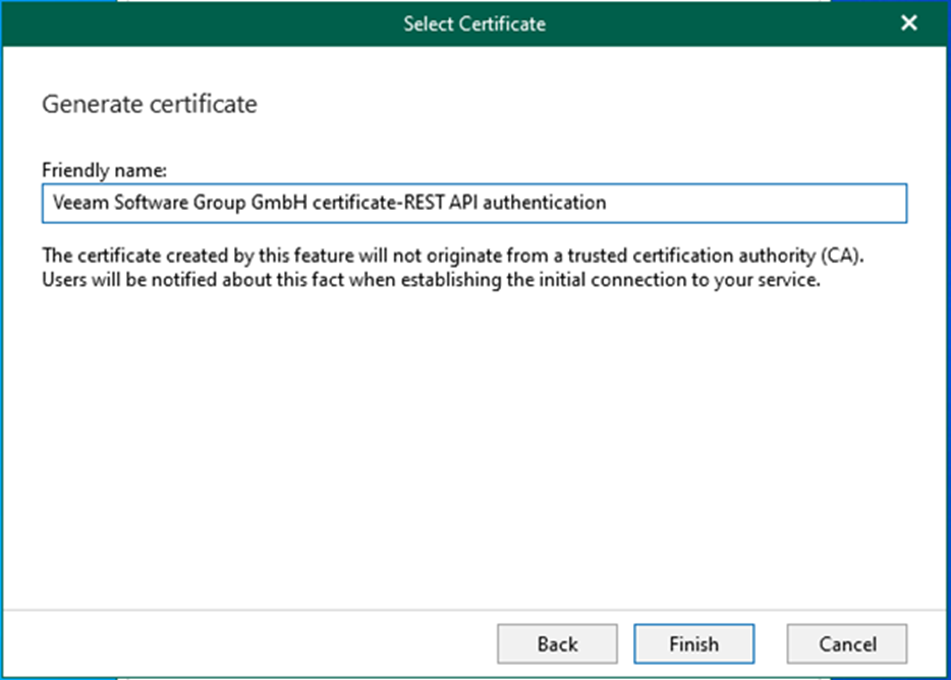

49. On the Generate Certificate page, enter the specific name for the certificate in the Friendly name field and click Finish.

020523 0609 Howtoconfig41 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

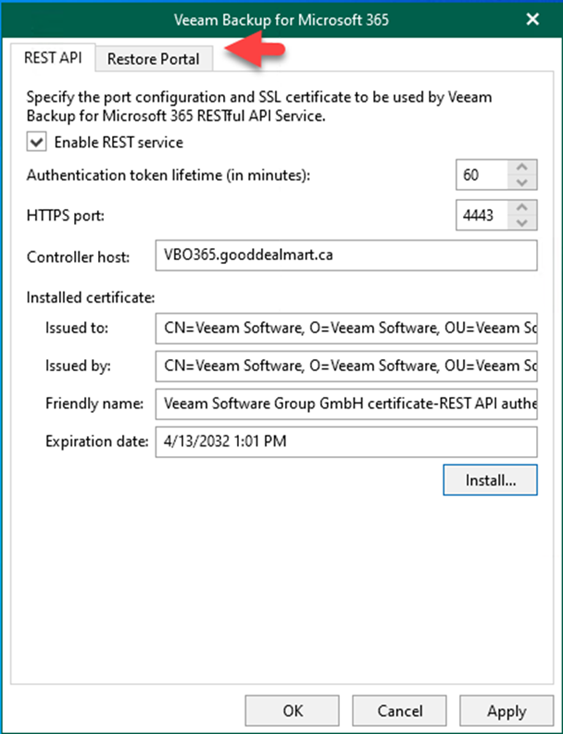

50. On the Veeam Backup for Microsoft 365 page, select Restore Portal.

020523 0609 Howtoconfig42 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

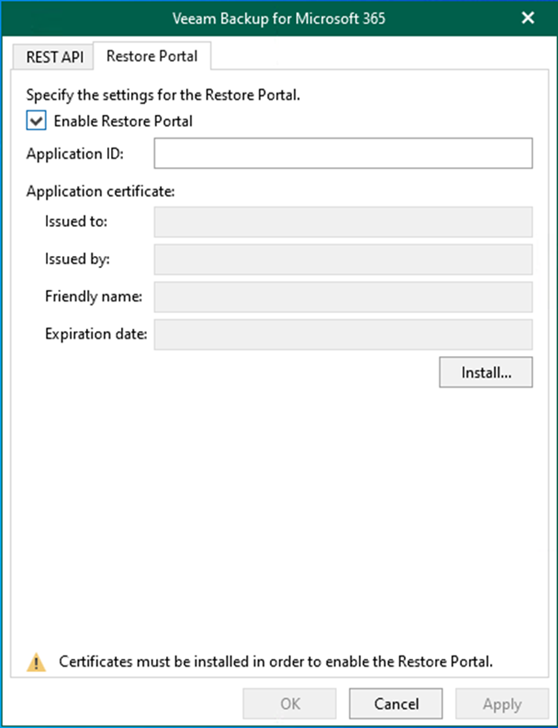

51. On the Restore Portal page, select Enable Restore Portal.

020523 0609 Howtoconfig43 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

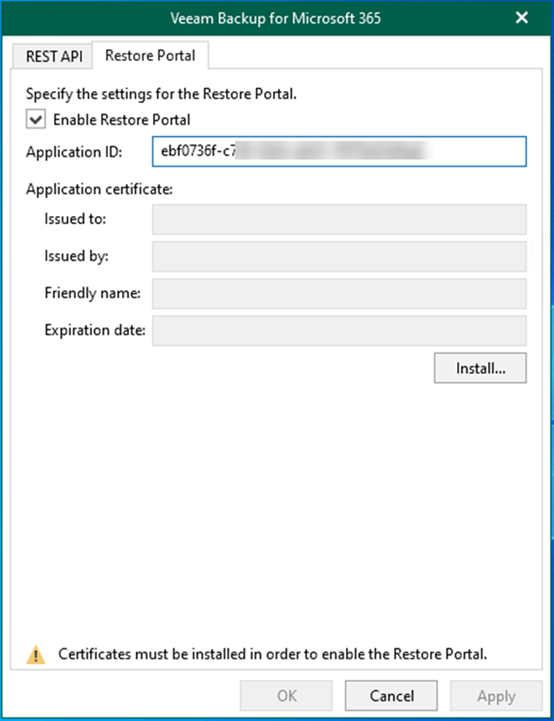

52. Enter the Azure AD Application ID. (you can check it from the Veeam Manager server or Azure portal)

53. In the Certificate to authenticate with the Azure AD field, click Install.

020523 0609 Howtoconfig44 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

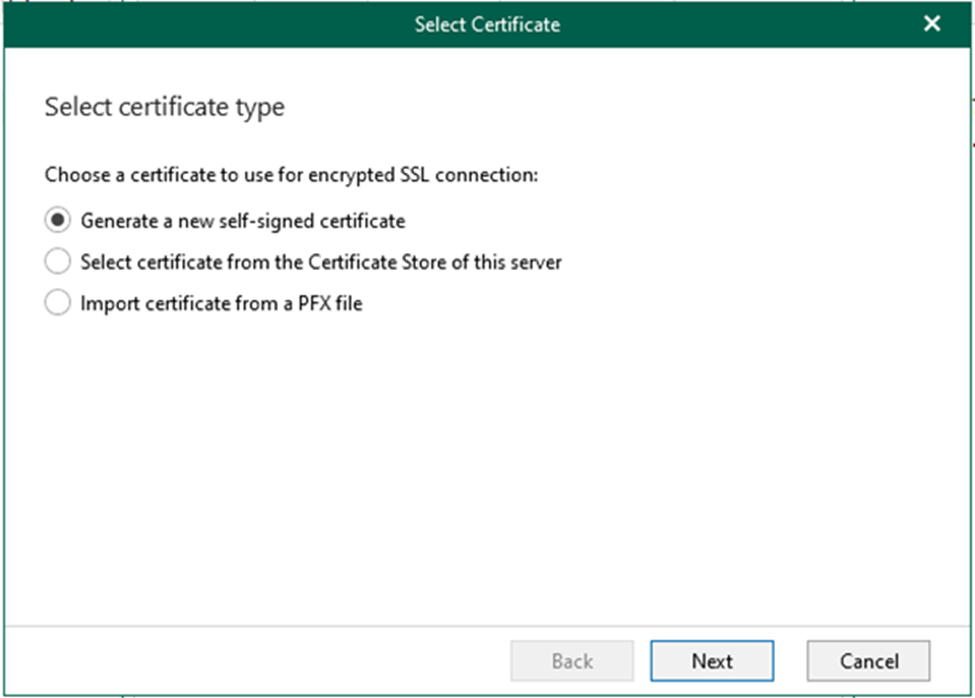

54. On the Select certificate type page, select the specified certificate for encrypted SSL connection and click Next. In my case, select Generate a new self-signed certificate.

020523 0609 Howtoconfig45 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

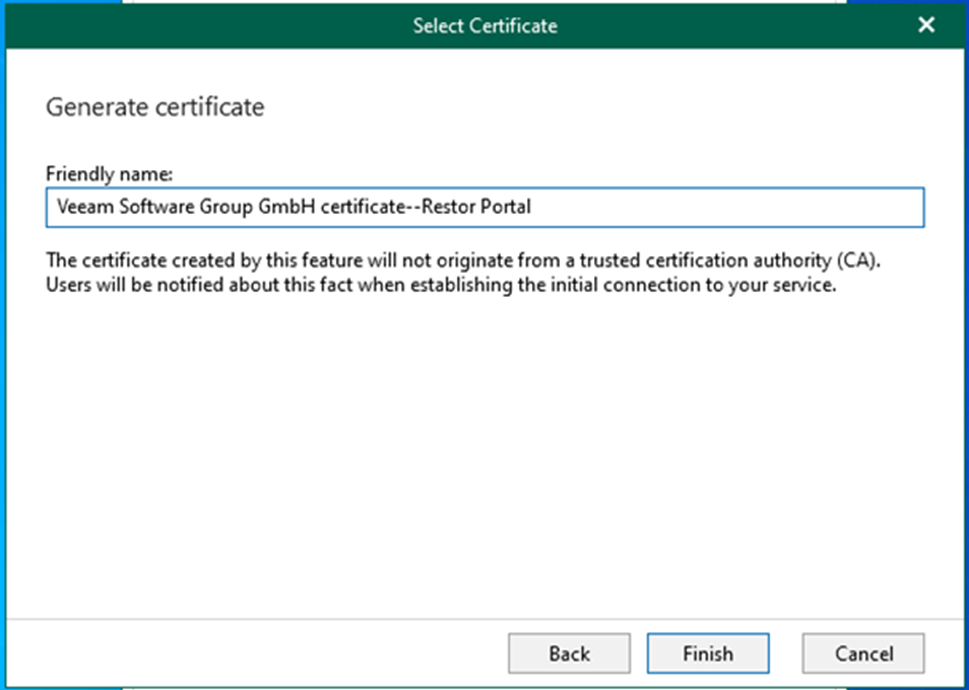

55. On the Generate Certificate page, enter the specific name for the certificate in the Friendly name field and click Finish.

020523 0609 Howtoconfig46 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6

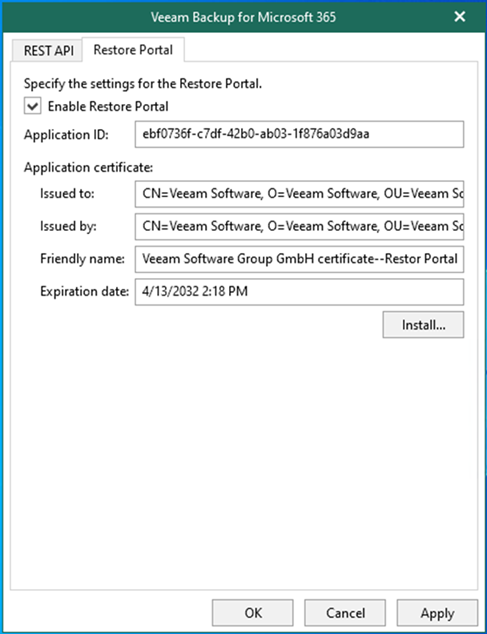

56. Click OK.

020523 0609 Howtoconfig47 - How to configure the REST API and Restore Portal on a separate server for Veeam Backup for Microsoft 365 v6
