December 13, 2024
You must add the Microsoft Hyper-V clusters you plan to use as source and target for backup, replication and other activities.

You must add the Microsoft Hyper-V clusters you plan to use as source and target for backup, replication and other activities.

1. Log in to the Veeam Backup and replication manager server.

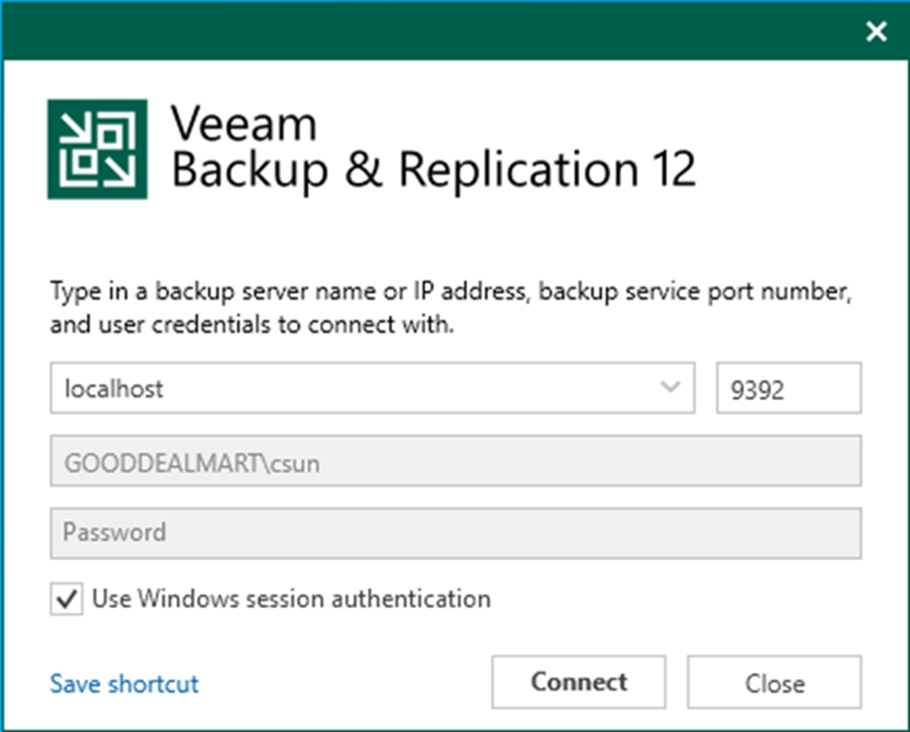

2. Open the Veeam Backup & Replication Console, and click Connect.

082323 1729 HowtoaddMic1 - How to add Microsoft Hyper-V Clusters to Veeam Backup and Replication v12

3. On the Home page, select Inventory.

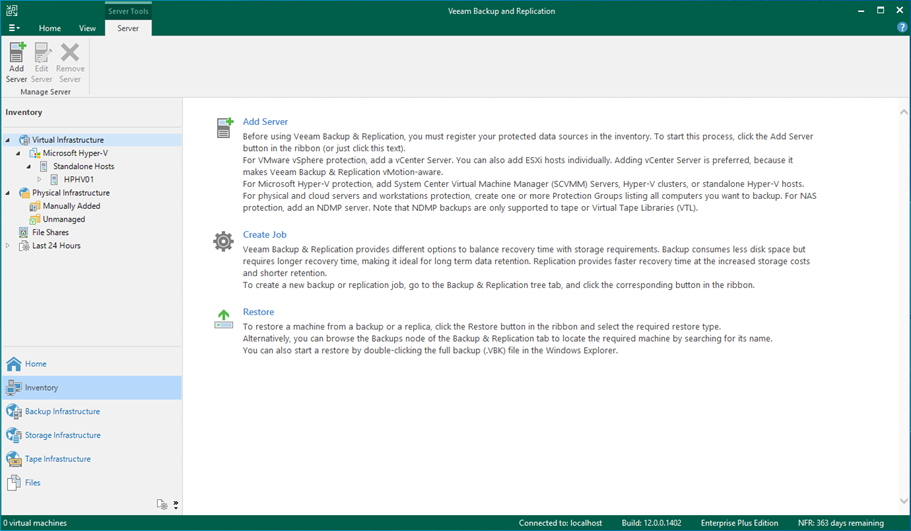

4. On the Inventory page, select Virtual Infrastructure and click Add Server.

082323 1729 HowtoaddMic2 - How to add Microsoft Hyper-V Clusters to Veeam Backup and Replication v12

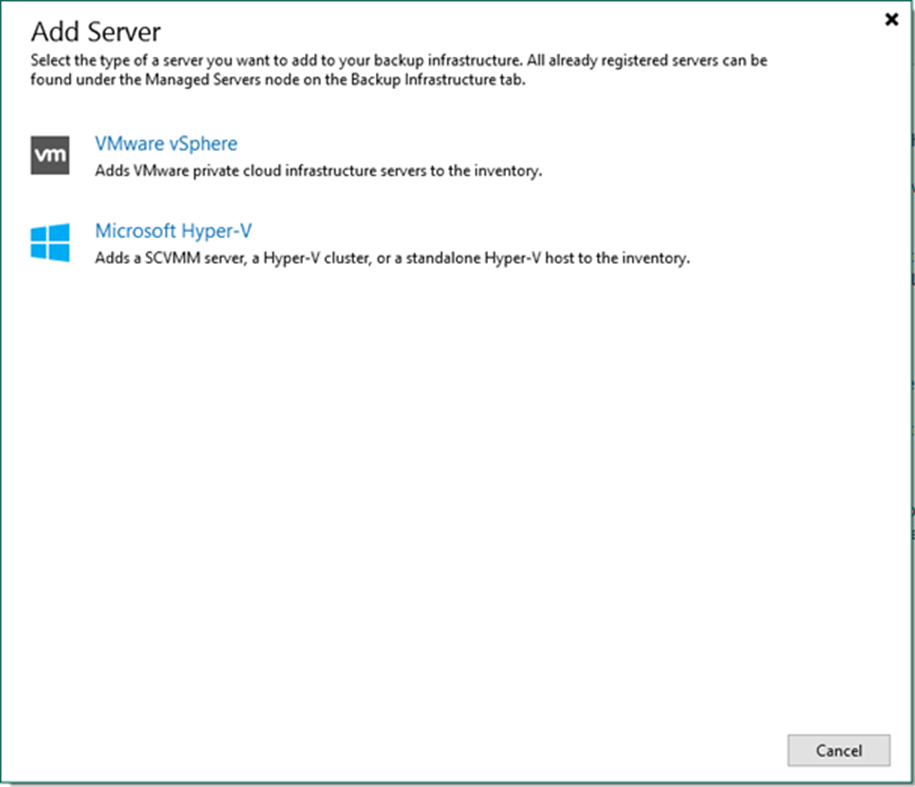

5. On the Add Server page, select Microsoft Hyper-V.

082323 1729 HowtoaddMic3 - How to add Microsoft Hyper-V Clusters to Veeam Backup and Replication v12

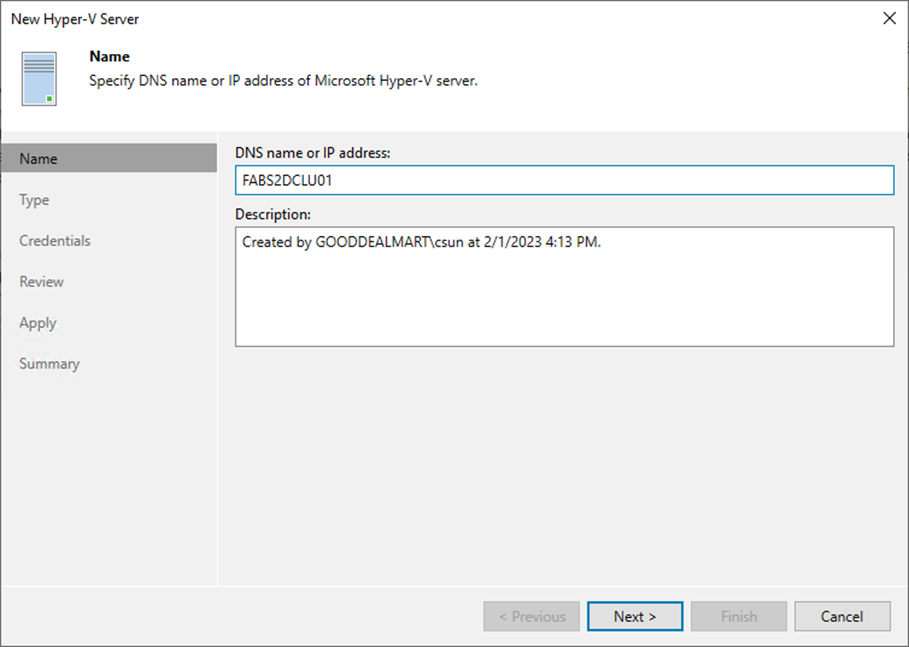

6. Enter the Microsoft Hyper-V Cluster’s full DNS name or IP address on the Name page.

7. Give a brief description in the Description field for future reference and click Next.

082323 1729 HowtoaddMic4 - How to add Microsoft Hyper-V Clusters to Veeam Backup and Replication v12

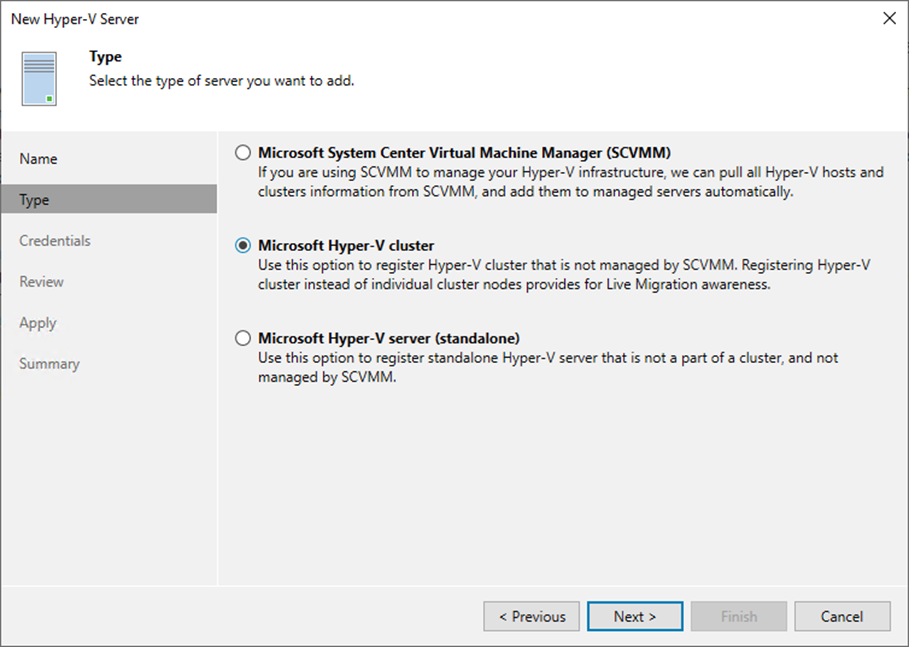

8. On the Type page, select Microsoft Hyper-V cluster and click Next.

082323 1729 HowtoaddMic5 - How to add Microsoft Hyper-V Clusters to Veeam Backup and Replication v12

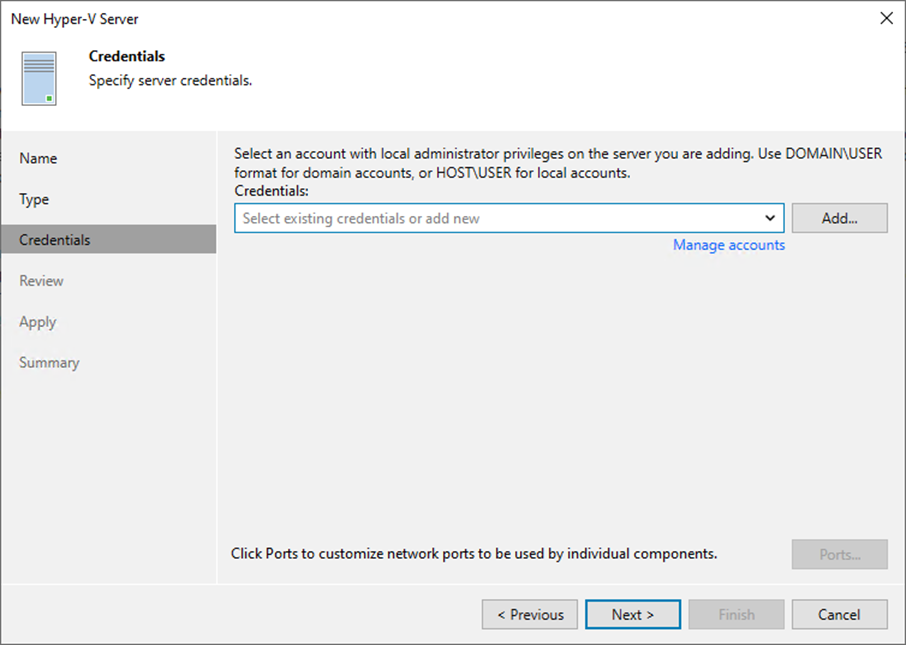

9. Select an account from the Credentials drop-down list on the Credentials page or click Add on the right to add the credentials.

082323 1729 HowtoaddMic6 - How to add Microsoft Hyper-V Clusters to Veeam Backup and Replication v12

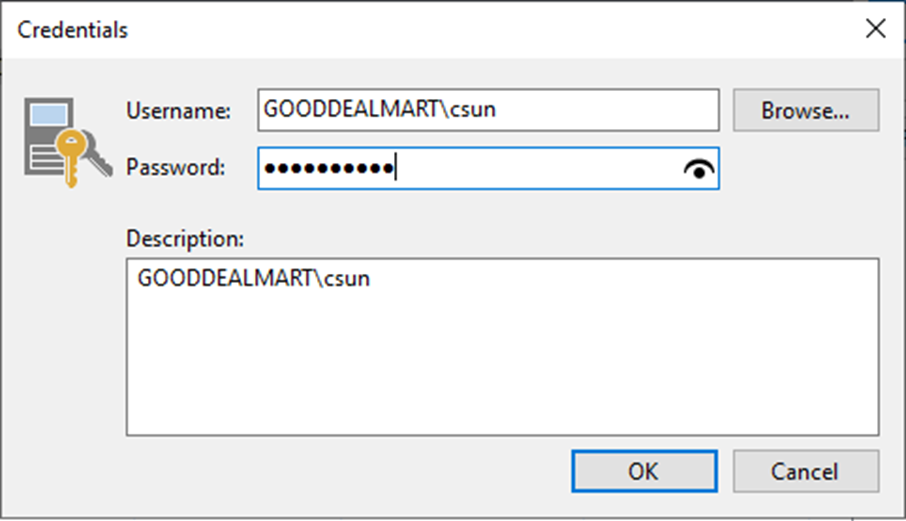

10. On the Credentials page, enter a user name in the Username field. You can also click Browse to select an existing user account.

11. Enter the password In the Password field.

12. Give a brief description in the Description field for future reference and click OK.

082323 1729 HowtoaddMic7 - How to add Microsoft Hyper-V Clusters to Veeam Backup and Replication v12

13. On the Credentials page, click Ports.

082323 1729 HowtoaddMic8 - How to add Microsoft Hyper-V Clusters to Veeam Backup and Replication v12

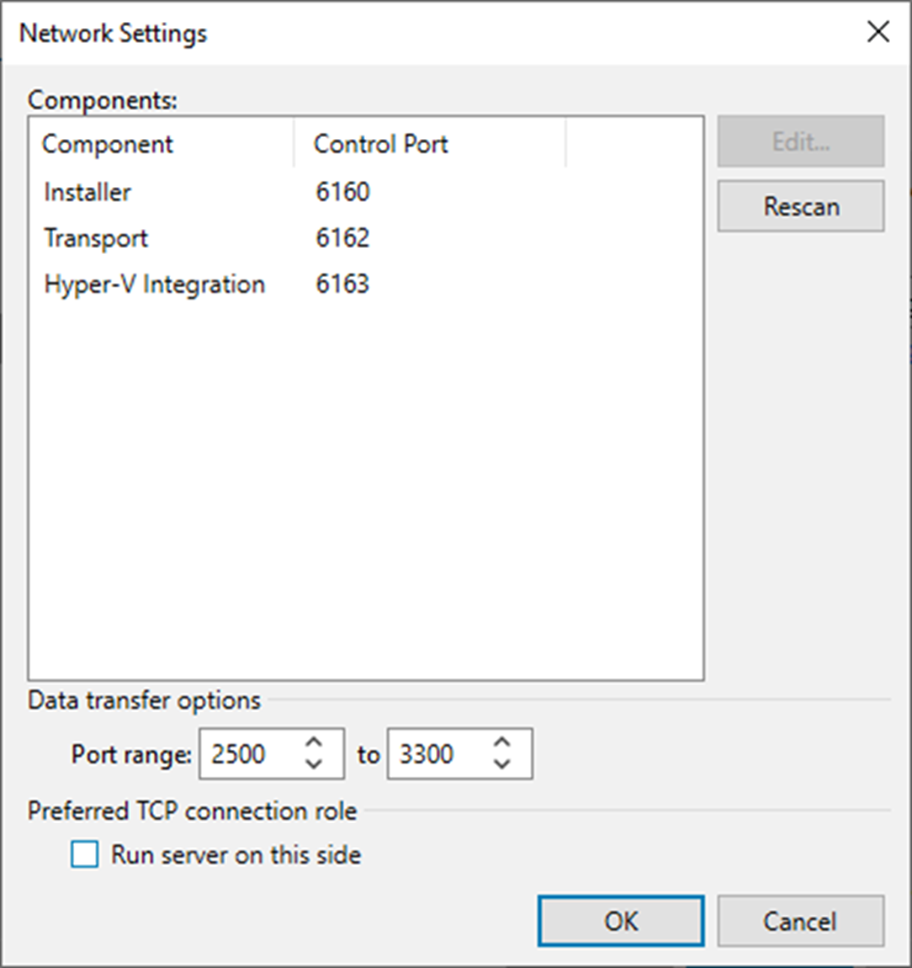

14. If necessary, change the network ports used by Veeam Backup & Replication components on the Network Settings page.

15. Configure connection settings for file copy operations in the Network Settings window’s Data transfer options section. Provide a set of ports for transmission channels between the source and target hosts (one port per task).

16. Select the Run server on this side checkbox in the Preferred TCP connection role section. The outside client cannot connect to the server on the NAT network in the NAT scenario. As a result, services that require external connection initiation may be disrupted.

17. Click OK.

082323 1729 HowtoaddMic9 - How to add Microsoft Hyper-V Clusters to Veeam Backup and Replication v12

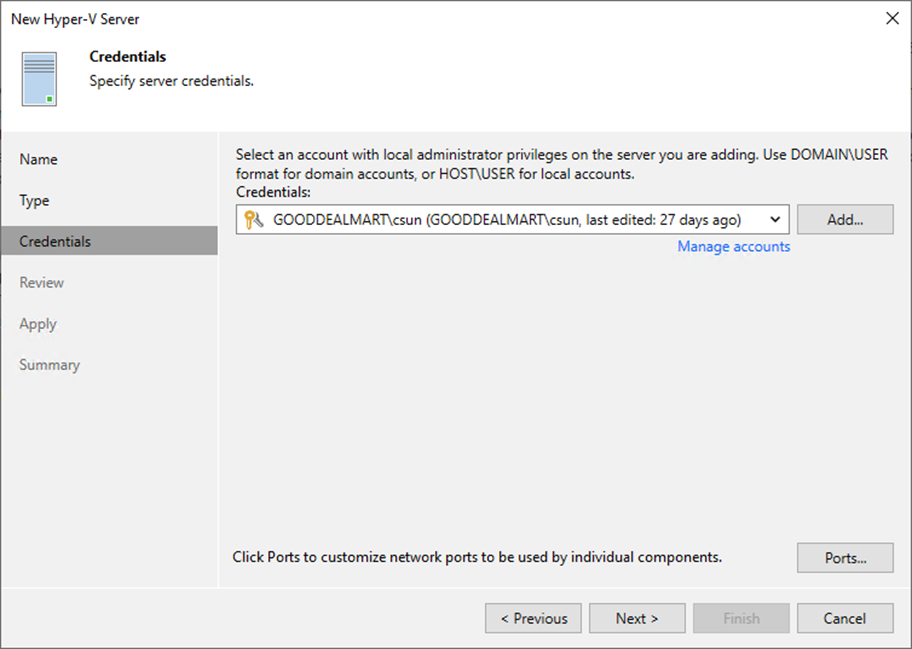

18. On the Credentials page, click Next.

082323 1729 HowtoaddMic10 - How to add Microsoft Hyper-V Clusters to Veeam Backup and Replication v12

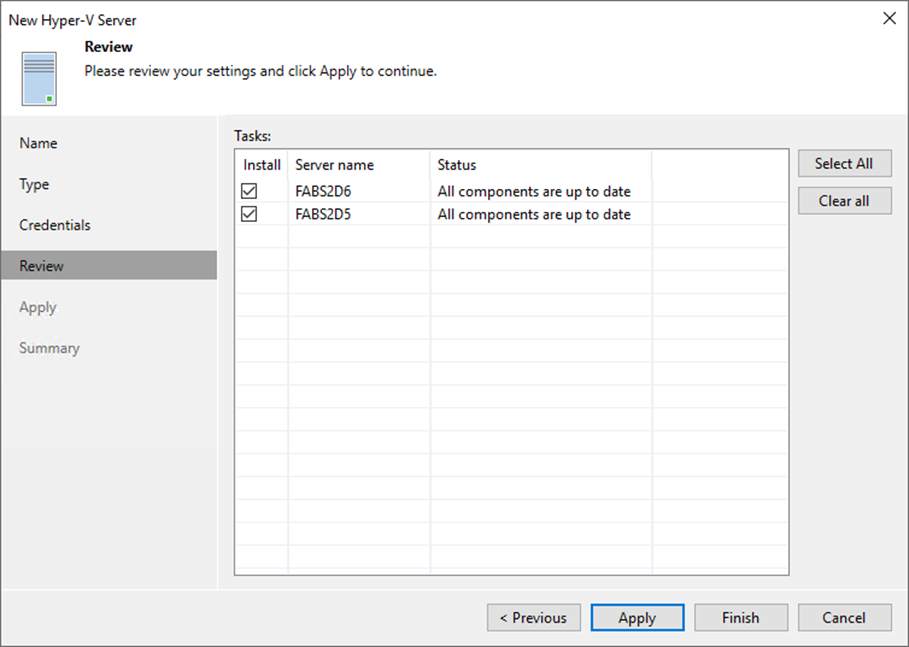

19. Select all servers’ checkboxes on the Review page and click Apply.

082323 1729 HowtoaddMic11 - How to add Microsoft Hyper-V Clusters to Veeam Backup and Replication v12

20. Click Next on the Apply page.

21. Click Finish on the Summary page.
