December 13, 2024
Azure Archive Storage
Veeam Backup for Microsoft 365 supports different Azure storage account types for standard and premium performance tiers. Tables in this section list the supported storage account types.

Veeam Backup for Microsoft 365 supports different Azure storage account types for standard and premium performance tiers. Tables in this section list the supported storage account types.

Standard Performance Tier

The following table lists supported storage account types for the Standard Performance Tier.

Supported Storage Account Type Supported Services Supported Access Tiers
General-purpose V2 Blob Hot, Cool, Archive
General-purpose V1 Blob N/A
Blob Storage Blob (block blobs and append blobs only) Hot, Cool, Archive
NOTE
Veeam Backup for Microsoft 365 uses Azure Blob Storage Archive access tier as a target for backup copy jobs.

Premium Performance Tier

The following table lists supported storage account types for Premium Performance Tier.

Supported Storage Account Type Supported Services Supported Access Tiers
Block Blob Storage Blob (block blobs and append blobs only) N/A

The detailed information as the following link.

https://helpcenter.veeam.com/docs/vbo365/guide/supported_storage_account_types.html?ver=60

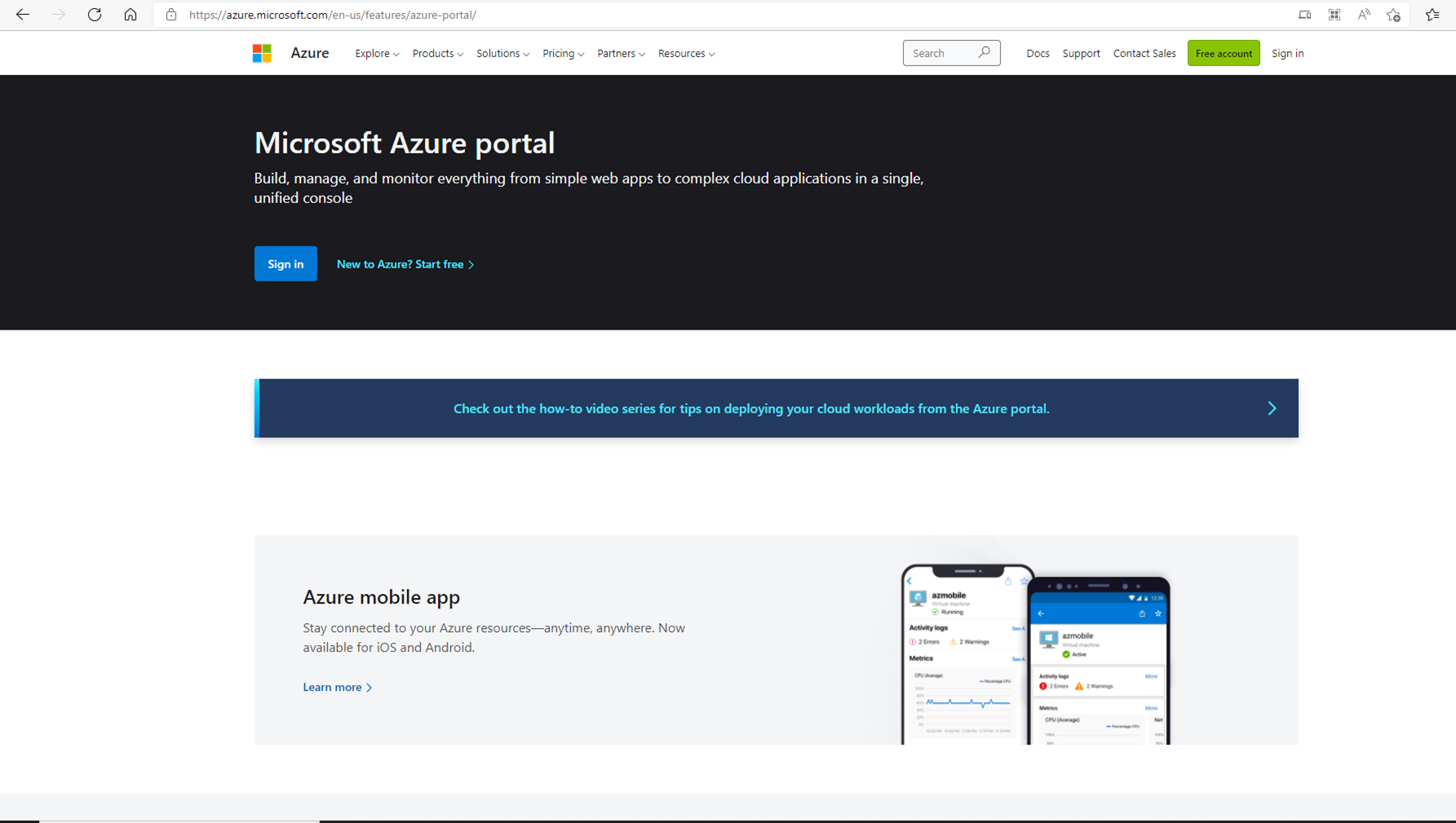

1. Sign in Azure portal with a global admin account.

https://azure.microsoft.com/en-us/features/azure-portal/

052622 1821 HowtoaddMic1 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

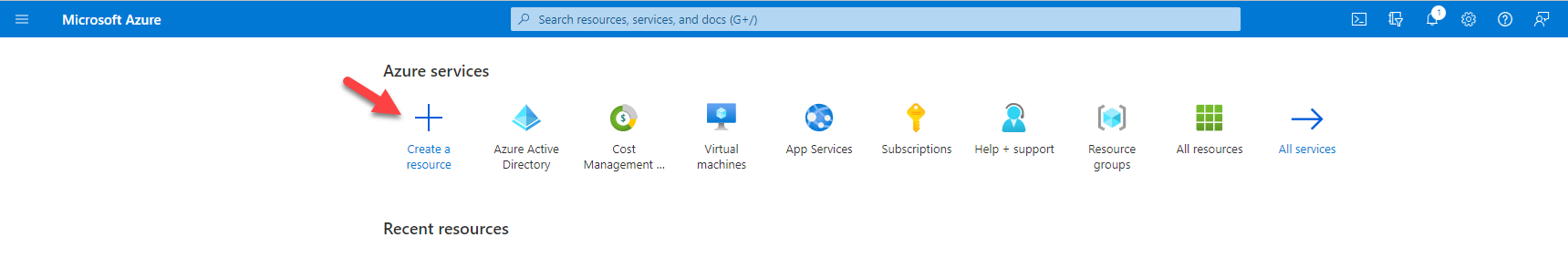

2. On the Azure services page, select +Create resource.

052622 1821 HowtoaddMic2 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

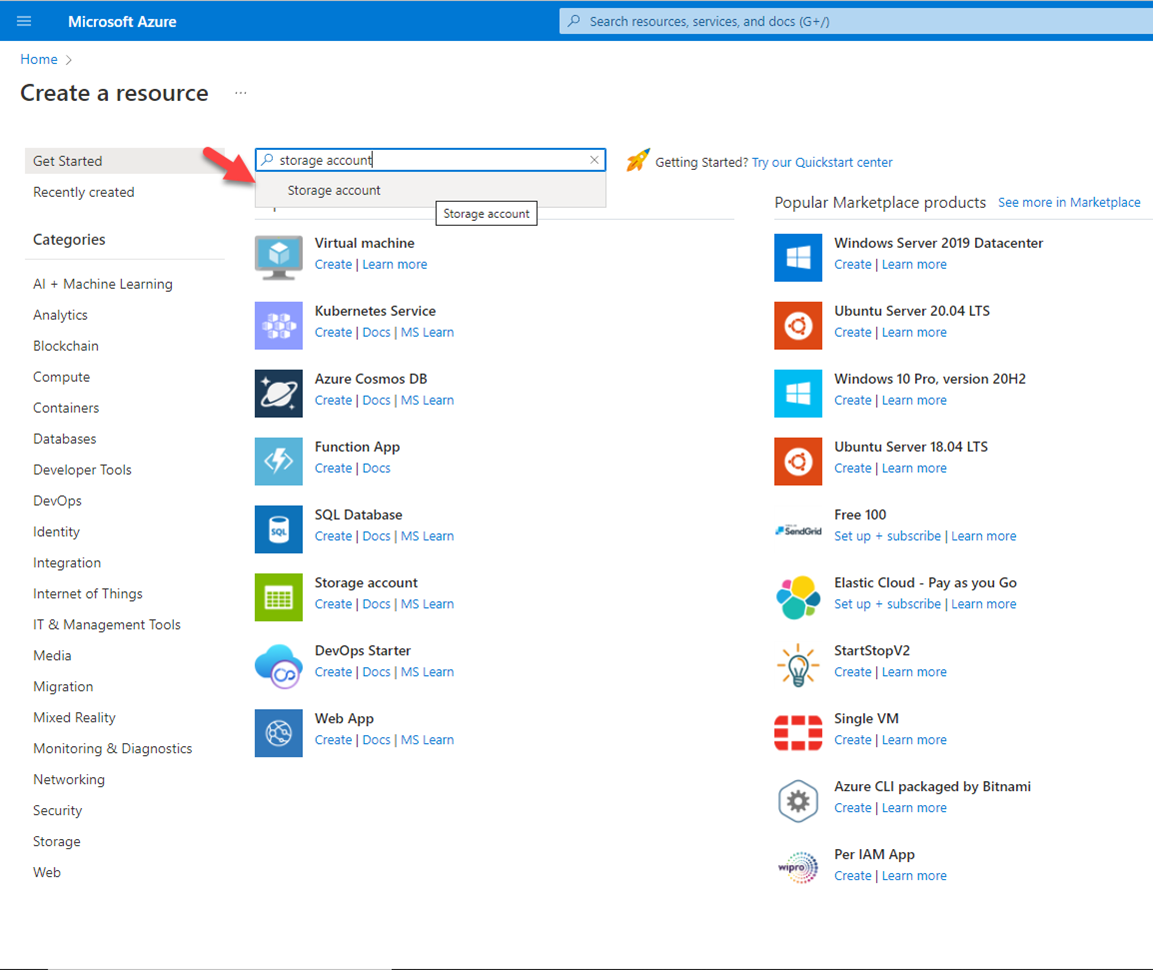

3. On the Create a resource page, search and select storage account.

052622 1821 HowtoaddMic3 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

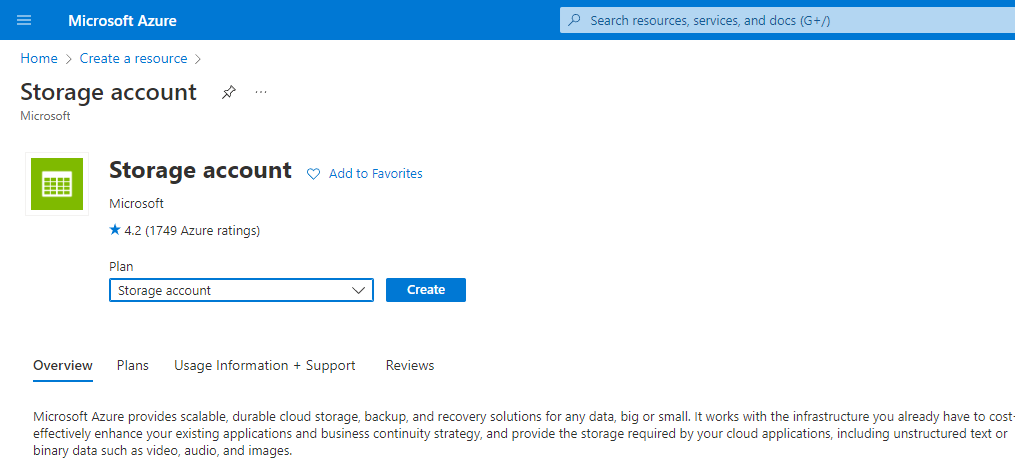

4. On the Storage account page, click Create.

052622 1821 HowtoaddMic4 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

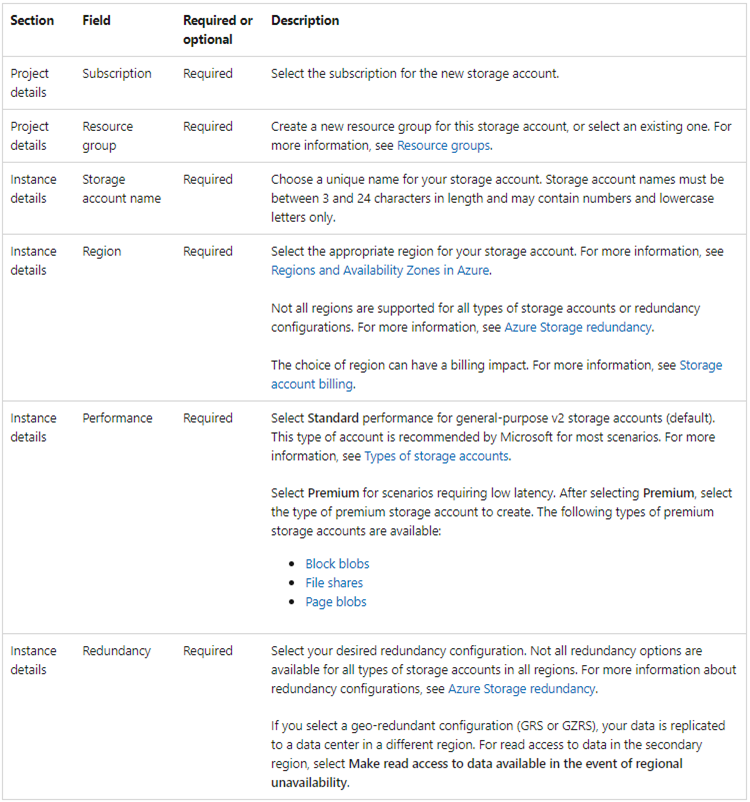

5. On the Create storage account page, select Basics and configure as following and then click Next: Advanced.

052622 1821 HowtoaddMic5 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

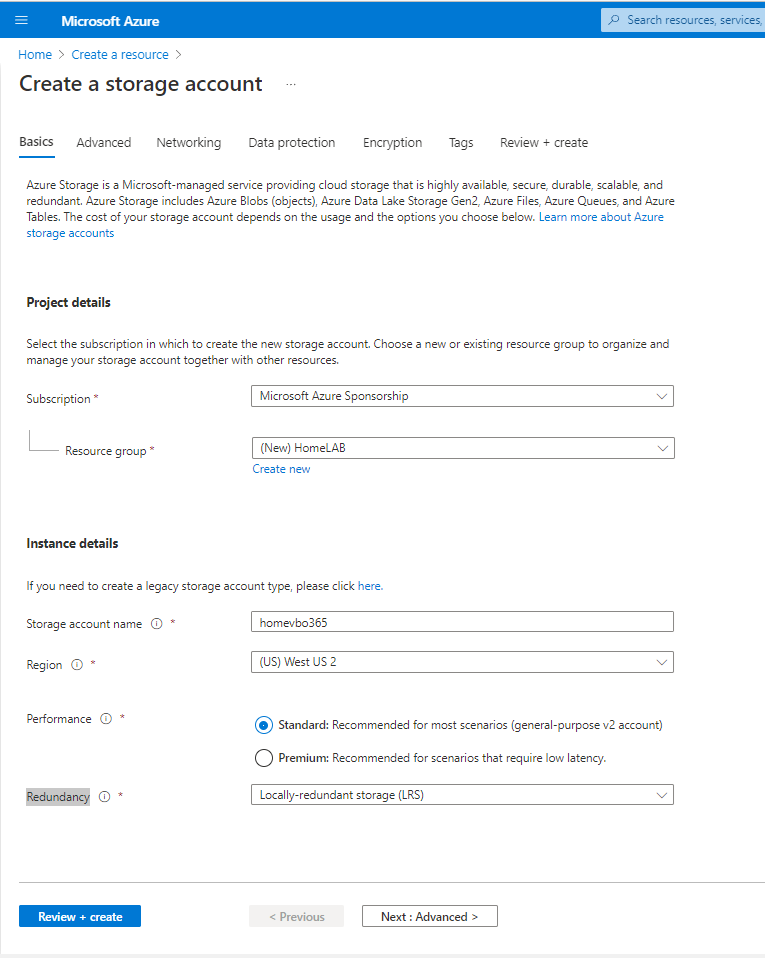

In my case settings as below

052622 1821 HowtoaddMic6 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

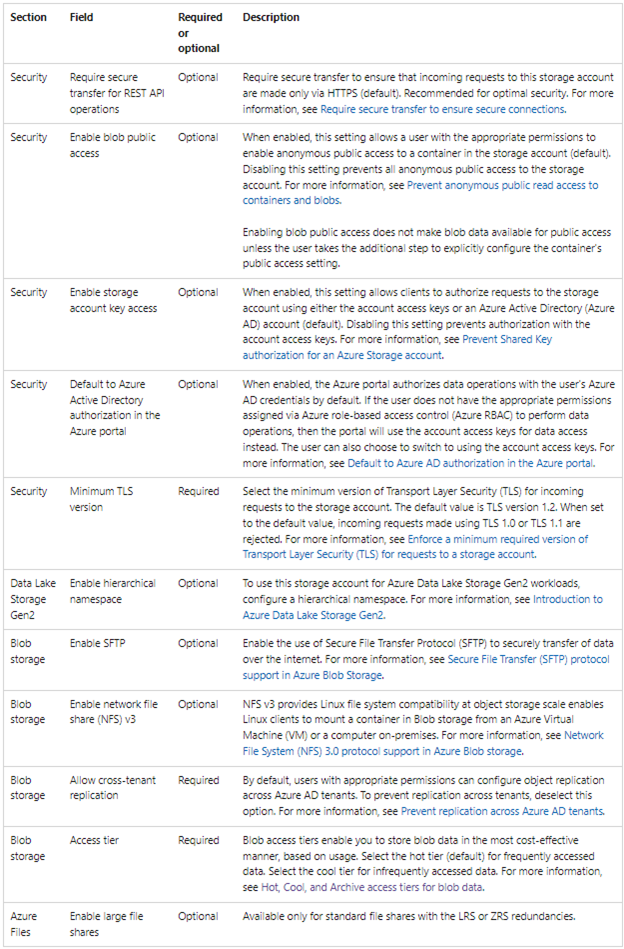

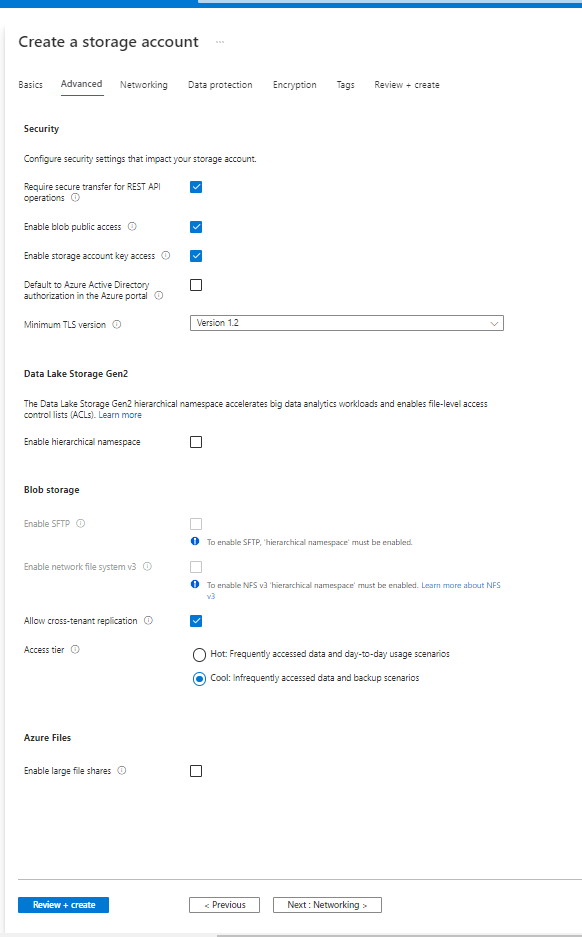

6. On the Advanced page, configure as follow and then click Next: Networking.

052622 1821 HowtoaddMic7 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

In my case settings are as below.

052622 1821 HowtoaddMic8 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

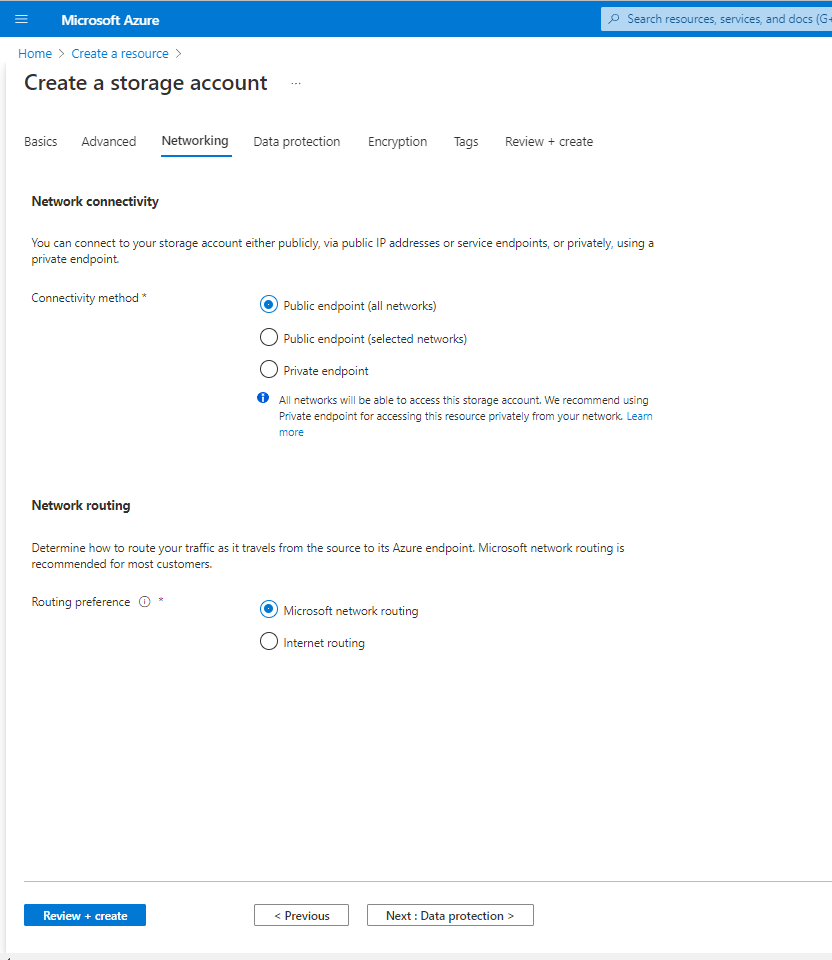

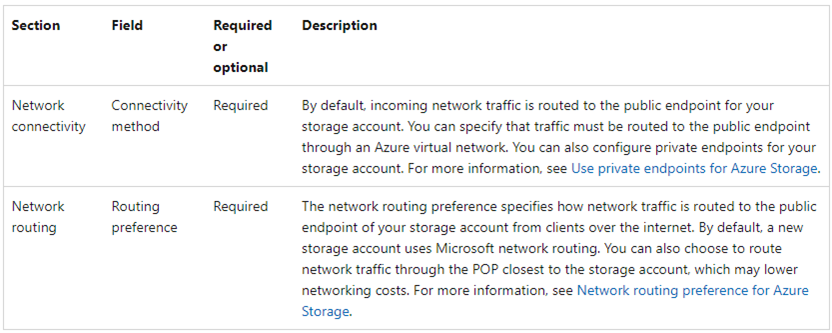

7. On the Networking page, configure as follow and then click Next: Data protection.

052622 1821 HowtoaddMic9 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

In my case settings are as below.

052622 1821 HowtoaddMic10 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

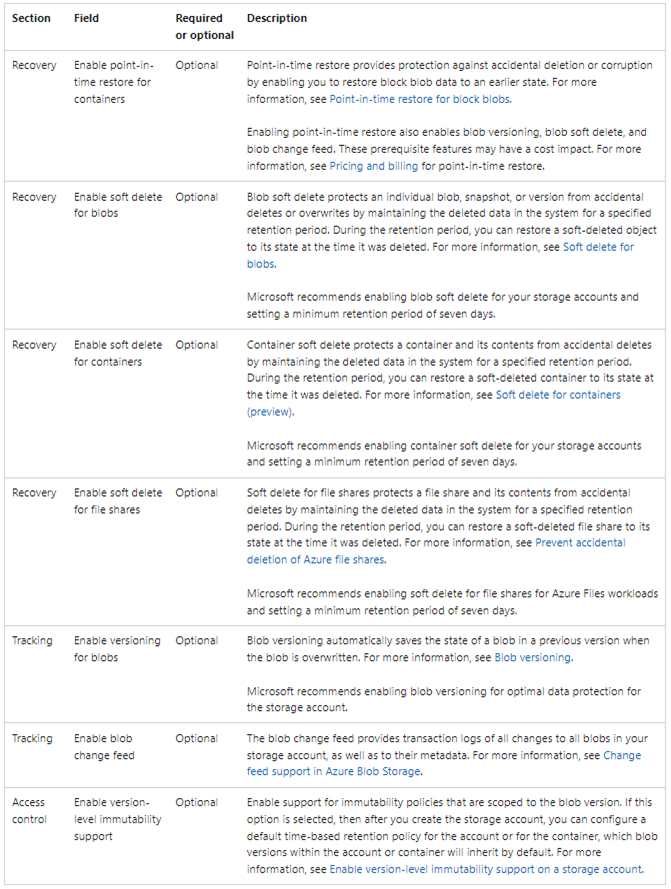

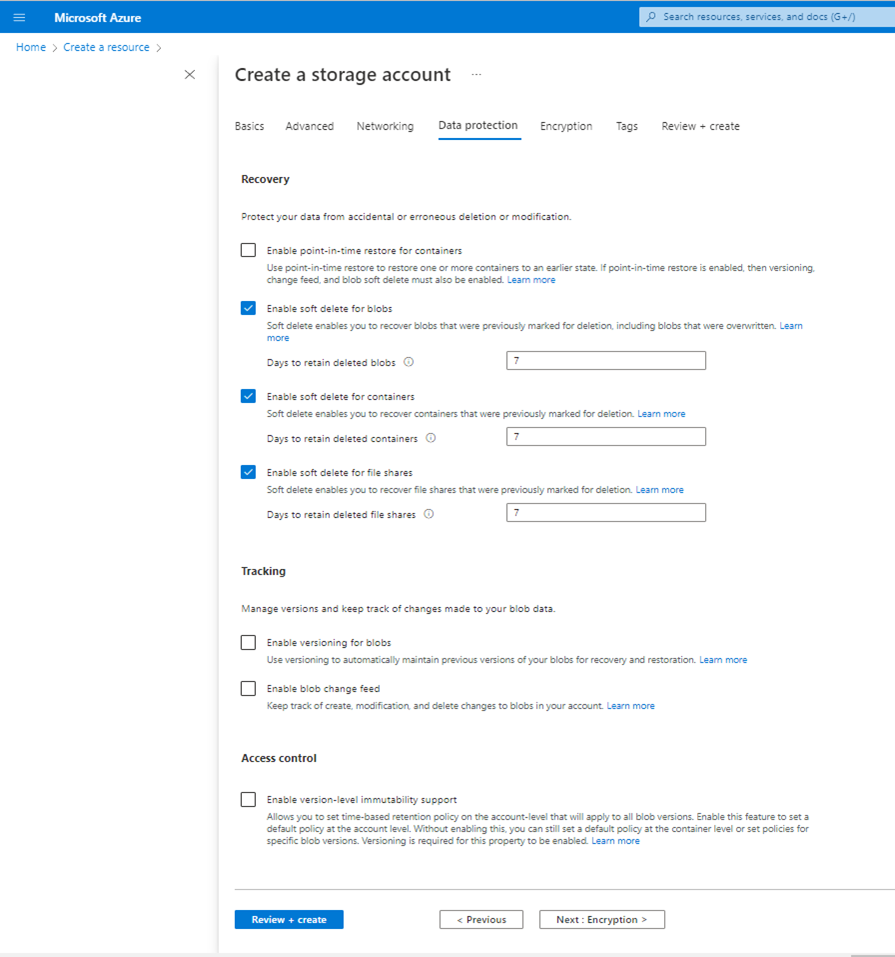

8. On the Data protection page, configure as follow and then click Next: Encryption.

052622 1821 HowtoaddMic11 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

In my case settings are as below.

052622 1821 HowtoaddMic12 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

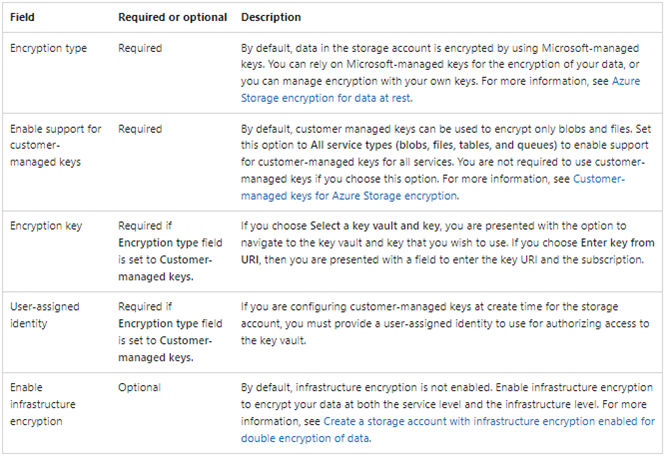

9. On the Encryption page, configure as follow and then click Next: Tags.

052622 1821 HowtoaddMic13 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

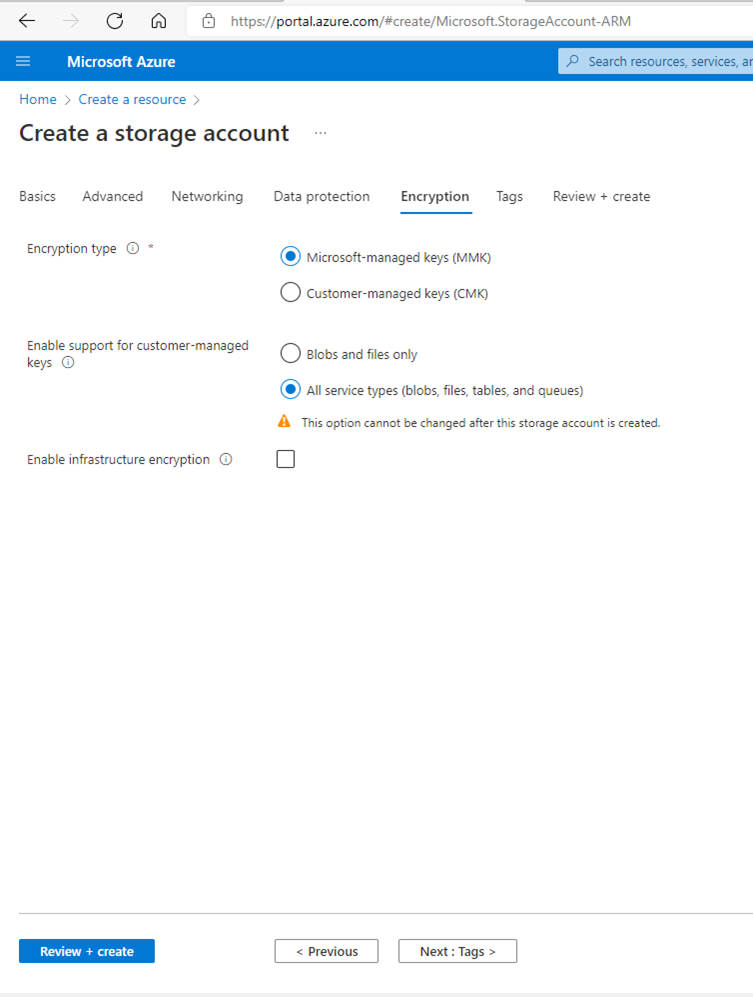

In my case settings are as below.

052622 1821 HowtoaddMic14 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

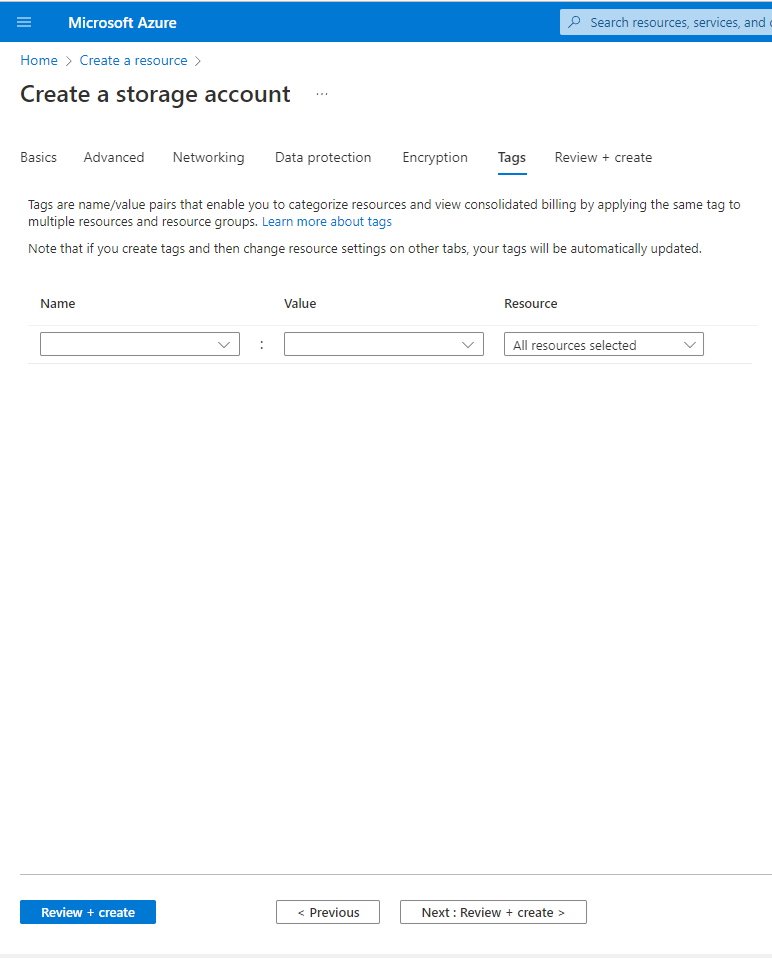

10. On the Tags page, configure as the following and then click Next: Review + create.

On the Tags tab, you can specify Resource Manager tags to help organize your Azure resources.

052622 1821 HowtoaddMic15 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

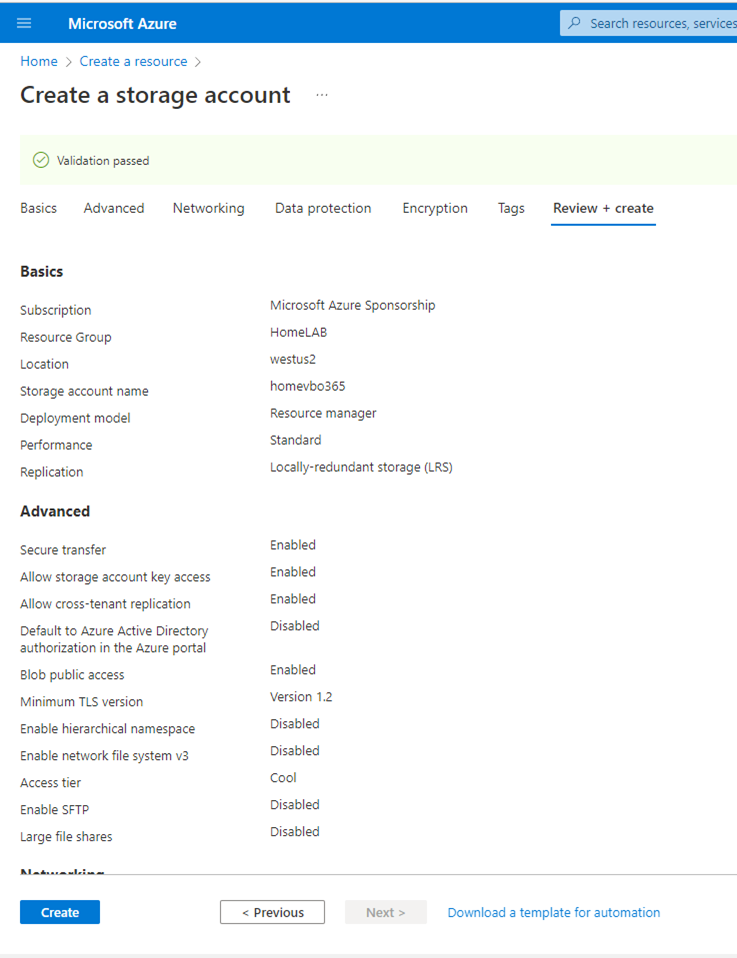

11. On the Review + create page, click Create.

052622 1821 HowtoaddMic16 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

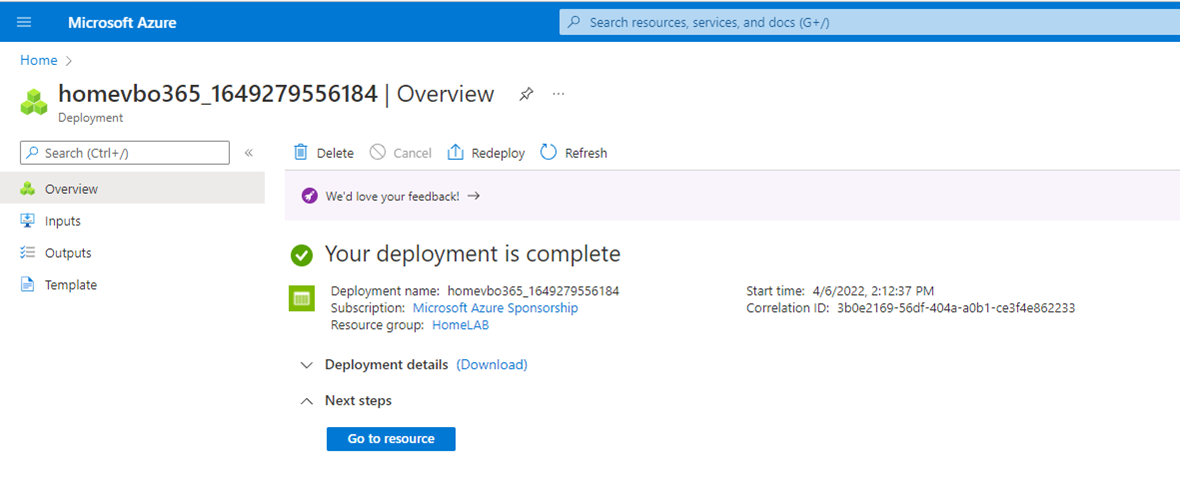

12. It may need a few mins to create the new storage account, click Go to resource.

052622 1821 HowtoaddMic17 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

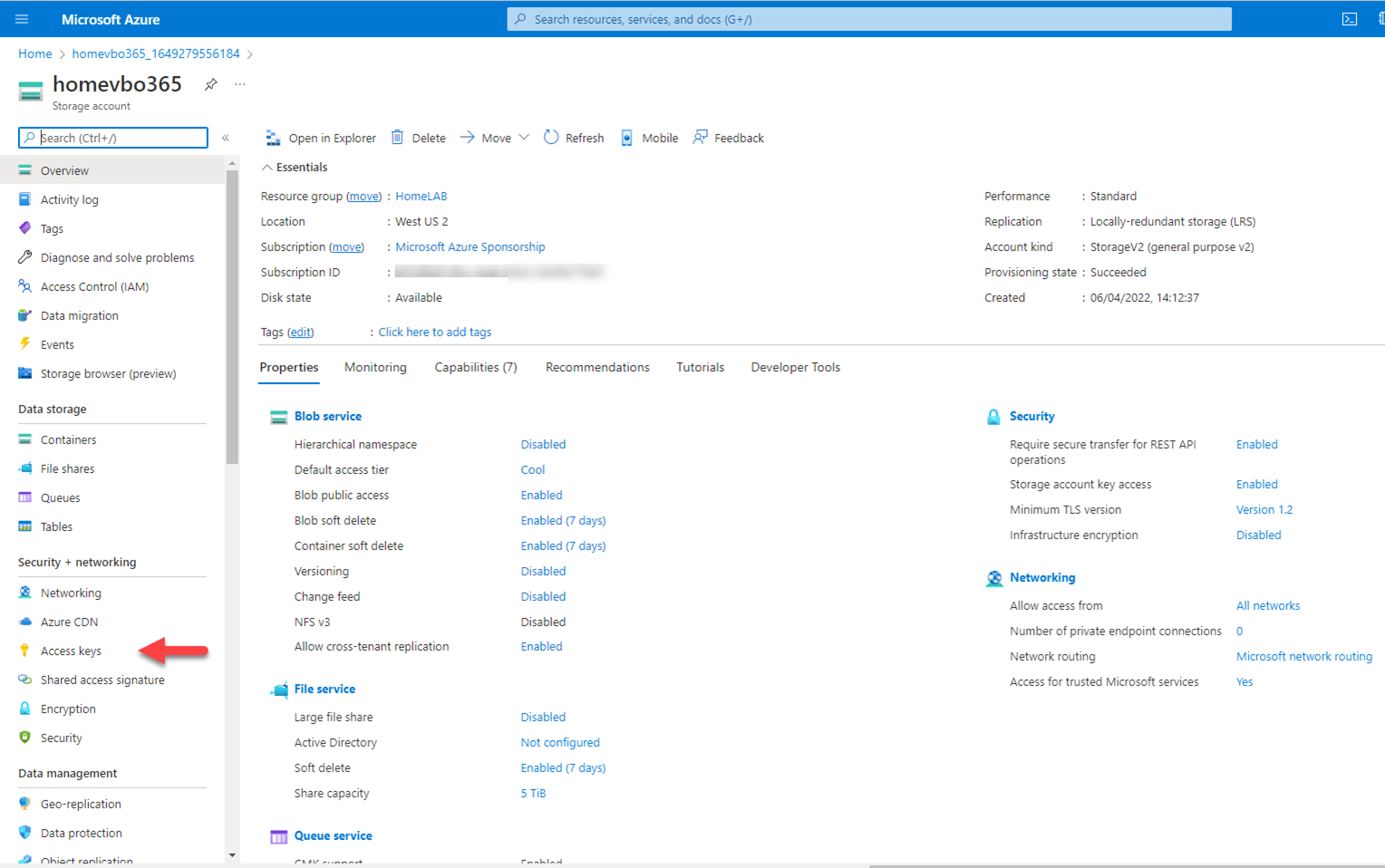

13. On the new created Storage account page, select Access keys.

052622 1821 HowtoaddMic18 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

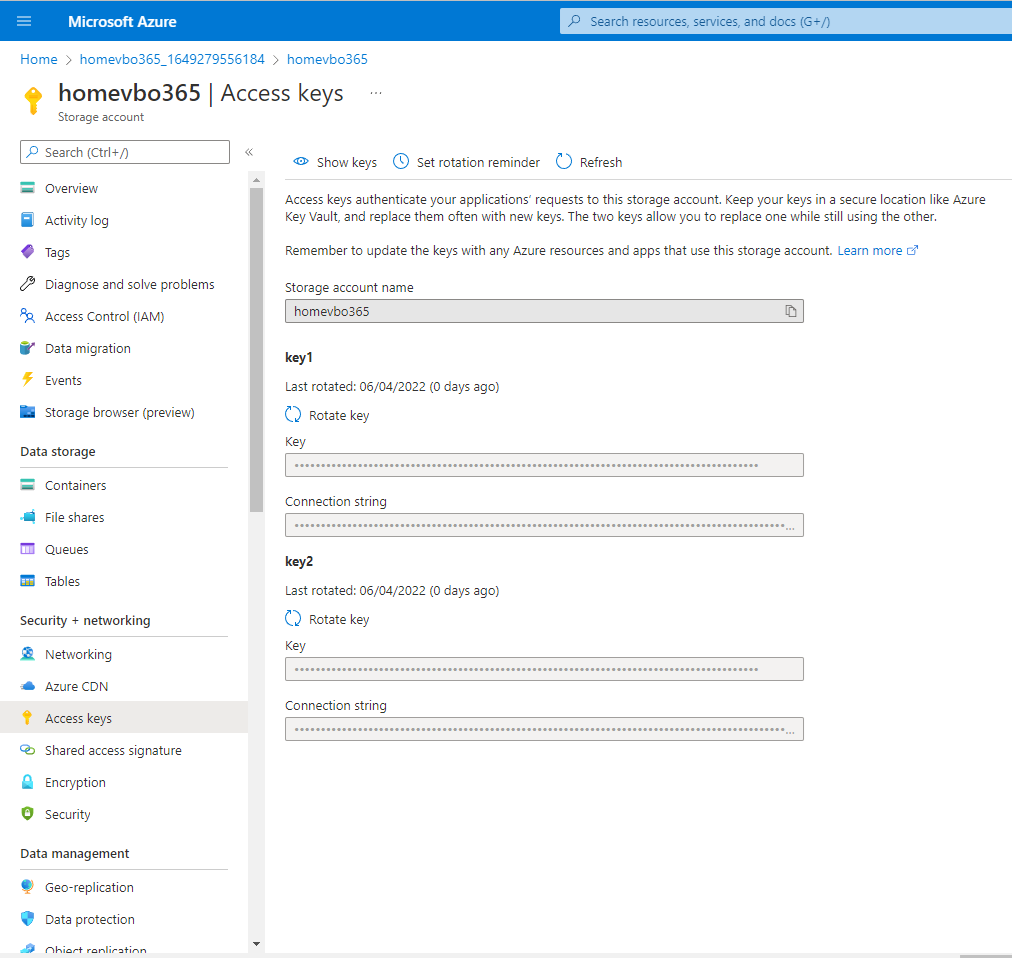

14. On the Access keys page, select Show keys, and copy the Storage account name and key of key1, we need them for Veeam storage repository settings later.

052622 1821 HowtoaddMic19 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

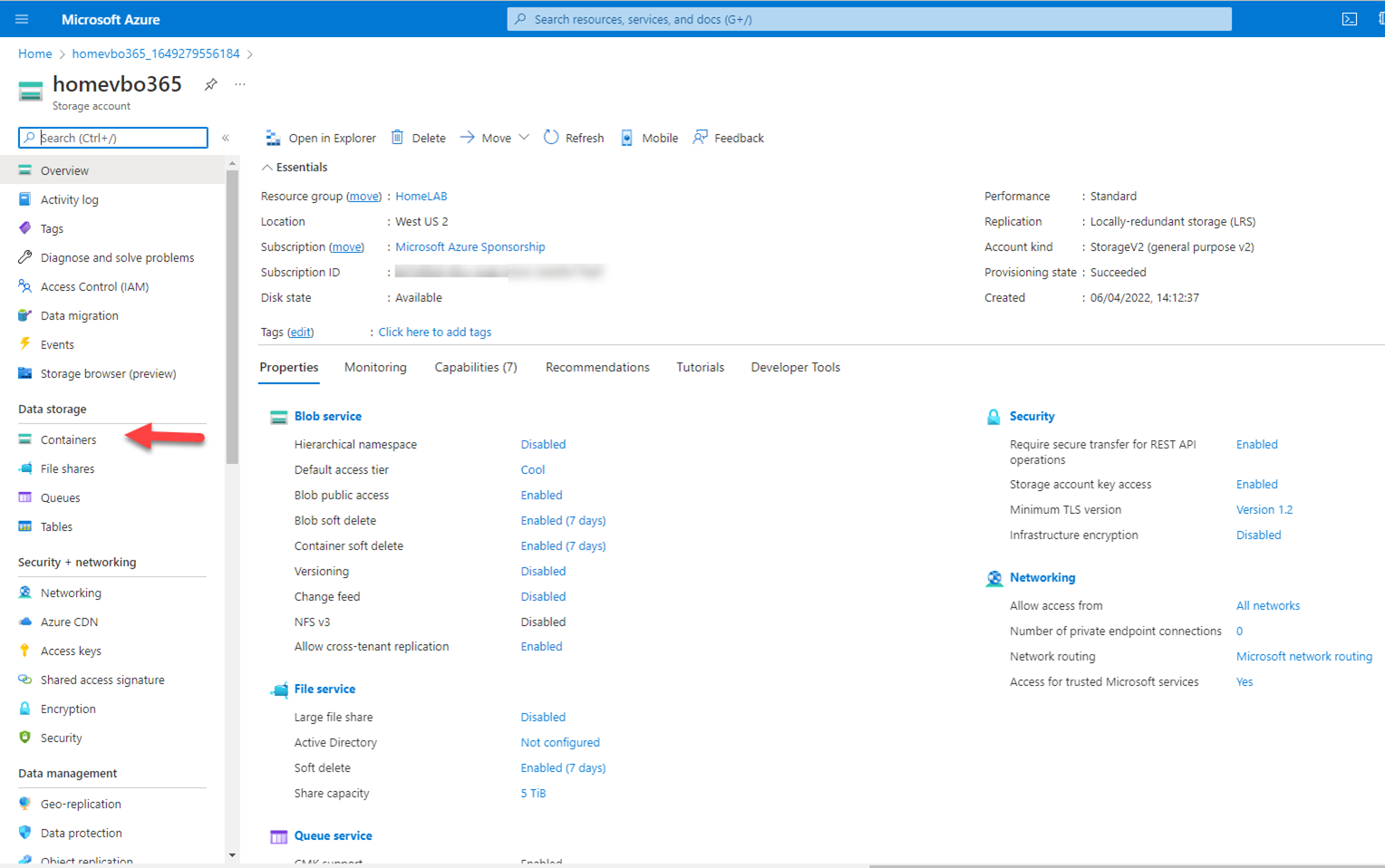

15. On the new created Storage account page, select Containers.

052622 1821 HowtoaddMic20 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

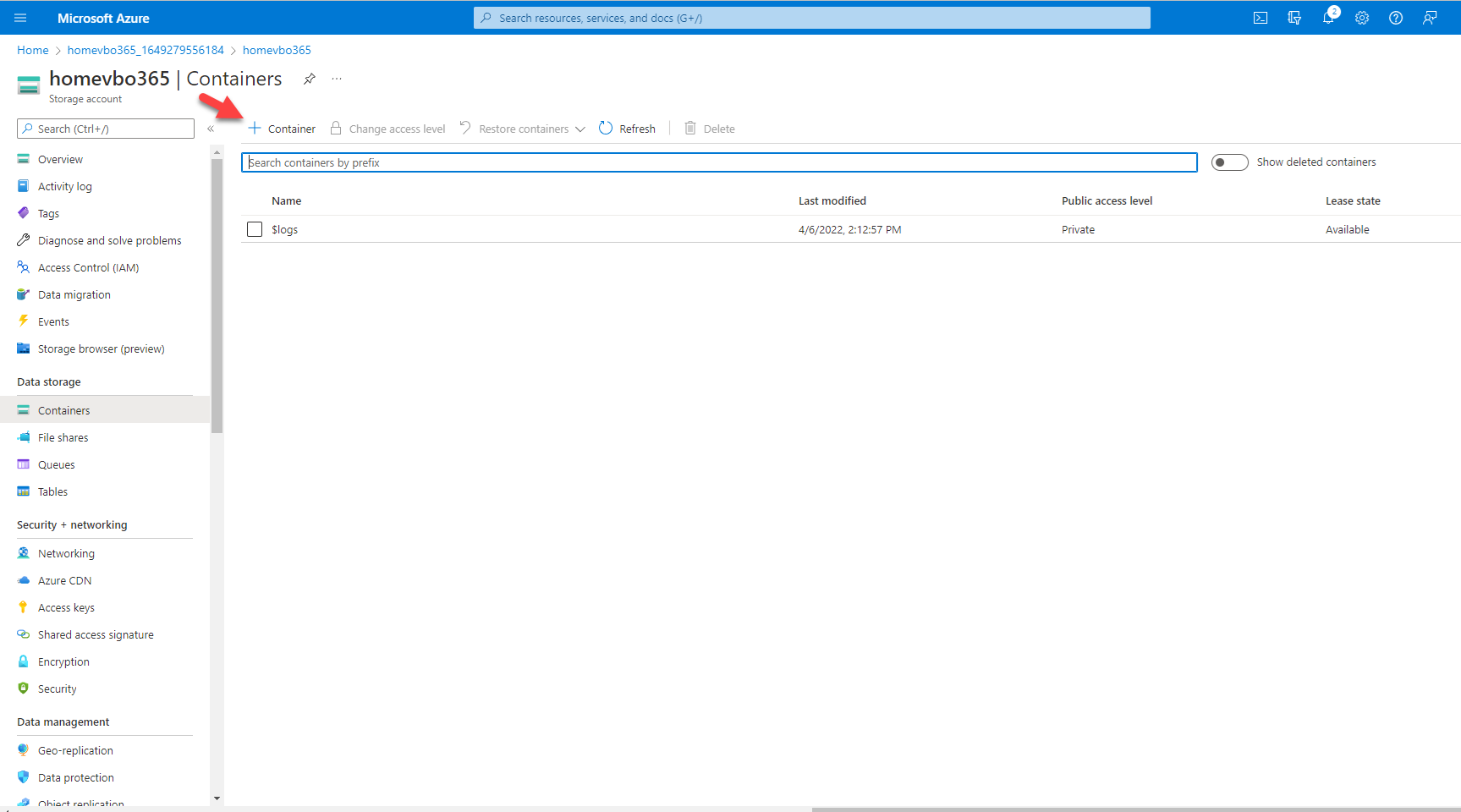

16. On the Containers page, click +Container.

052622 1821 HowtoaddMic21 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

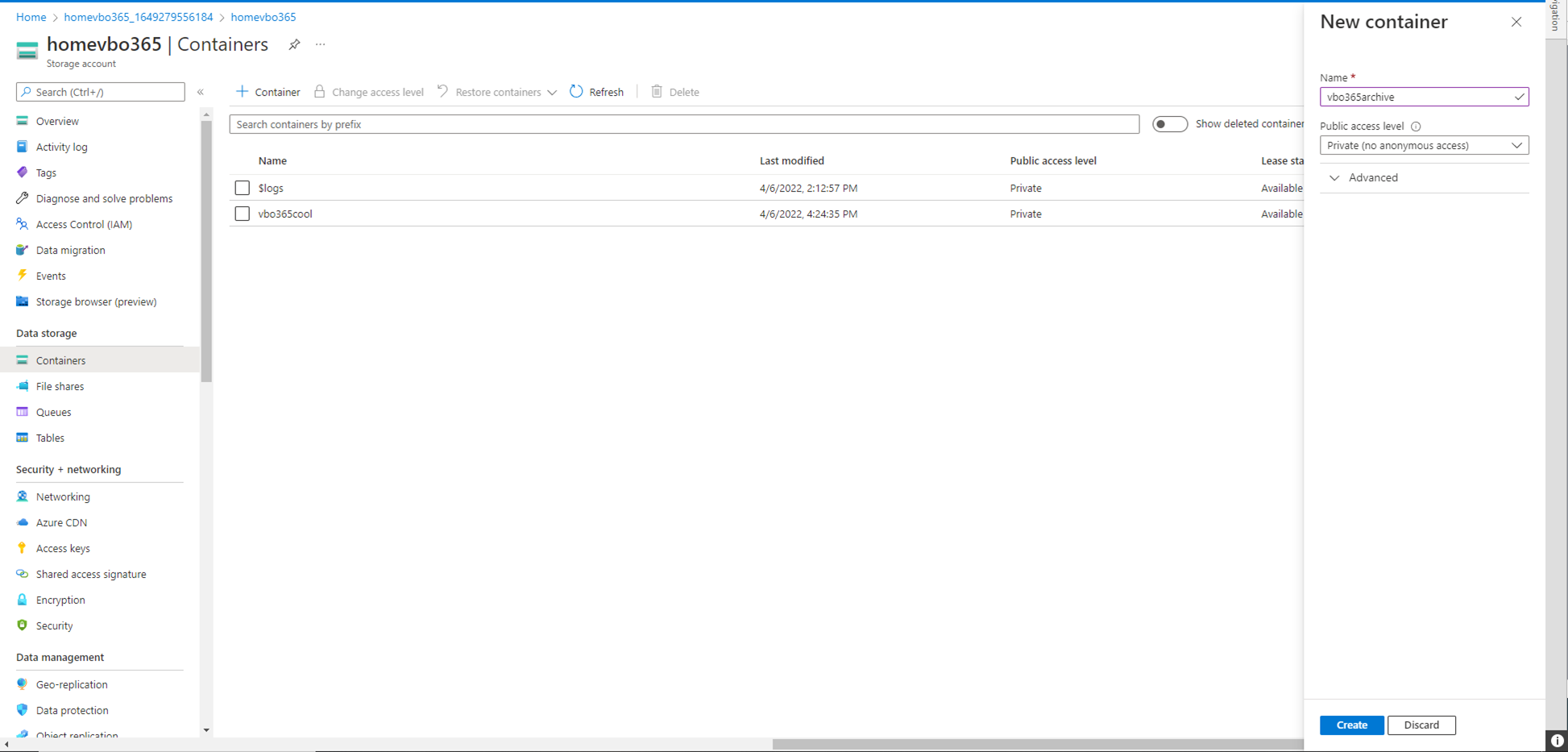

17. On the new container page, enter a name for your new container, select Private (no anonymous access) as Public access level and then click Create.

052622 1821 HowtoaddMic22 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

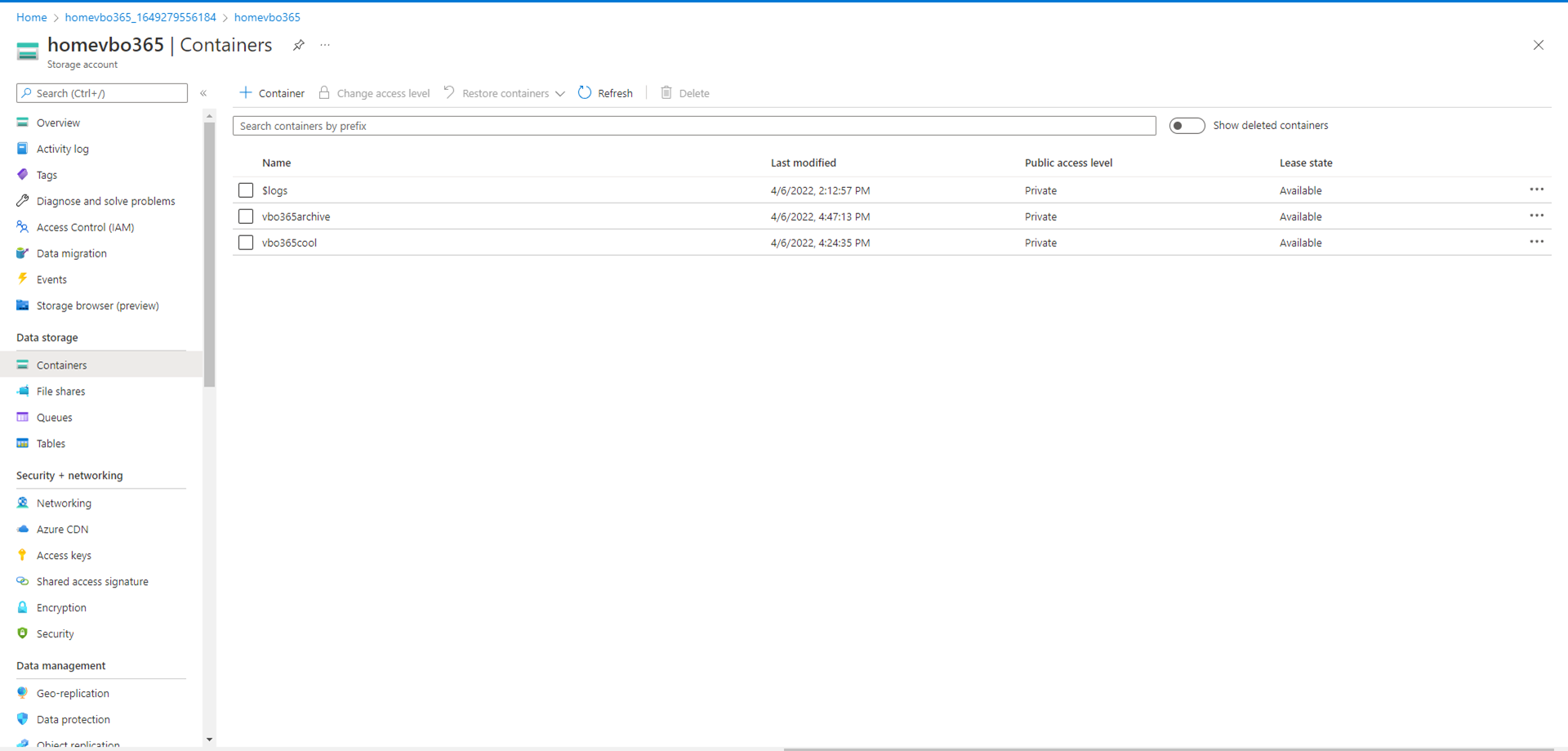

18. Verify the new container created.

052622 1821 HowtoaddMic23 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

19. Login to Veeam Backup for Microsoft 365 Manager server.

20. Open Veeam Backup for Microsoft Office 365 console.

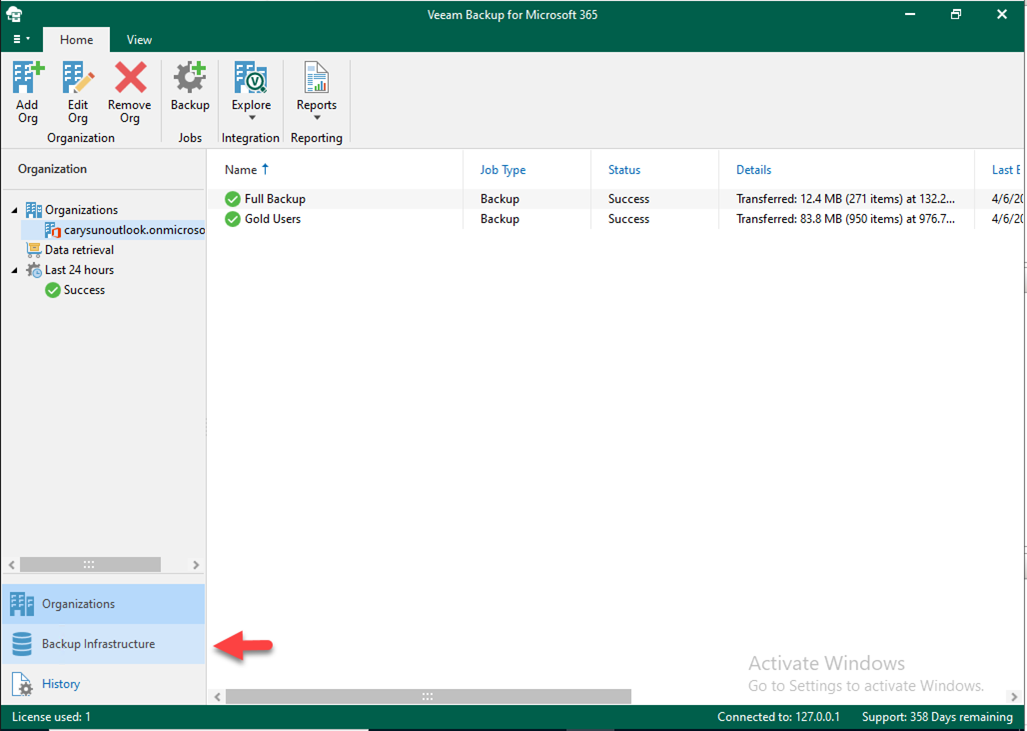

21. On the Veeam Backup for Microsoft Office 365 console page, select Backup Infrastructure.

052622 1821 HowtoaddMic24 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

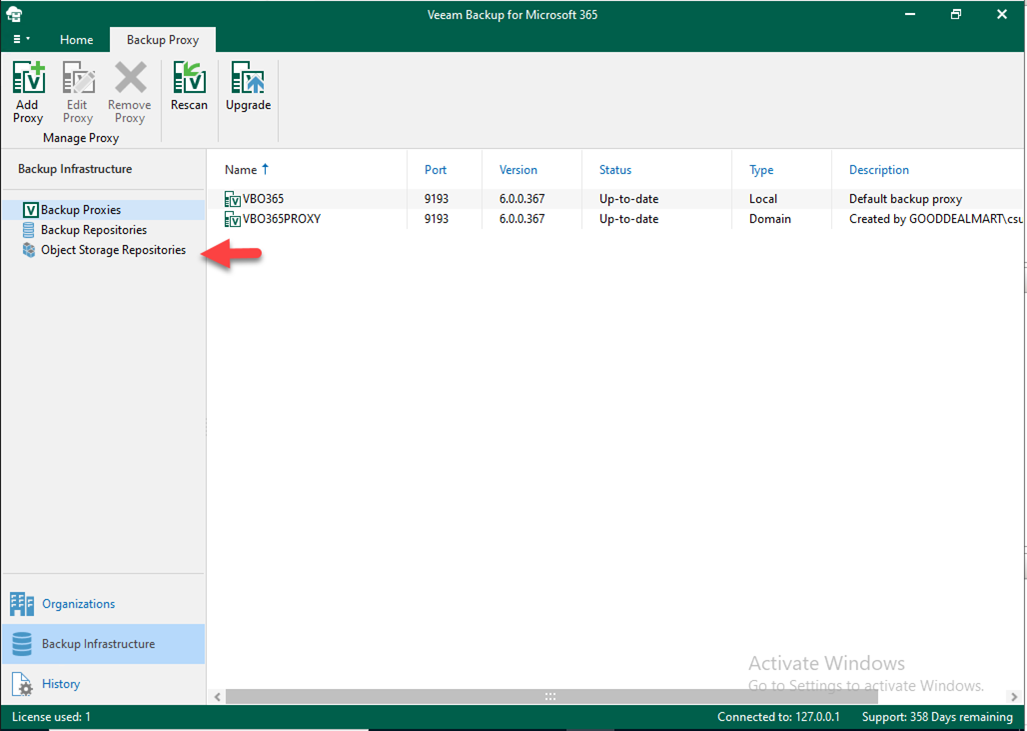

22. On the BACKUP INFRASTRUCTURE page, select Object Storage Repositories.

052622 1821 HowtoaddMic25 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

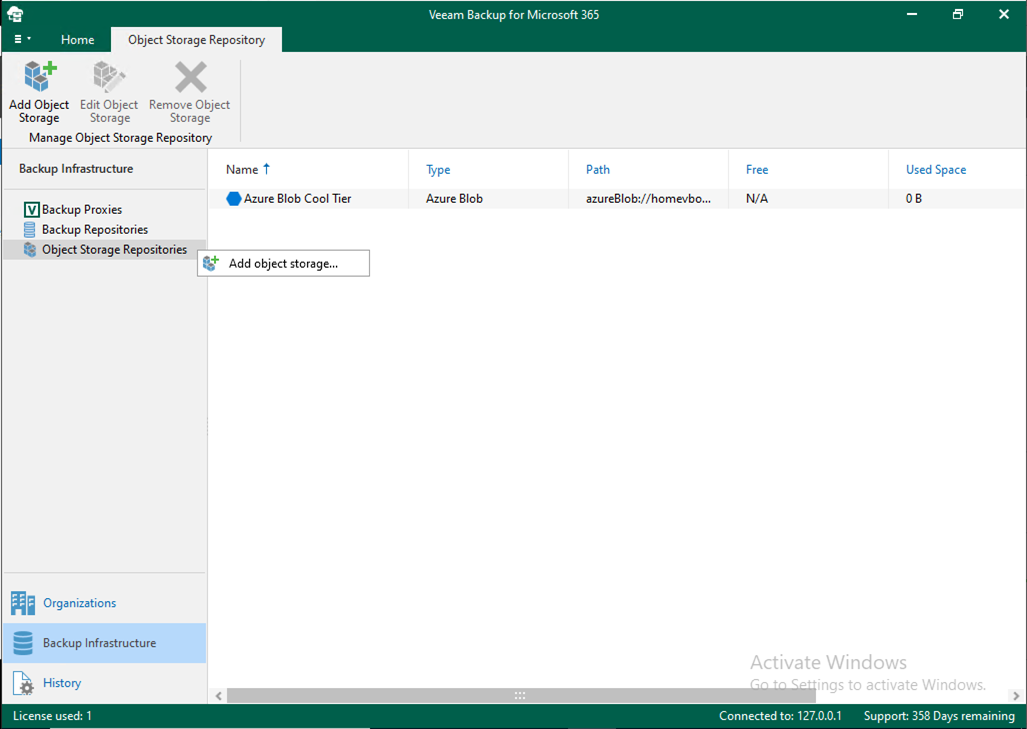

23. Right-Click Object Storage Repositories and click Add object storage.

052622 1821 HowtoaddMic26 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

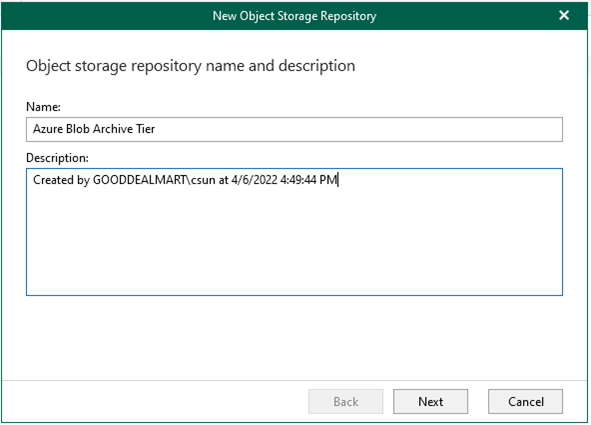

24. On the Object storage repository name and description page, type Azure Blob Archive Tier as the Object storage repository name and click Next.

052622 1821 HowtoaddMic27 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

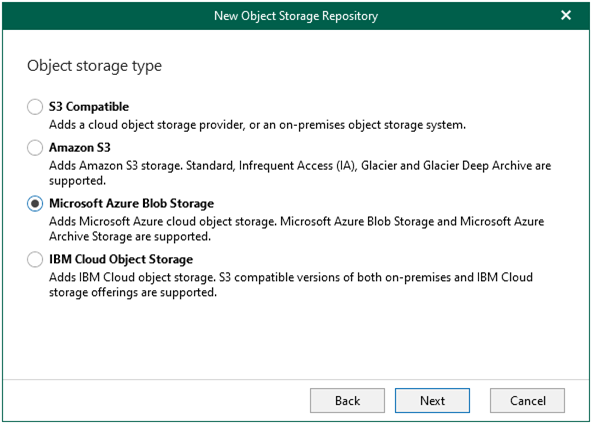

25. On the Object storage type page, select Microsoft Azure Blob Storage and click Next.

052622 1821 HowtoaddMic28 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

26. On the Microsoft Azure Blob Storage type page, select Azure Archive Storage and click Next.

052622 1821 HowtoaddMic29 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

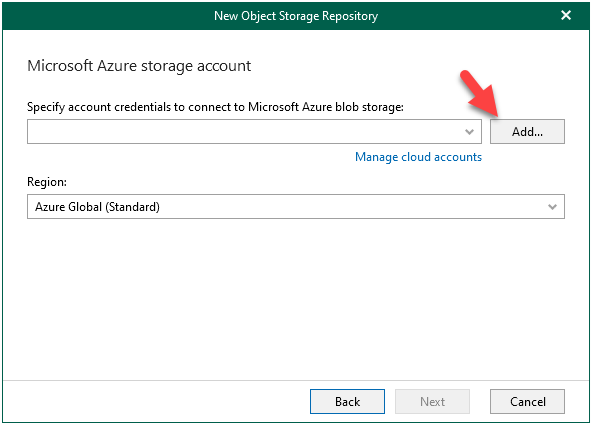

27. On the Microsoft Azure storage Account page, click Add on Specify account credentials to connect to Microsoft blob storage.

052622 1821 HowtoaddMic30 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

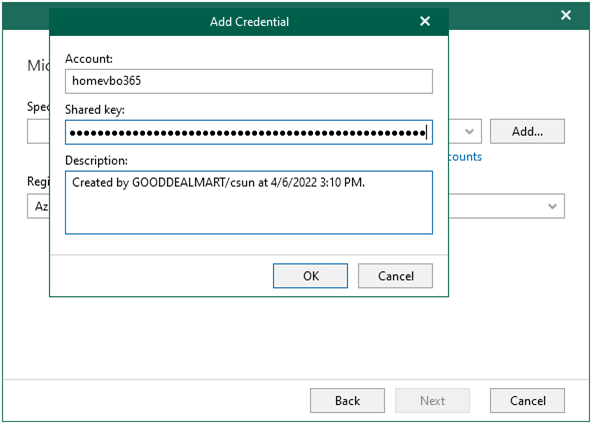

28. Paste Azure storage account name as Account and paste key1 as Shared key (you copied them when you created Azure storage account), click OK.

052622 1821 HowtoaddMic31 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

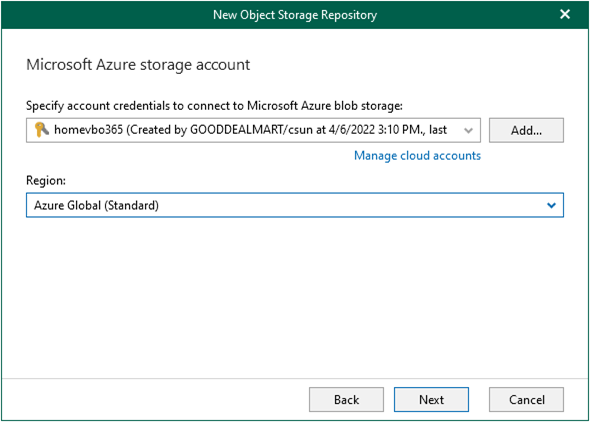

29. On the Microsoft Azure storage Account page, select specify the region (in my case is Azure Global (Standard) ) as Region and click Next.

052622 1821 HowtoaddMic32 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

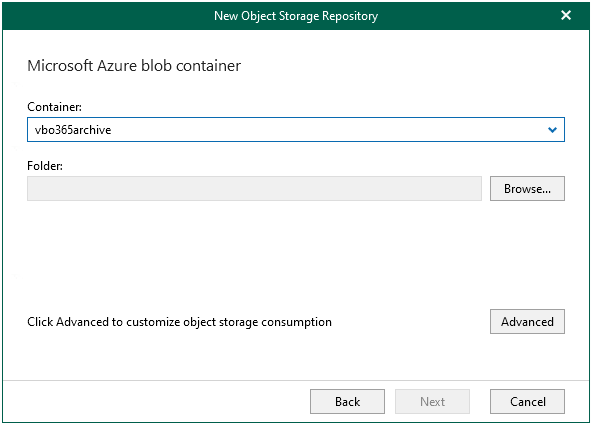

30. On the Microsoft Azure Blob container page, select an Azure Blob container (you created it previously when you create the Azure Storage Account and settings) and click Browse on Folder.

052622 1821 HowtoaddMic33 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

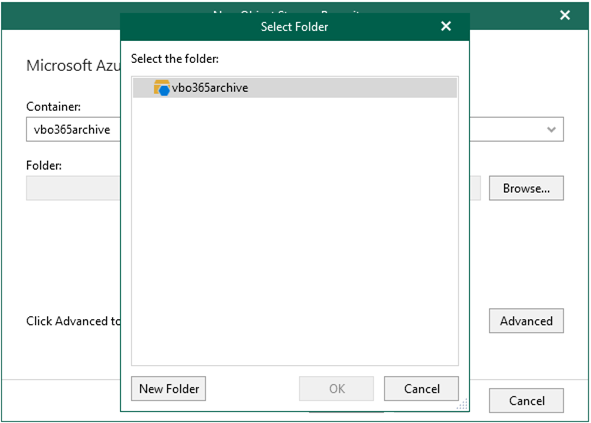

30. On the Select the folder page, click New Folder.

052622 1821 HowtoaddMic34 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

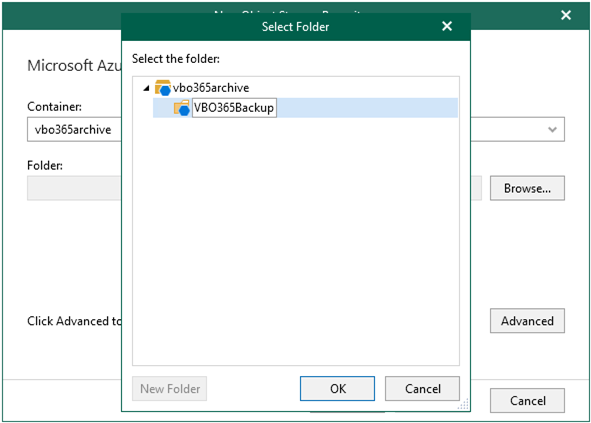

31. Type the name as the new folder name, and click OK.

052622 1821 HowtoaddMic35 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

32. On the Microsoft Azure Blob container page, click Advanced.

052622 1821 HowtoaddMic36 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

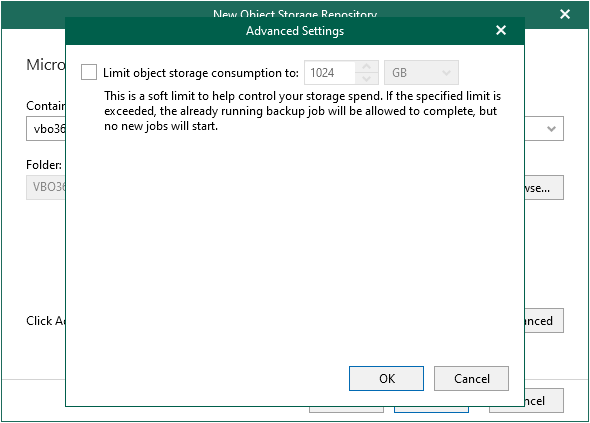

33. On the ADVANCED SETTINGS page, if you would like to control the storage spend, select Limit object storage consumption and put the storage size for it, and click OK.

052622 1821 HowtoaddMic37 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

34. On the Microsoft Azure Blob container page, click Finish.

052622 1821 HowtoaddMic38 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

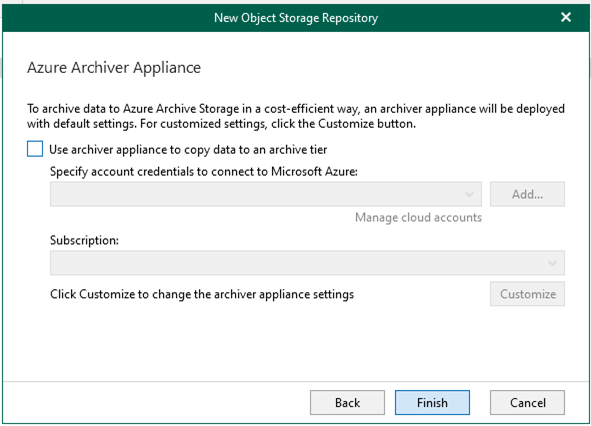

36. If you do not want to use the Azure archiver appliance, skip this step and click Finish.

052622 1821 HowtoaddMic39 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

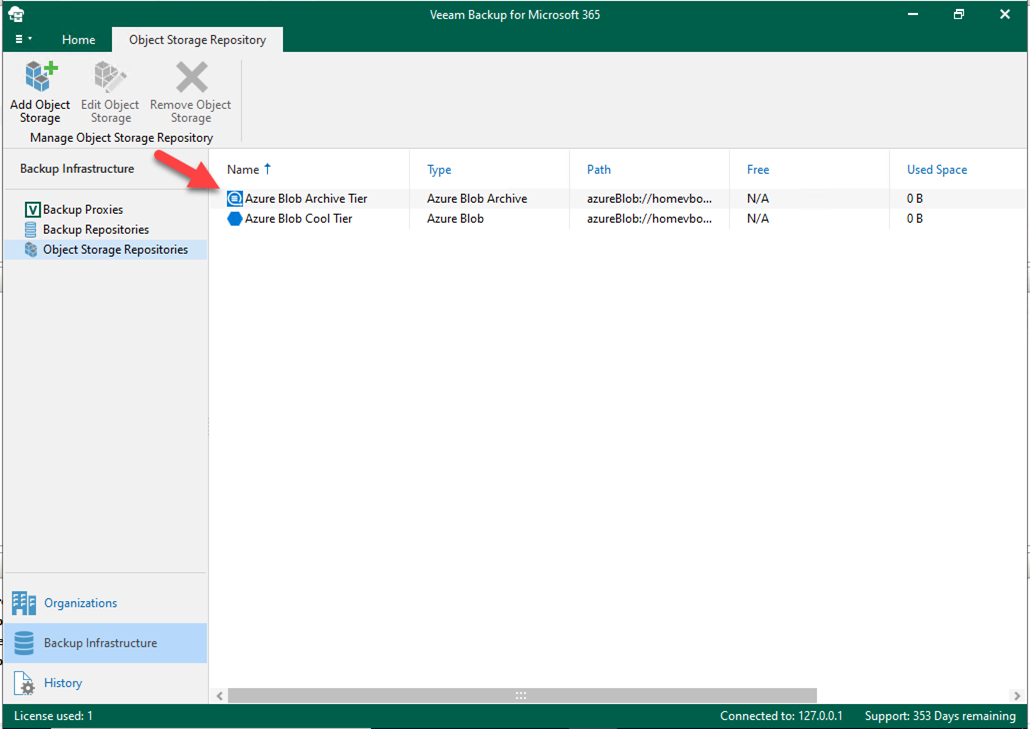

37. Verify the Azure archive storage repository created.

052622 1821 HowtoaddMic40 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

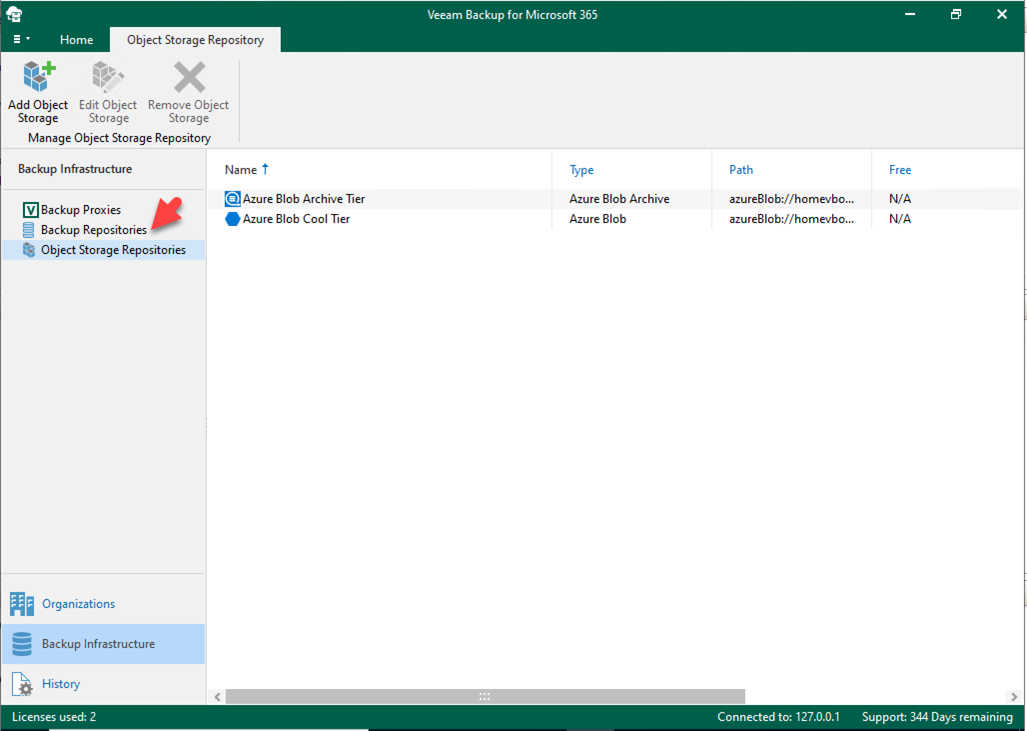

38. On the BACKUP INFRASTRUCTURE page, select Backup Repositories.

052622 1821 HowtoaddMic41 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

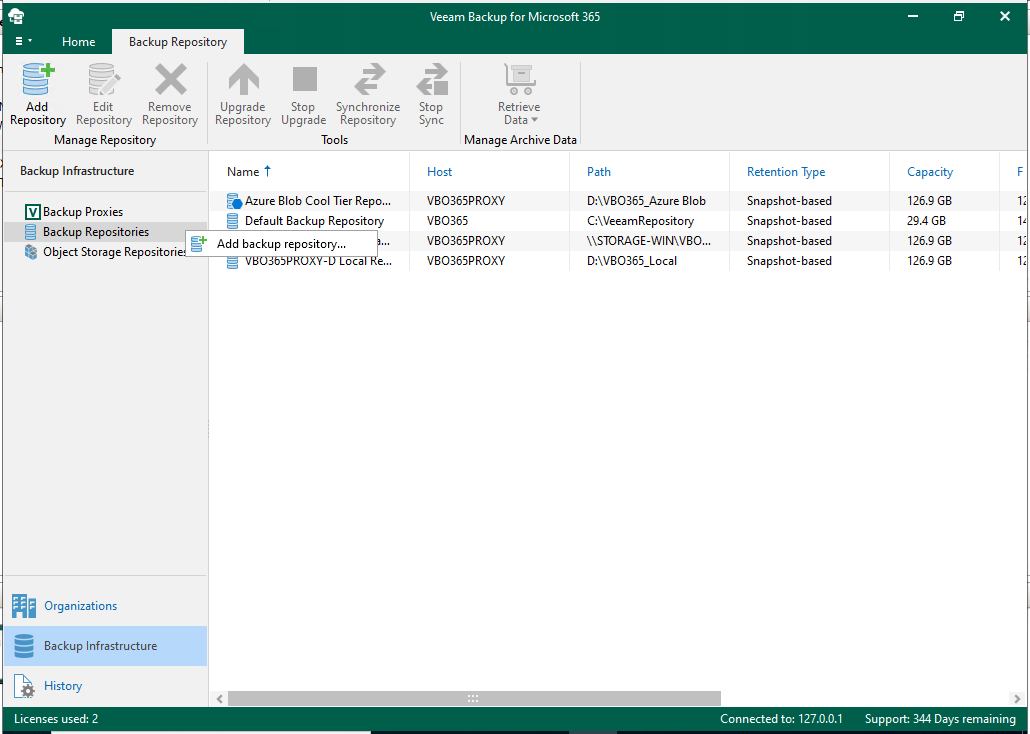

39. Right-click Backup Repositories, and select Add backup repository.

052622 1821 HowtoaddMic42 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

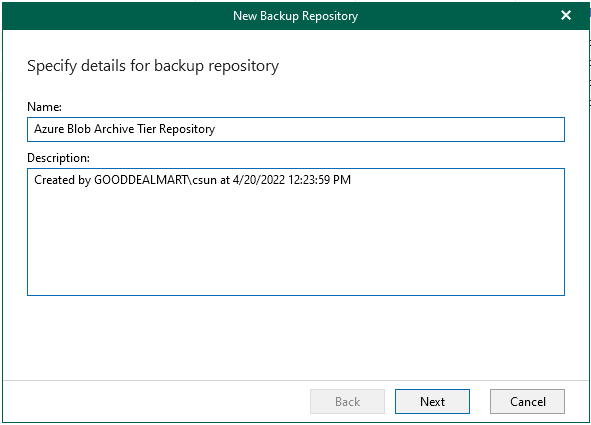

40. On the Specify details for backup repository page, type Azure Blob Archive Tier Repository as repository Name and click Next.

052622 1821 HowtoaddMic43 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

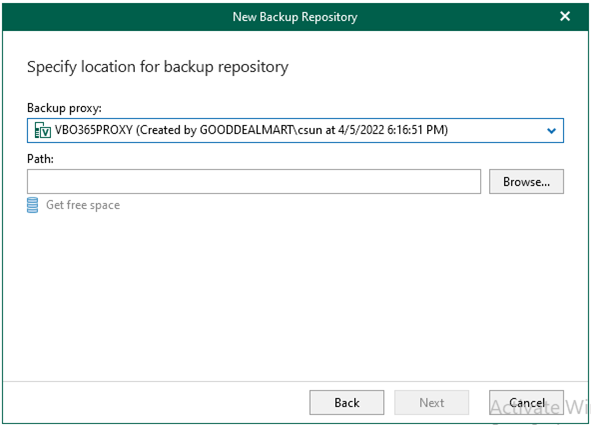

41. On the Specify location for backup repository page, select your Backup proxy server and click Browse for Path.

052622 1821 HowtoaddMic44 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

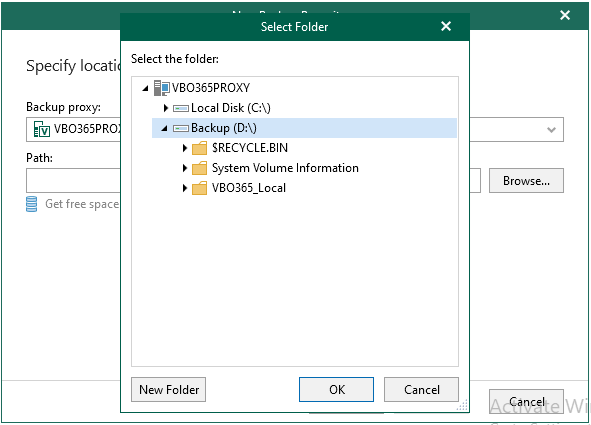

42. On the select folder page, click New folder.

052622 1821 HowtoaddMic45 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

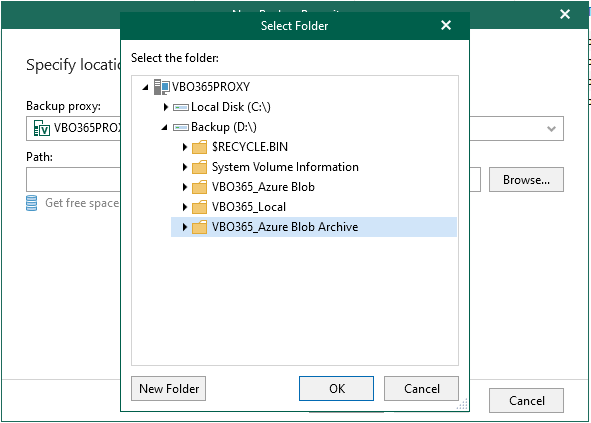

43. Type your folder name and click OK.

052622 1821 HowtoaddMic46 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

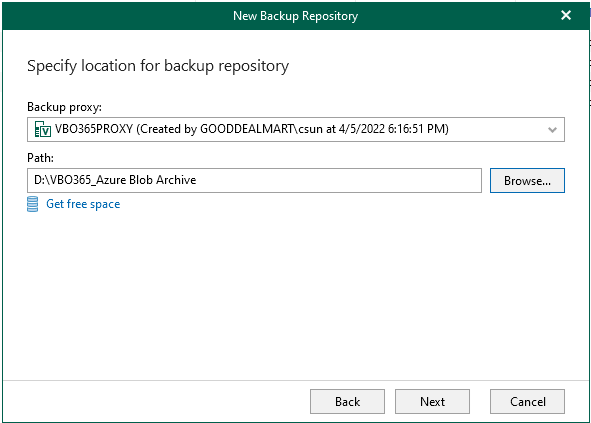

44. On the Specify location for backup repository page, click Get free space.

052622 1821 HowtoaddMic47 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

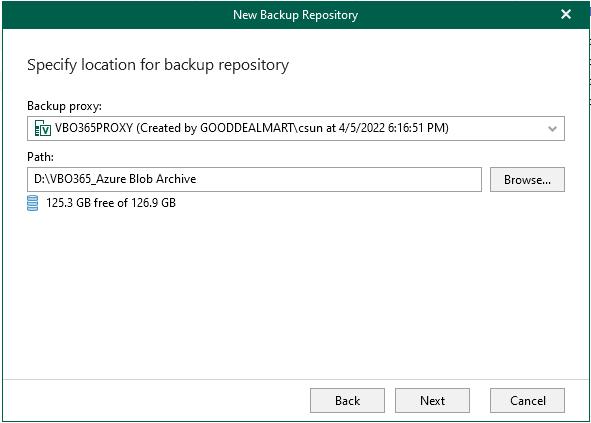

45. On the Specify location for the backup repository page, click Next.

052622 1821 HowtoaddMic48 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

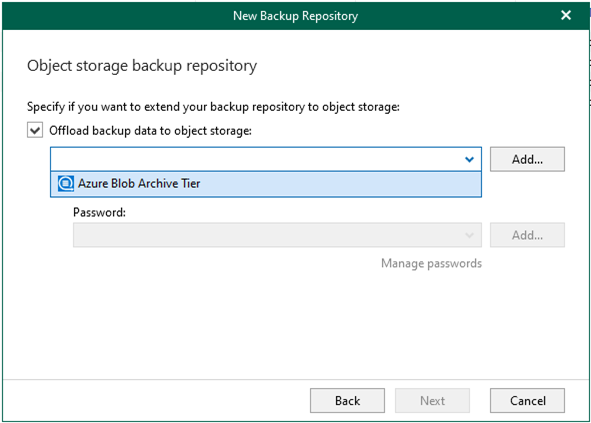

46. On the Specify if you want to extend your backup repository to the object storage page, select offload backup data to object storage and select Azure Blob Archive Tier (you just created it).

052622 1821 HowtoaddMic49 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

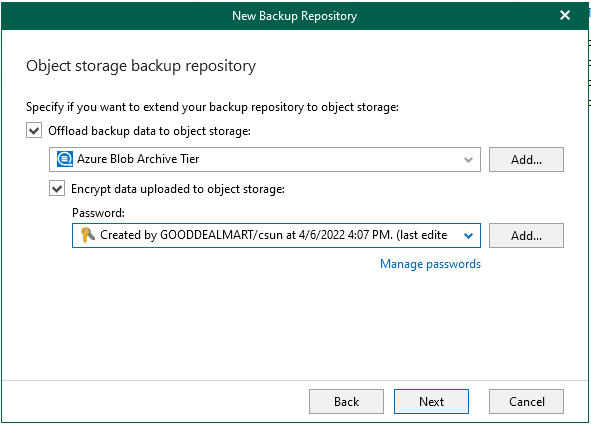

47. Select Encrypt data uploaded to object storage, you can choose the existing Password or click Add for Password.

48. Click Next on the Object storage backup repository page.

052622 1821 HowtoaddMic50 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

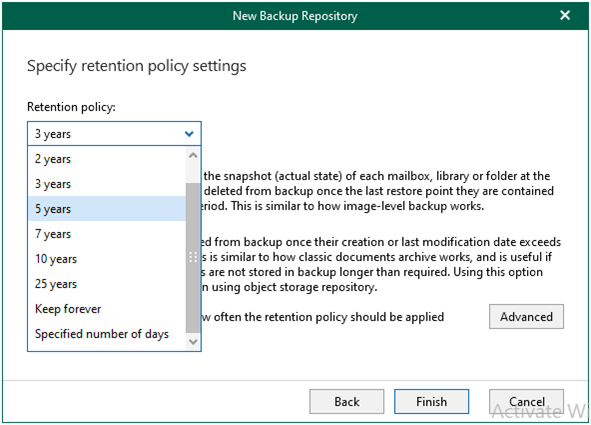

49. On the Specify retention policy settings page, from the Retention policy drop-down list, choose how long your data should be stored in a backup repository.

052622 1821 HowtoaddMic51 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

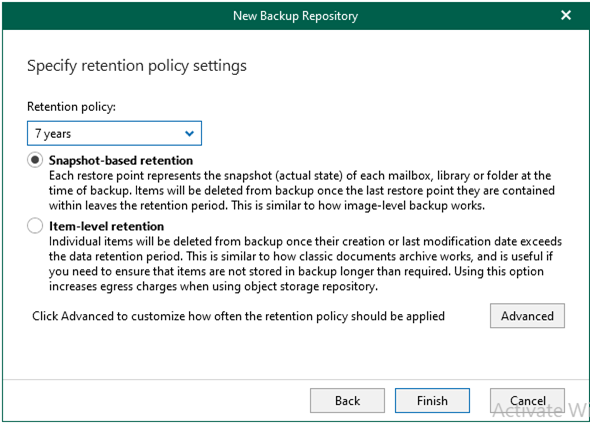

50. On the Specify retention policy settings page, select retention type, and click Advance. There are two types as below.

•Snapshot-based retention: Select this type if you want to keep an item until the restore point of an item’s version is within the retention coverage.

•Item-level retention: Select this type if you want to keep an item until its creation time or last modification time is within the retention coverage.

052622 1821 HowtoaddMic52 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

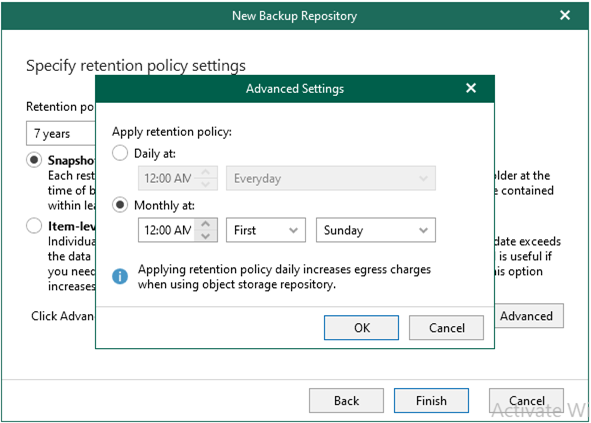

51. On the Apply retention policy page, select retention policy, and click OK. There are two policies as below.

•Daily at: Select this option if you want a retention policy to be applied daily and choose the time and day.

•Monthly at: Select this option if you want a retention policy to be applied every month and choose the time and day which can be the first, second, third, fourth or even the last one in the month.

052622 1821 HowtoaddMic53 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

52. On the Specify retention policy settings page, click Finish.

052622 1821 HowtoaddMic54 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

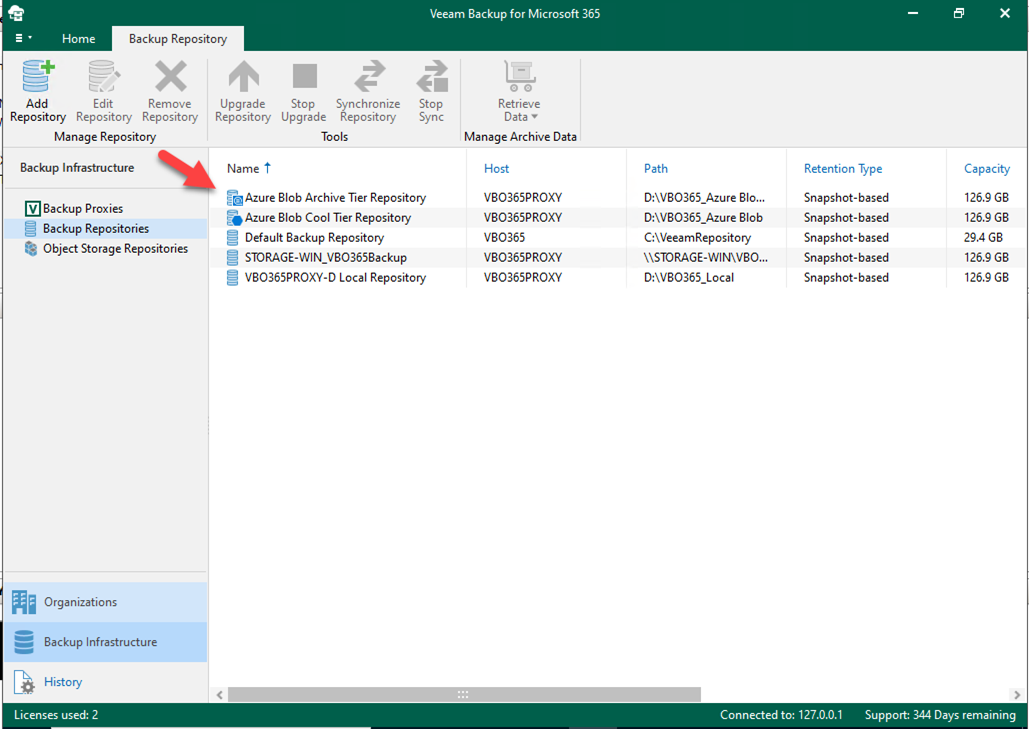

53. Verify the new Azure Blob Archive Tier Repository had been added.

052622 1821 HowtoaddMic55 - How to add Microsoft Azure Archive Storage Repository without Azure archiver appliance at Veeam Backup for Microsoft 365

Hope you enjoy this post.
