Suppose you plan to use backup infrastructure components and servers that you plan to use for various types of restore operations. In that case, you must add the Linux servers to the backup infrastructure.

Suppose you plan to use backup infrastructure components and servers that you plan to use for various types of restore operations. In that case, you must add the Linux servers to the backup infrastructure.

1. Log in to the Veeam Backup and replication manager server.

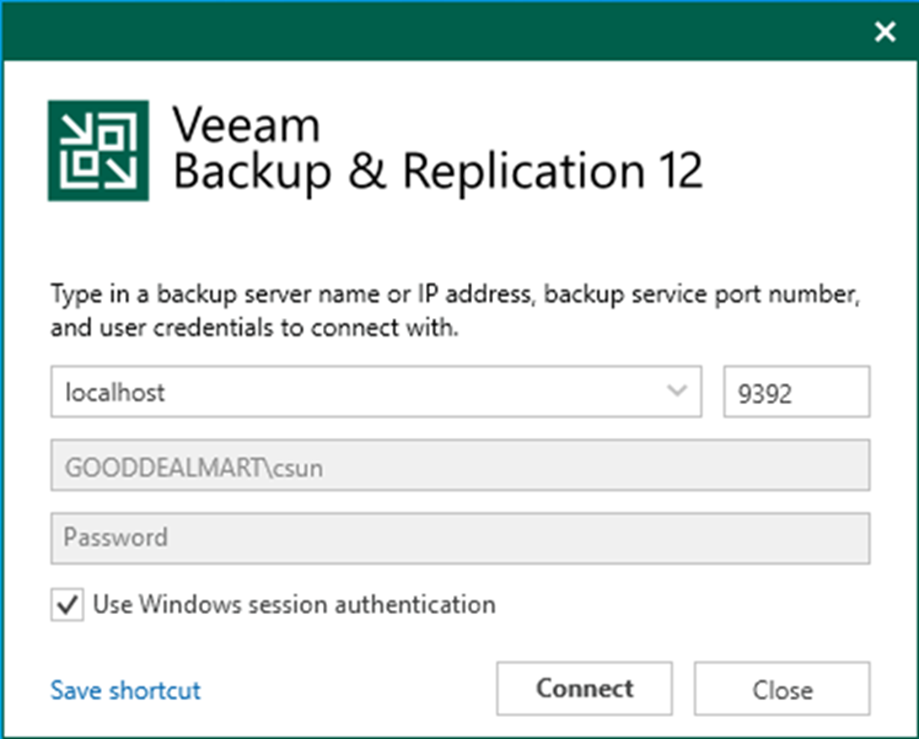

2. Open the Veeam Backup & Replication Console and click Connect.

082323 1859 HowtoAddLin1 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

3. On the Home page, select Backup Infrastructure.

4. On the Backup Infrastructure page, select Managed Servers.

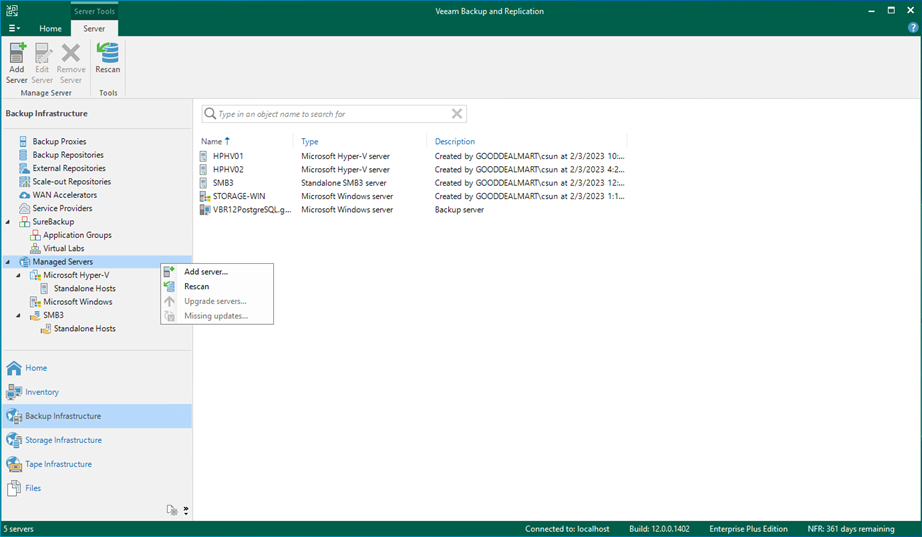

5. Right-click Managed Servers and select Add Server.

082323 1859 HowtoAddLin2 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

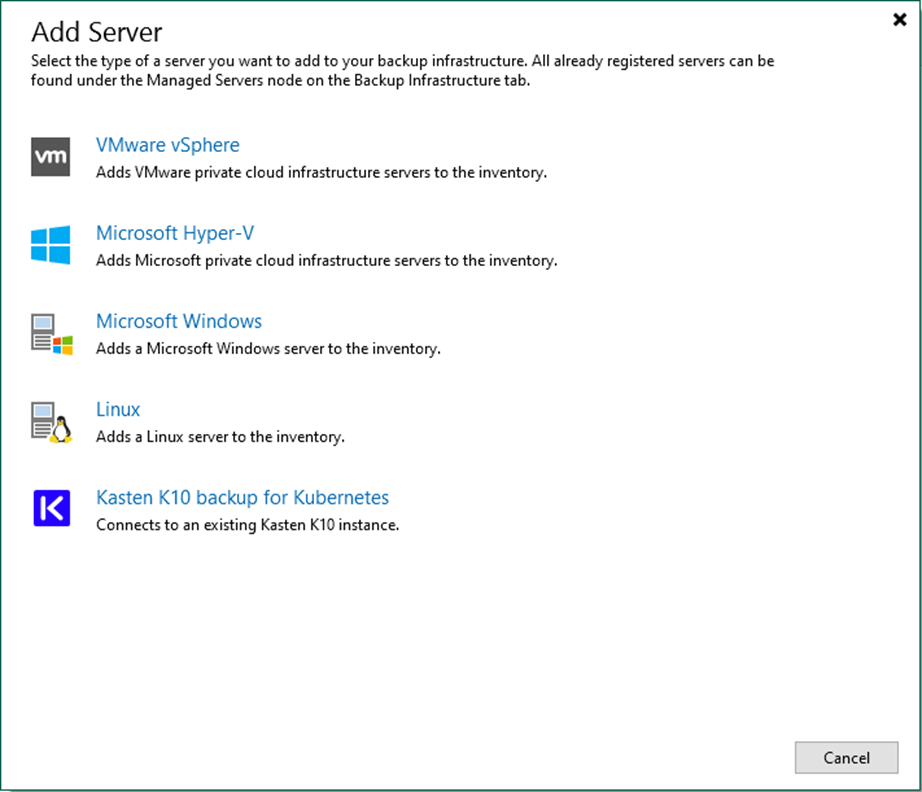

6. Select Linux on the Add Server page.

082323 1859 HowtoAddLin3 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

7. Enter the Linux server’s full DNS name or IP address on the Name page.

8. Give a brief description in the Description field for future reference and click Next.

082323 1859 HowtoAddLin4 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

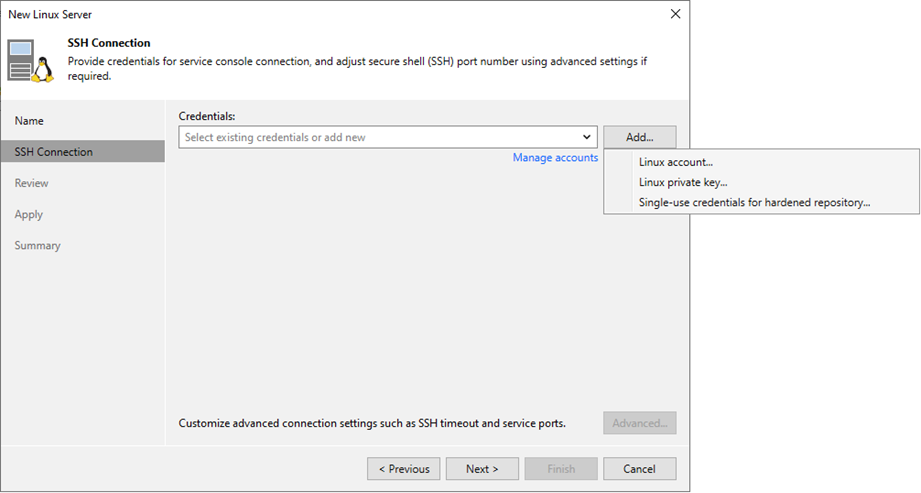

9. Click Add on the SSH Connection page and select Single-use credential for the hardened repository.

082323 1859 HowtoAddLin5 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

Note:

These credentials are not saved by Veeam Backup & Replication. They are only used to install Veeam Data Mover on the server. These credentials reduce the rights of the Veeam Data Mover. Single-use or temporary credentials are recommended options for a hardened repository.

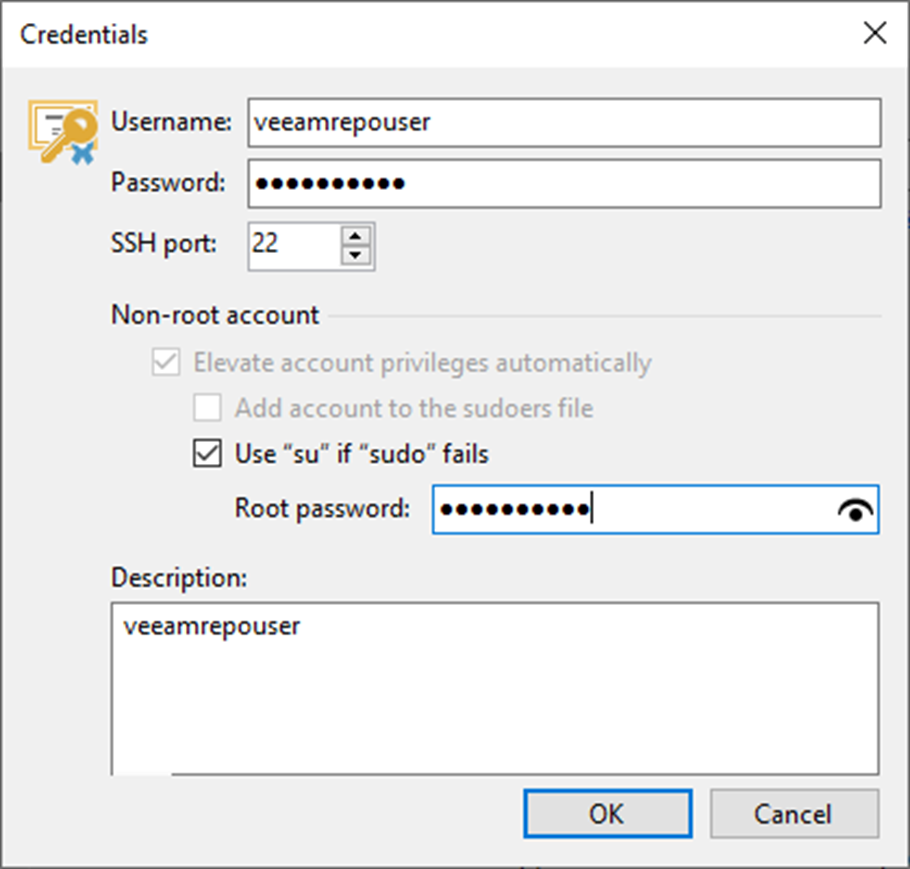

10. On the Credentials page, Enter a username.

11. Enter a username in the Username field.

12. Enter a password in the Password field.

13. Enter 22 in the SSH port field.

14. Give a brief description in the Description field for future reference and click OK.

082323 1859 HowtoAddLin6 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

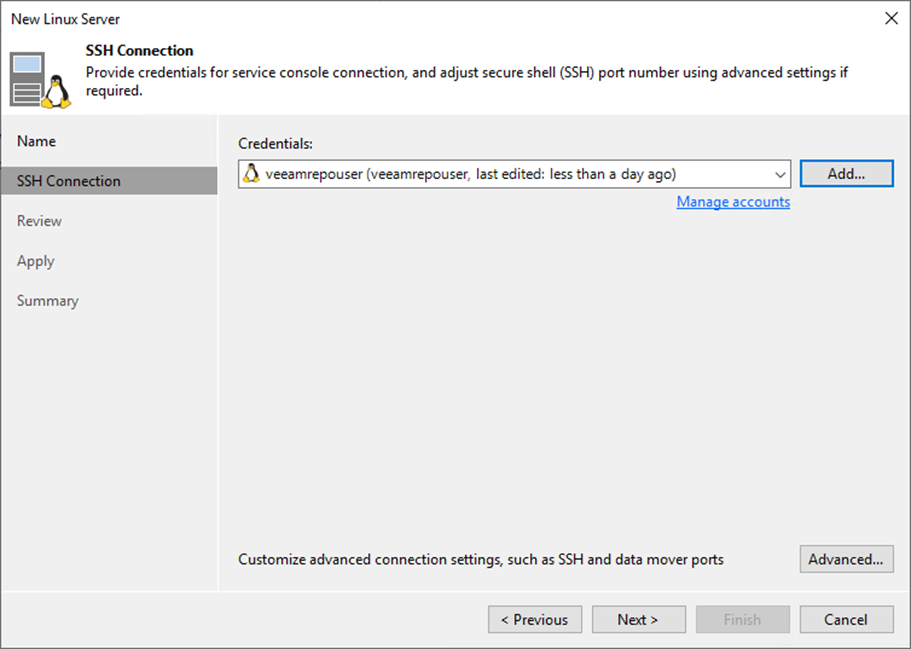

15. On the SSH Connection page, click Advanced.

082323 1859 HowtoAddLin7 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

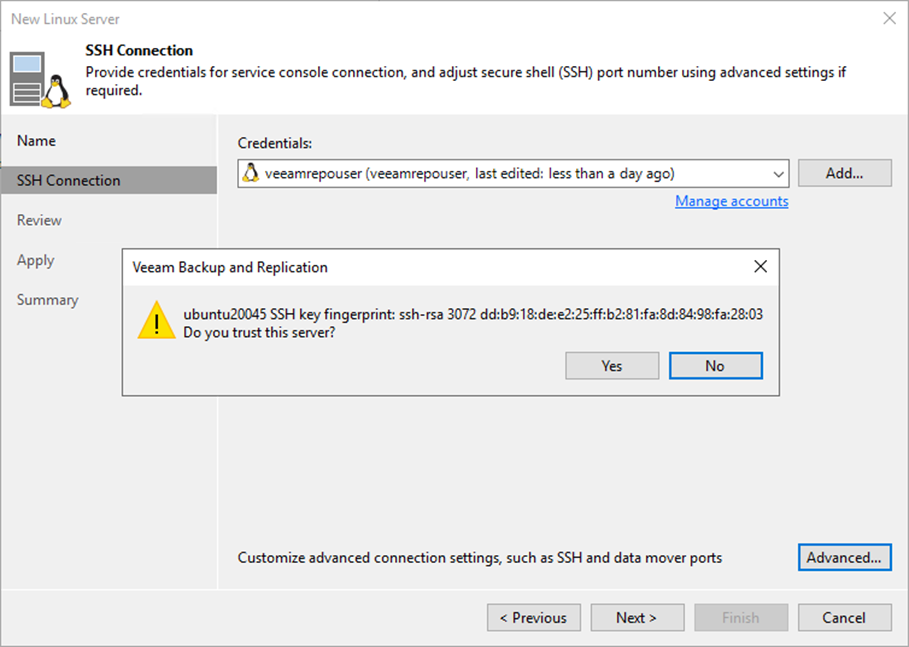

16. Select Yes on the trust warning message page.

082323 1859 HowtoAddLin8 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

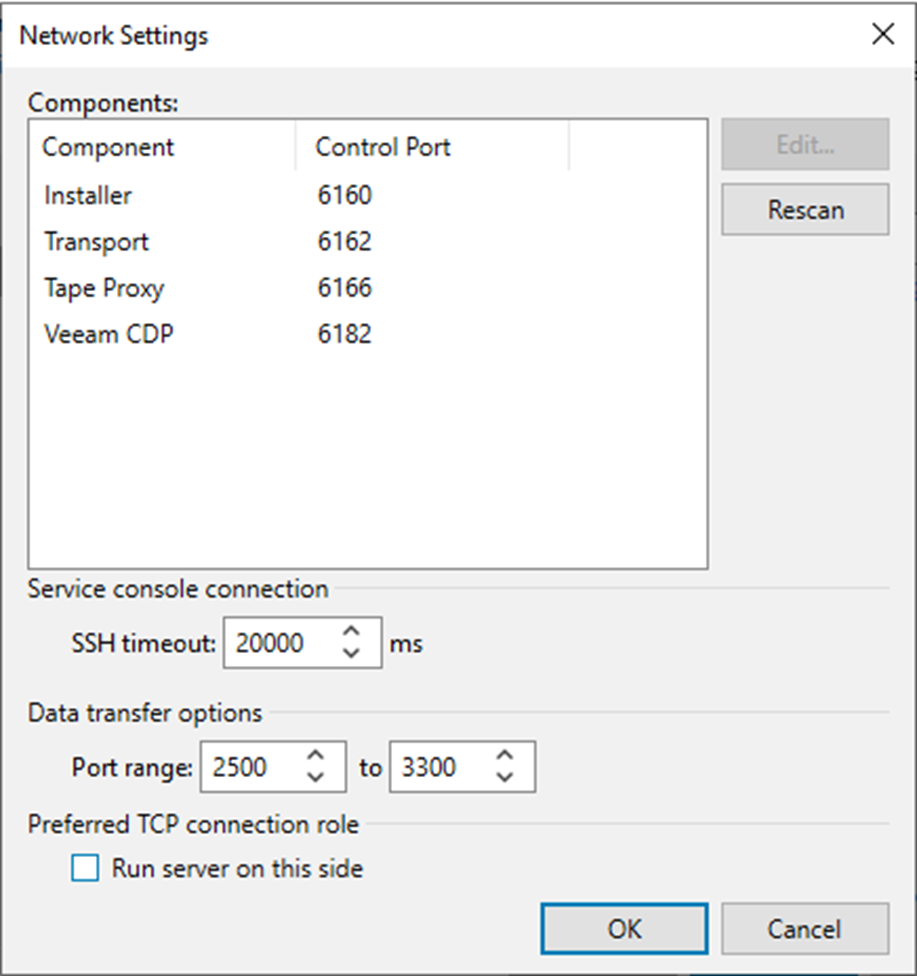

17. If necessary, change the network ports used by Veeam Backup & Replication components on the Network Settings page.

18. In the Service console connection section, enter an SSH timeout. The default timeout is set to 20000 ms.

19. Configure connection settings for file copy operations in the Network Settings window’s Data transfer options section. Provide a set of ports for transmission channels between the source and target hosts (one port per task).

20. Select the Run server on this side checkbox in the Preferred TCP connection role section. The outside client cannot connect to the server on the NAT network in the NAT scenario. As a result, services that require external connection initiation may be disrupted.

21. Click OK.

082323 1859 HowtoAddLin9 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

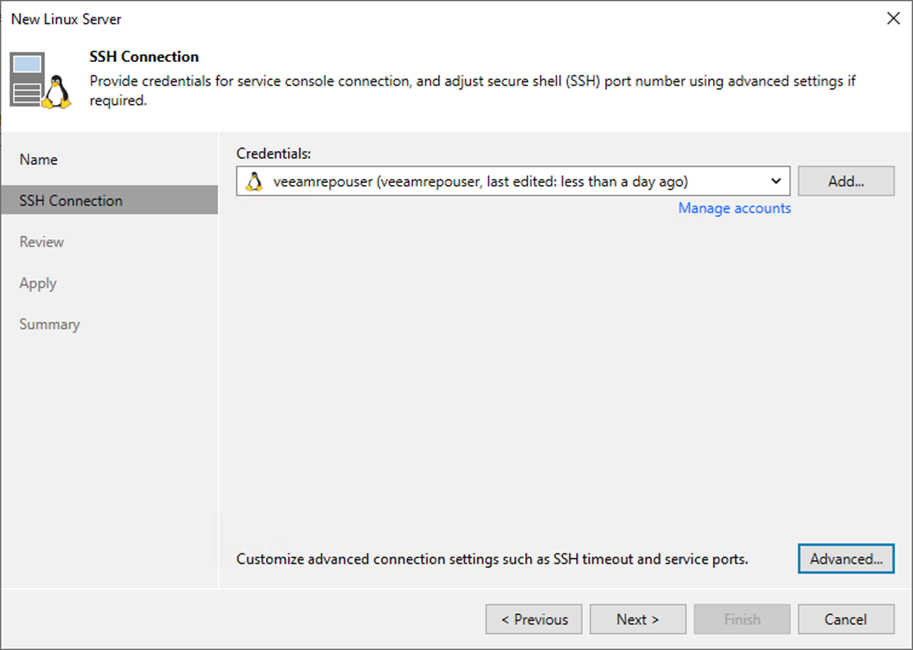

22. Click Next on the SSH Connection page.

082323 1859 HowtoAddLin10 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

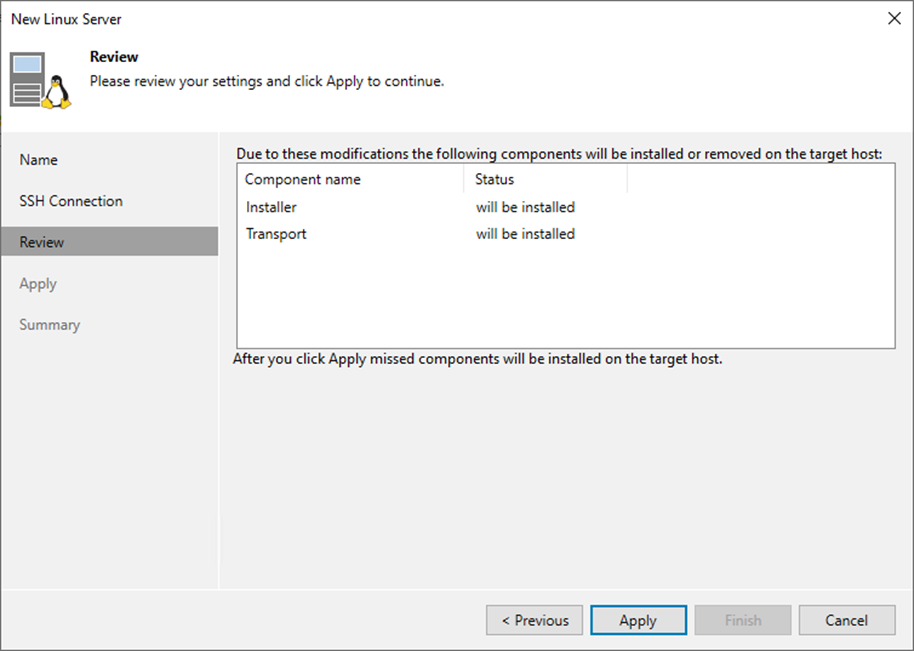

23. Click Apply on the Review page.

082323 1859 HowtoAddLin11 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

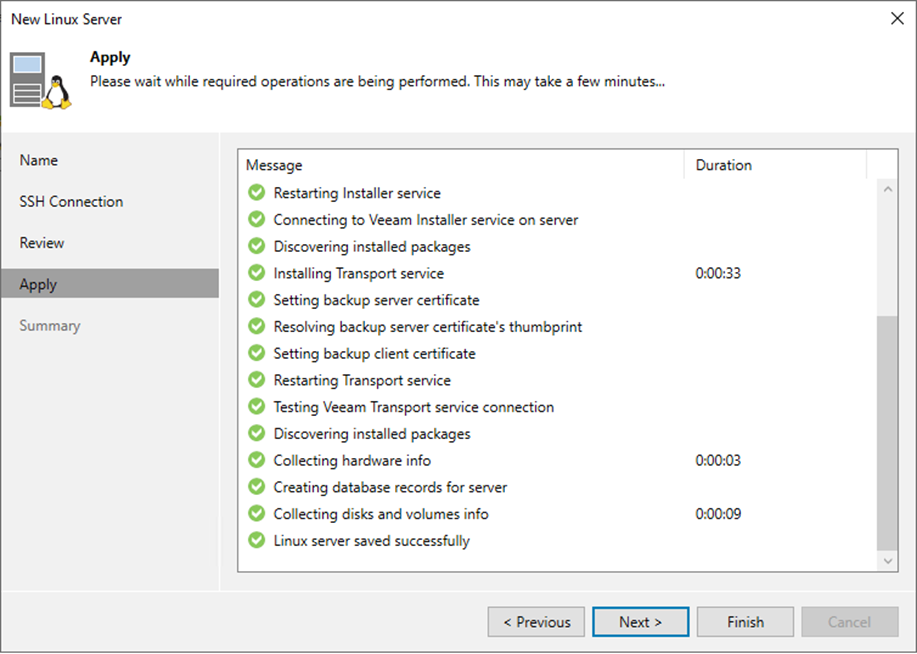

24. Click Next on the Apply page.

082323 1859 HowtoAddLin12 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

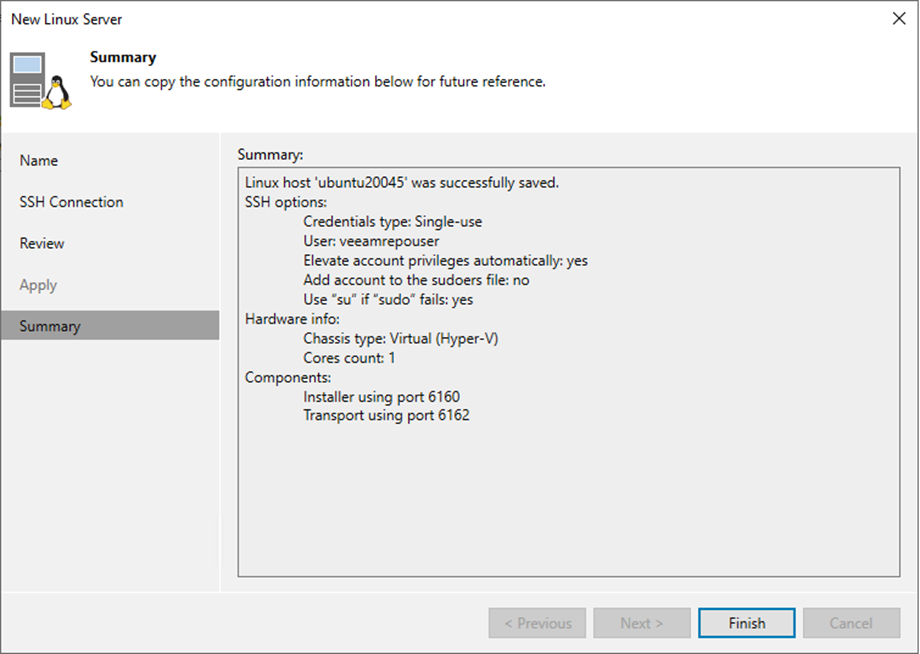

25. Click Finish on the Summary page.

082323 1859 HowtoAddLin13 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12

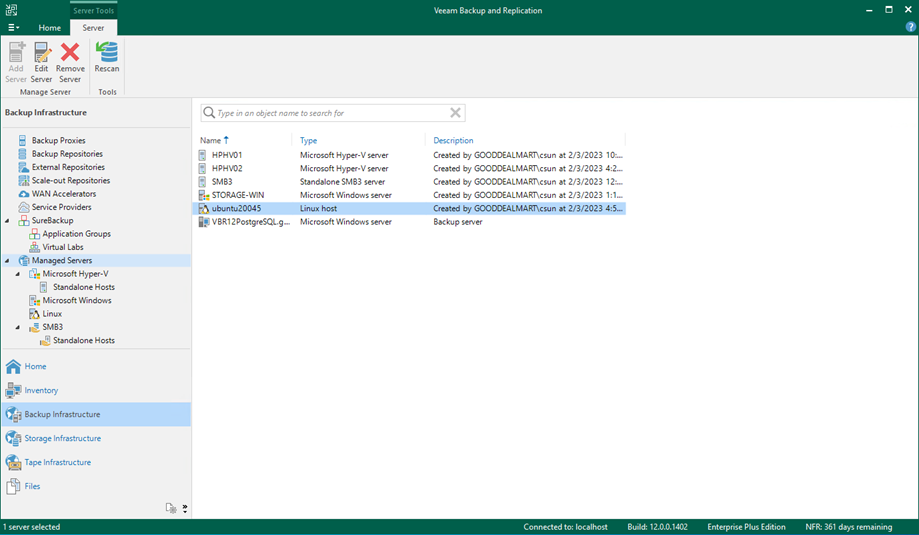

26. Ensure the new Linux server is added.

082323 1859 HowtoAddLin14 - How to Add Linux Server for a hardened repository to Veeam Backup and Replication v12
